| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(180*120*120cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Filling Speed: | 3000*6 BPH | Pump Filling Range: | 5-50ml Piston Pump |
|---|---|---|---|
| Filling Accuracy: | ±0.8% | Size: | Customized |
| Automatic Grade: | Automatic | Driven Type: | Electric And Pneumatic |
| Hopper: | Yes | Control Mode: | On Customer's Machine Signal |
| Material Contact Part: | SS316L And Ceramic | ||
| Highlight: | 50ml Paste Filling Machine,6 Channels Paste Filling Machine,High Precision Paste Filling Machine |
||
6 ch6 Channels 5-50ml Paste Cream Filling Machine System With High Precision Filling Function For The Blister Packing Machineeannels 5-50ml paste cream filling machine system with high precision filling function for the blister packing machin
Characteristic of 6 channels 5-50ml paste cream filling machine system
XQQG adopts a horizontal pneumatic filling machine design, which is specially designed for supporting vertical packaging machines. The filling speed is fast and the range is wide. The number of filling pumps can be designed according to customer requirements. The filling part uses a high-precision ceramic piston metering pump to ensure filling accuracy.
Q-R Series Ceramic Pump Integration is designed for medium-to-high viscosity liquids, creams, and homogeneous materials (1000-100,000 CPS), as well as quantitative infusion of materials containing certain particles. This pump has high metering accuracy and repeatability, with precision better than ±0.8%. The metal part in contact with the material uses 316L stainless steel for better corrosion resistance. It adopts a quick-disassembly connection method for easy disassembly, cleaning, and meets the cleaning requirements of food hygiene standards.
Technical parameters of 6 channels 5-50ml paste cream filling machine system
| Model | XQQG-12 | XQQG-25 | XQQG-50 | XQQG-100 | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.25% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of Host Machine | Customized | ||||
| Power | AC 220V 50-60Hz 500W | ||||
| Air pressure | 0.4-0.6Mpa | ||||

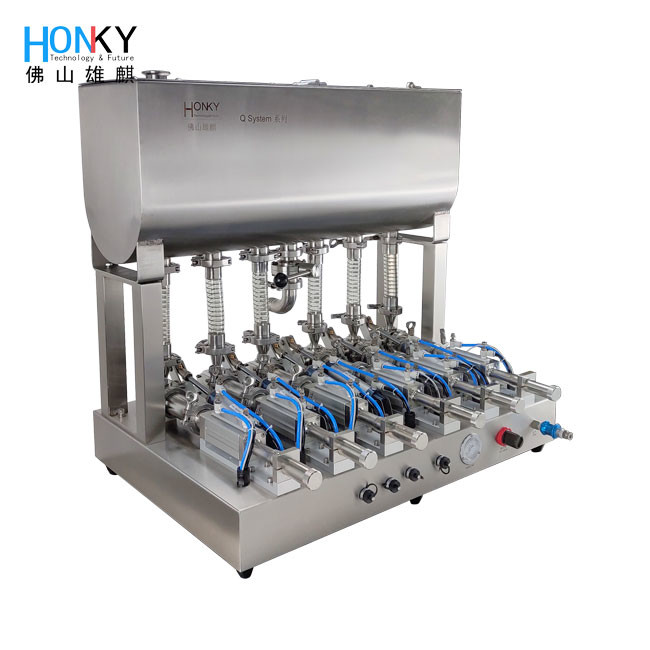

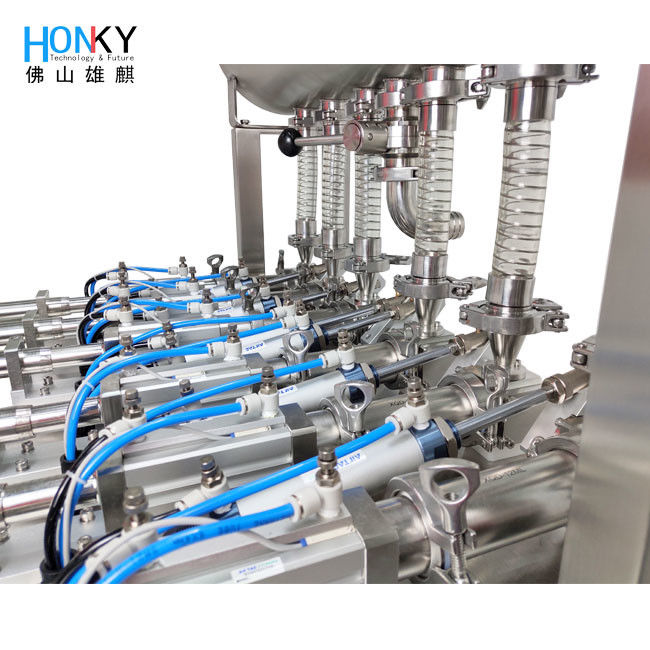

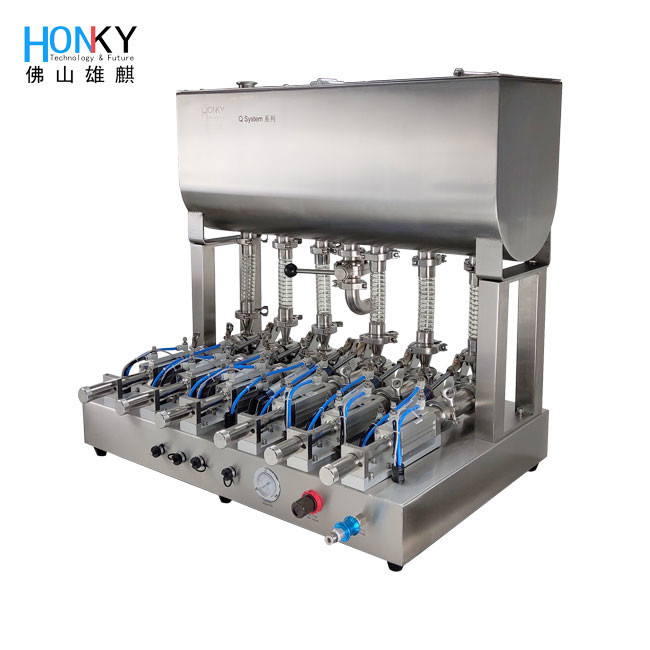

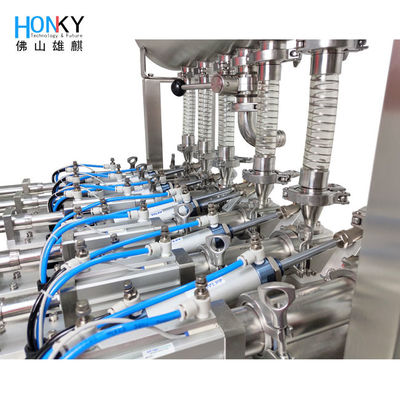

Product display of 6 channels 5-50ml paste cream filling machine system
This equipment has been tested to meet the requirements of GMP certification.

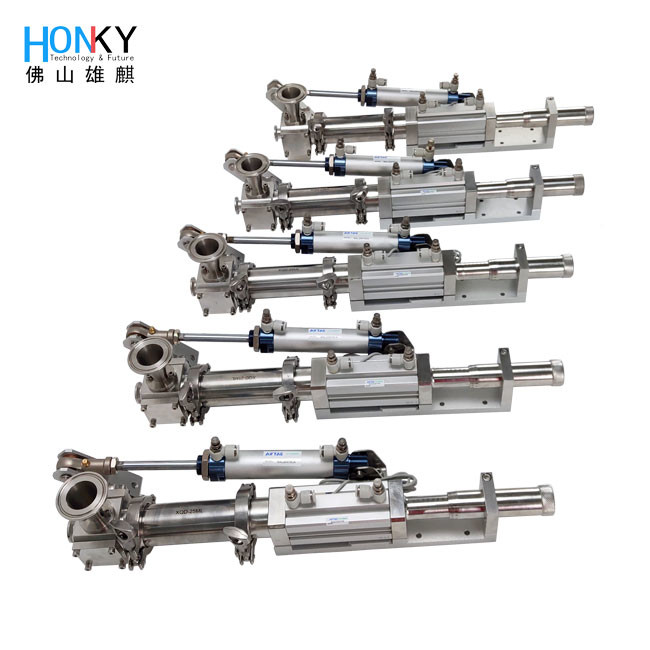

Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
