Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQ-GFL-2-1000 |
| Minimum Order Quantity: | 1 |
| Price: | USD 40000-41000 PER SET |
| Packaging Details: | Wooden packing |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Set per Month |
| Pump Range: | 2-25 Ml | Air Pressure Range: | 0.5-0.8 Mpa |
|---|---|---|---|
| Packing Speed: | 55-60 Bottle Per Minute | Pump Choosing: | XQX2 Series Ceramic Pump |
| Power Range: | 220V 50Hz 3KW | Certification: | CE And ROHS |
| Machine Size: | 200*200*180cm | Main Material: | Stainless Steel And Aluminum Alloy |
| Mainly For: | Bio-reagent Filling | ||
| Highlight: | Sampling Tube Filling And Capping Machine,10ml Virus Filling And Capping Machine,Bio Reagent Full Automatic Filling Machine |
||
Full Automatic 10ml Virus Sampling Tube Filling And Capping Machine With The Speed Of 60BPM For Bio Reagent Lqiuid PackFull Automatic 10ml Virus Sampling Tube Filling And Capping Machine With The Speed Of 60BPM For Bio Reagent Lqiuid Pack
Feature of Full Automatic 10ml Virus Sampling Tube Filling And Capping Machine
1 Small size, compact structure, and reasonable and complete layout of functional modules to make the machine convenient for maintenance;
2 the two major functions of filling and capping are in-line production, continuous operation without manual assistance;
3 the operation of the machine can be done by only one person(including feeding and receiving), which can greatly save the cost of employment and one-time investment in equipment
A. The working principle of filling:
The main engine of this machine runs as the astrolabe to complete the circular intermittent movement, which is the main astrolabe for filling and capping. The ceramic pump is used for filling, double-head pre-capping mechanism, and double-head capping mechanism. Bottle loading adopts automatic bottle unscrambler; it is automatically picked up by the cap-removing manipulator and sent to the capping station. After capping completed, it is connected to the labeling area through the transition star plate, and then the finished product is collected.
B. Lid and cover work station:
The cap loading adopts shake pan. The vibration hopper is caused by the vibration of the electromagnet in the oscillator hopper to make the cap be ordered and the machine hand cap the cap to load on the bottle to finish the cap loading action.
Parameter of Full Automatic 10ml Virus Sampling Tube Filling And Capping Machine
| Speed | 3000-3600 BPH(2ml Cryo tube) |
| Filling range | 0.2-2.9ml |
| Accuray | ±0.5% |
| Power | Roughly 3.5KW 220V 50Hz |
| Air | 0.6~0.8Mpa Air consume:about 1m3/h |
| Size | According to the actual design |

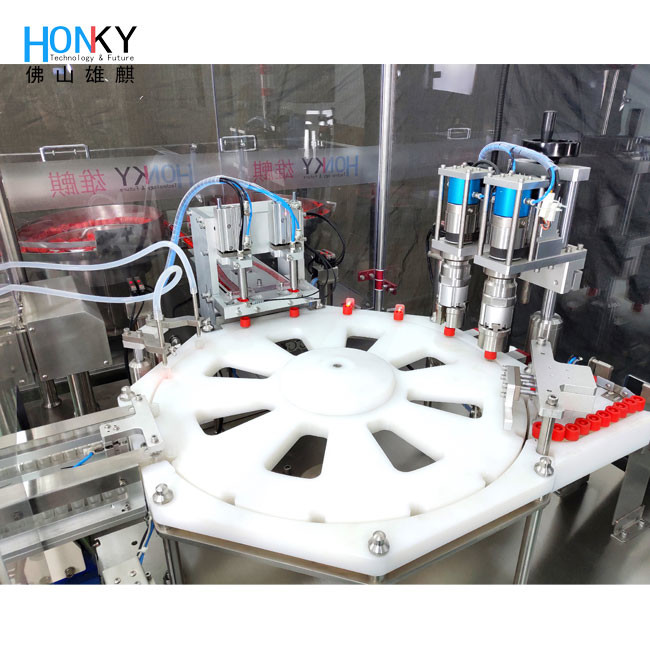

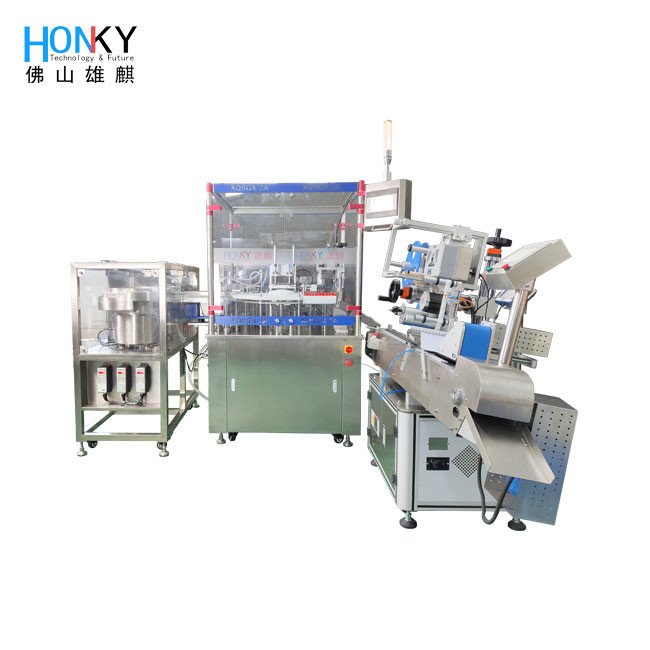

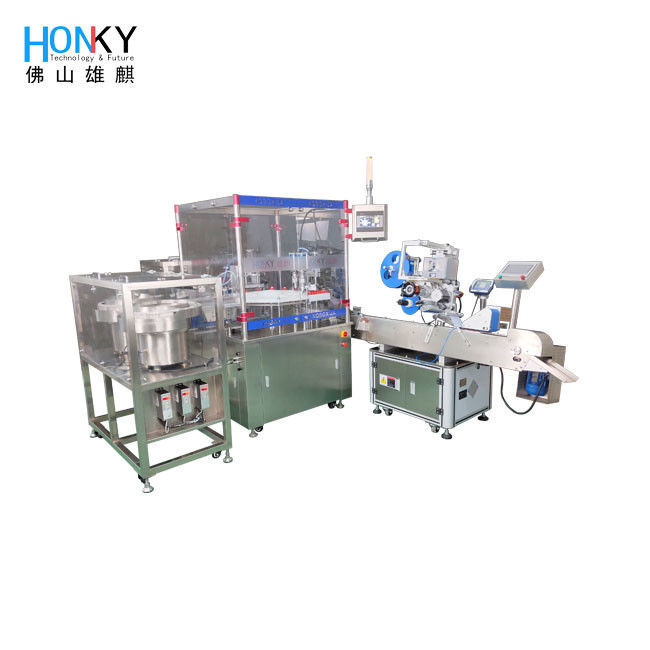

Machine display of Full Automatic 10ml Virus Sampling Tube Filling And Capping Machine
Service of HonkyTech:
Pre-sales:
According to client requirements, supply reasonable mаsk machine sketch map, quotation and operation video for client ref first.
During Sales:
1) Depends on client objects, made reasonable reform based on the standard machine.
2) 24-hour uninterrupted test before machine delivery, make sure machine operation stable.
3) Execute SGS certification for the equipment and materials used in the production process requirement and specification strictly.
After-sale:
1. Provide complete teaching videos and materials, easy to operate and simple to maintain.
2. Experienced engineers provide online or computer guidance.
3. If in South Korea, we have a professional technical team that can provide door-to-door service.
4. Guarantees all equipment (except human factors) within one year, lifetime maintenance service.
5. After machine used for several years, SKILT promise to provide detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extending machine service life for more than 3-4 years.
