High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling

High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling

Desktop Small Liquid Filling Machine

60PCS/MIN Liquid Filling Machine

SS316L Desktop Filling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQX2 system

Contact Us
Request A Quote
High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling
High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling
Product Details
Filling Efficiency:
60 PCS/MIN
Filling Error:
±0.61%
Machien Dimension:
350*350*350 Mm
Weight:
18 KGS
Pump Size:
1-10ml XQX2 SERIES Pump
Application:
Medical,Chemical,Cosmetic
Highlight:

Desktop Small Liquid Filling Machine

,

60PCS/MIN Liquid Filling Machine

,

SS316L Desktop Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(70*70*70 cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling online video

Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling

Get Best Price
Good price Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction online video

Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction

Get Best Price
Good price High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction online video

High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction

Get Best Price
Good price 1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles online video

1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles

Get Best Price
Contact Us
Contact Now
Product Description

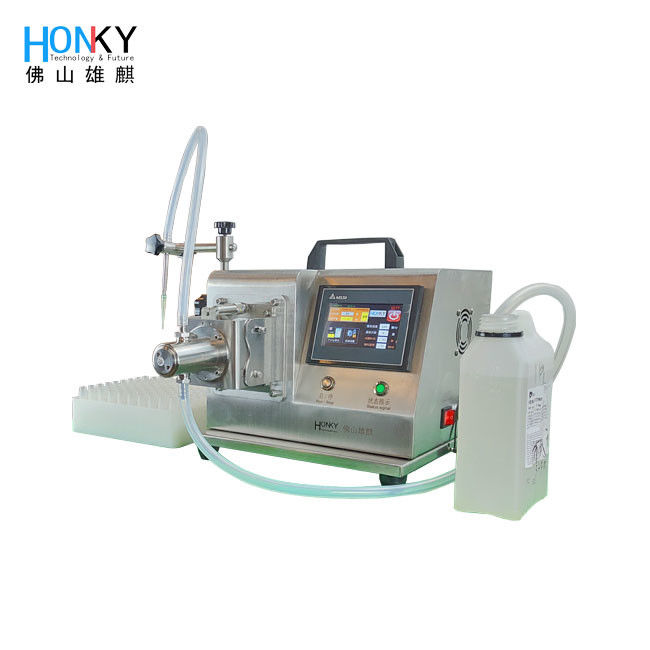

High Precision Desktop Small Volume Liquid Filling Machine
Desktop portable small volume liquid filling machine with high precision designed specifically for small factory operations and laboratory environments.
Product Characteristics
The XQX2 SYSTEM is a lab-grade desktop bio reagent tube filling machine featuring a manual handheld design, specifically engineered for filling sample bottles or tubes in the small volume chemical filling industry. With a filling speed of up to 100 PCS per minute, the system incorporates a high-precision ceramic pump that ensures accurate and consistent filling results. Operating on a self-developed user-friendly system, the machine offers straightforward interface controls and can be seamlessly integrated with the honkyTech lab-type capping and recapping machine to enhance overall testing process efficiency.
Technical Specifications
Item No. -3 -6 -9 -12 -15 -18 -21 -24 -27
Pump Material Ceramic parts: high purity alumina (Al2O3), zirconia (ZrO2), silicon carbide (SiC), etc.
Metal part: 316L stainless steel
Filling Range 4-80ul 10-140ul 20-240ul 50-700ul 0.2-1.5ml 0.2-2.9ml 0.6-6ml 1-12ml 2-25ml
Bore Diameter Φ4 Φ5 Φ7 Φ10 Φ13 Φ15 Φ22 Φ25 Φ36
RPM 450 | 350 | 300 | 250 | 200
Accuracy Better than ±0.5%
Motor Type 2 phase 4 line No.42 2 phase 4 line No.57 2 phase 4 line No.86
Power Supply AC220V 50/60Hz (or 110V)
Power Rate 75w 150w 240w
Product Features

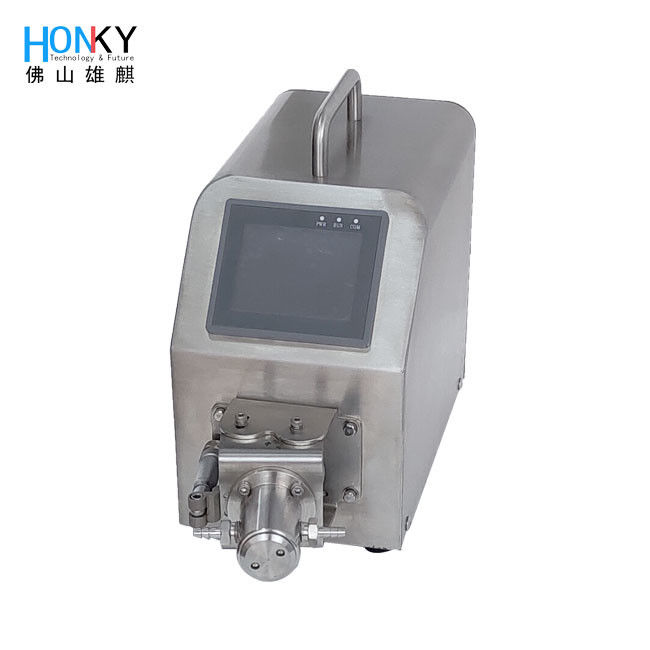

High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling 0
Front showing, Easy operating mode. It can be worked with pedal or works automatically.

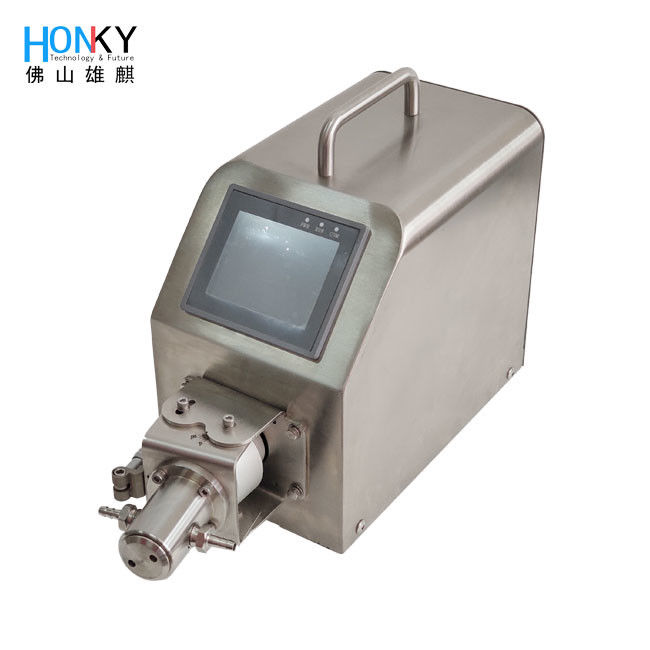

High Precision Desktop Filling Machine with Ceramic Pump for 60 PCS/MIN Small Volume Liquid Filling 1
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
Why Choose HonkyTech?
Rich Experience
Skilled engineering staff with many years of experience in the precision-filling industry.
Quality Assurance
Strict quality control system with CE approval and ROHS Certificate.
In Stock Availability
Comprehensive inventory of ceramic pump parts, electronic components, and filling machine spare parts for immediate delivery.
Mature Technology
Numerous in-house service technicians and engineers ready to provide technical support.
