| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Mode: | Air Only | Warranty: | 13 Months |
|---|---|---|---|
| Filling Speed: | 60 Times Per Minute MAX | Air Range: | 0.41-0.6Mpa |
| Application Area: | Food, MEDICAL, Chemical, Machinery & Hardware, Comestic | Filling Range: | 2-25 Ml |
| Highlight: | 25ml Liquid Ceramic Filling Pump,Single Way Valve Ceramic Filling Pump,Ceramic Plunger Filling Pump |
||
2-25ml Single Way Valve Liquid Ceramic Filling Pump With High Precision Ceramic Plunger And Piston For Liquid Filling
Parameter of Single-way valve liquid ceramic filling pump
| Model | XQQ-12s | XQQ-25s | XQQ-50s | XQQ-100s | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.5% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of the pump | 500*100*100 mm | ||||
| Power | AC 220V 50-60Hz 50W | ||||
| Air pressure | 0.4-0.6Mpa | ||||
The ceramic plunger pneumatic pump assembly incorporates a precision ceramic plunger design, tailored to handle the unique challenges of medium and high viscosity liquids, creams, and lotions (ranging from 1000 to 100,000 CPS) as well as materials containing specific particles. The use of ceramic material ensures durability and resistance to wear, even under continuous and demanding operation.
The precision ceramic plunger design allows for precise control over the infusion process, ensuring accurate dispensing of liquids and materials. This is crucial in industries such as pharmaceuticals, cosmetics, and food processing, where precise dosing is essential for product quality and consistency.
Furthermore, the ceramic plunger's material properties make it compatible with a wide range of media, including those that are chemically reactive or abrasive. This versatility ensures that the pump assembly can be used across multiple applications and industries, without the need for frequent replacements or modifications.
In summary, the ceramic plunger pneumatic pump assembly offers precision, durability, and versatility, making it an ideal choice for handling medium and high viscosity liquids, creams, lotions, and materials containing particles.
Features of Single-way valve liquid ceramic filling pump
1. The tail screw fine adjustment structure makes the pump have high metering accuracy and repeat consistency, and the accuracy is better than ±0.5%.
2. The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly and cleaning, and meets the cleaning requirements of food hygiene standards.
Industry application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish and other medium and high viscosity homogeneous liquid materials.

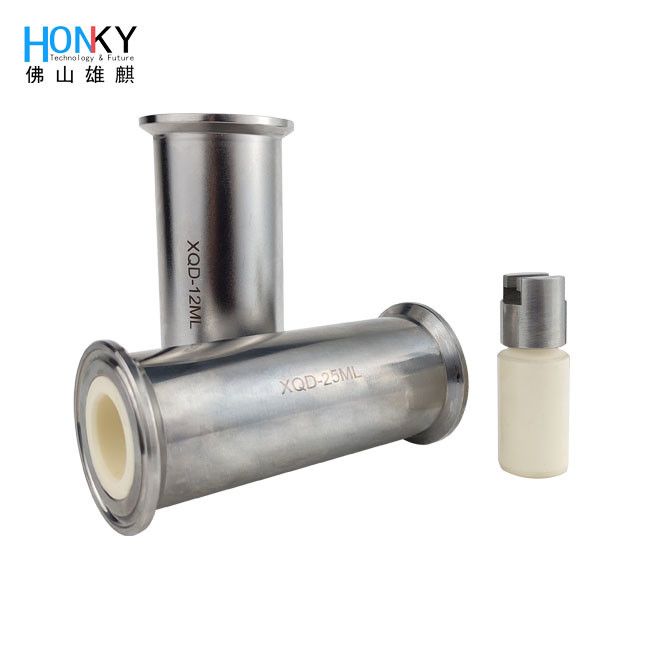

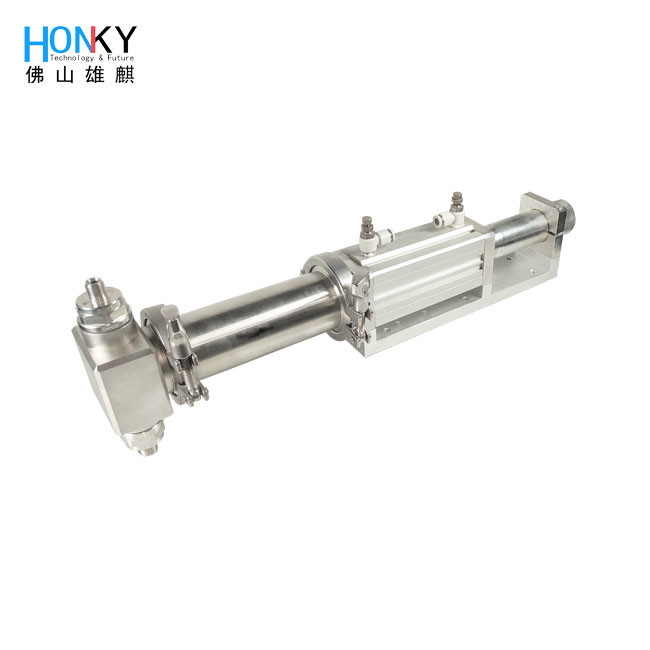

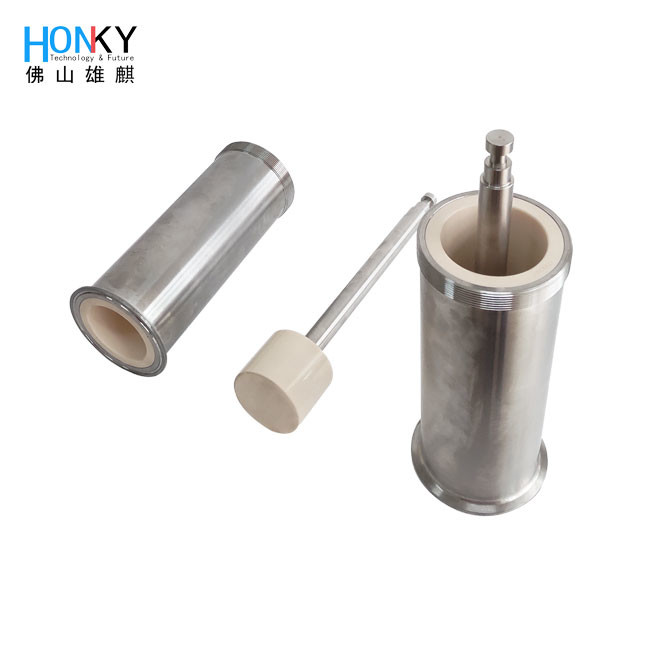

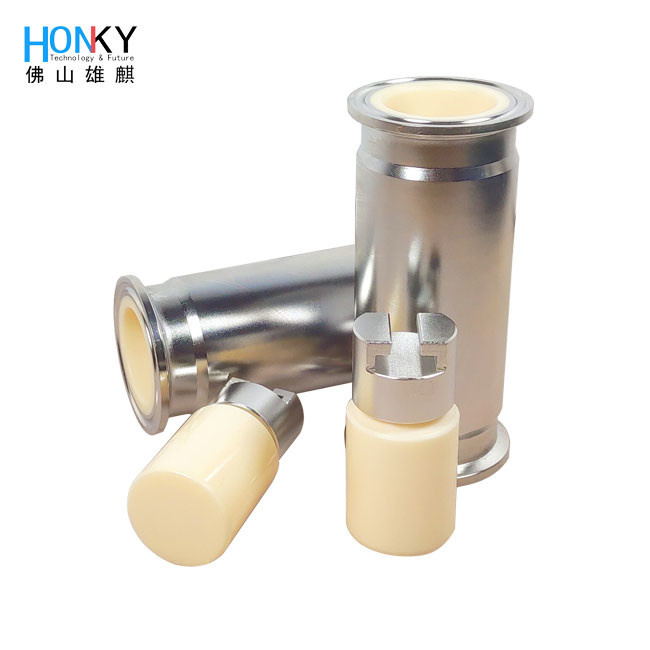

Product display of Single-way valve liquid ceramic filling pump
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
