Desktop Cream Paste Filling Machine With Heating Hopper For Cream Paste Material Filling For Whiten Cream Filling
Characteristics of Desktop Cream Paste Filling Machine
The XQQG pneumatic filling machine boasts a horizontal design tailored for efficiently filling a diverse range of pastes. With its rapid filling speed and extensive capacity, it can handle up to 1200 bottles per hour. The sleek desktop design ensures a compact footprint, while the use of 304 stainless steel material facilitates effortless cleaning. Precision is paramount, and the filling mechanism employs high-precision ceramic piston metering pumps to guarantee accurate filling results.
Technical parameters of Desktop Cream Paste Filling Machine
| Model |
XQQG-12 |
XQQG-25 |
XQQG-50 |
XQQG-100 |
| Pump head |
High purity ceramics |
| Filling accuracy |
≦±0.25% |
| Filling range |
1-12ml |
2-25ml |
5-50ml |
10-100ml |
| Manufacturing speed |
0-40 Bottle/min |
| Size of Host Machine |
50*30*75 cm |
| Power |
AC 220V 50-60Hz 50W |
| Air pressure |
0.4-0.6Mpa |

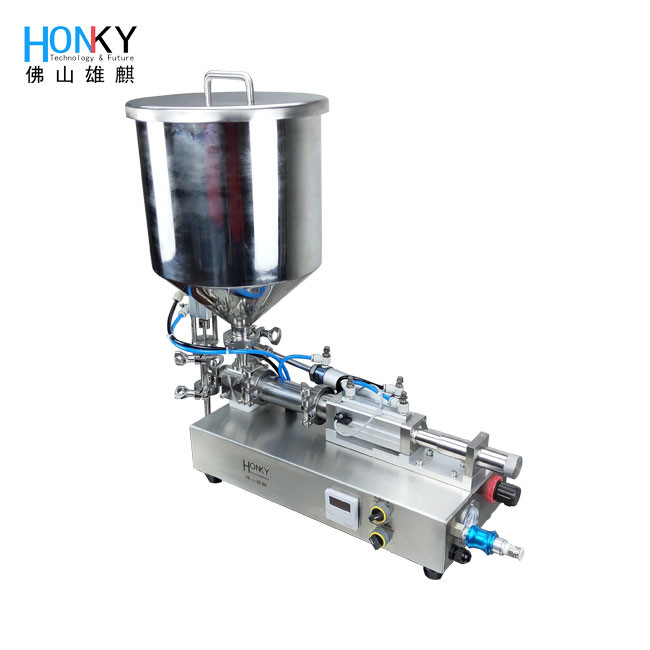

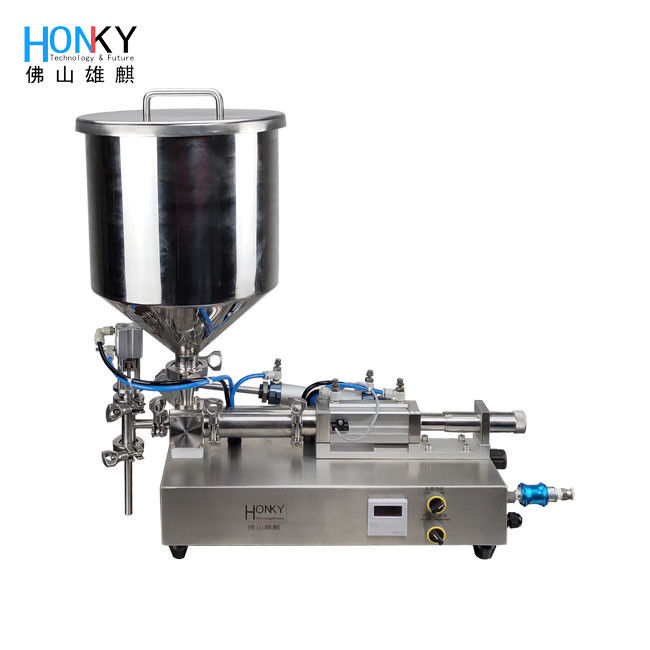

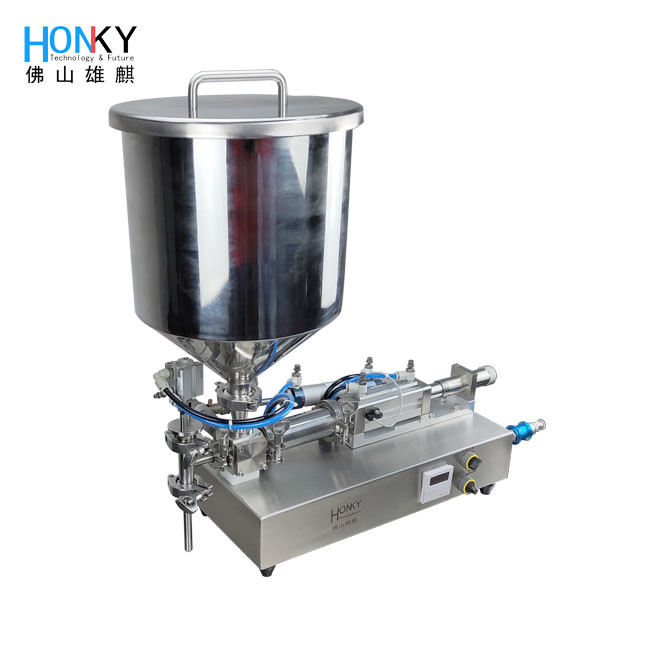

Product display of desktop hopper filling machine
This equipment has been tested to meet the requirements of GMP certification.

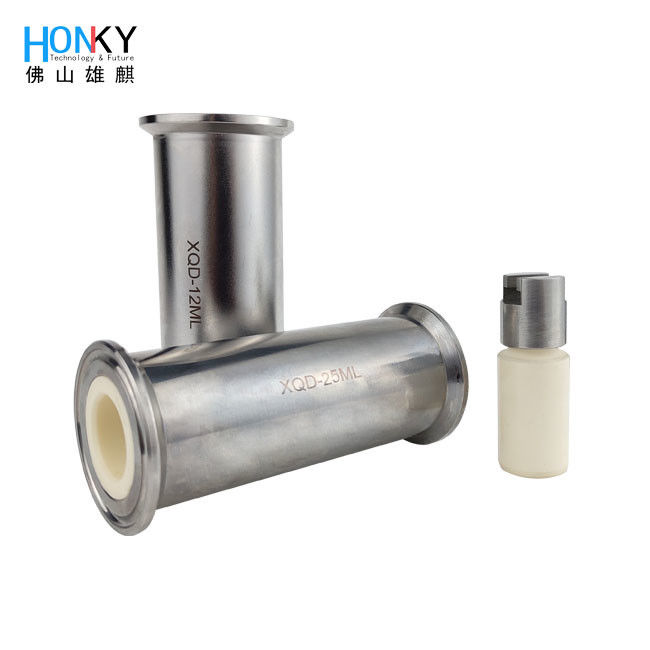

The high-precision ceramic rotary valve is used to control liquid input and output, and precise ceramic plunger and cavity are ensured to be stable and precise.
Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
