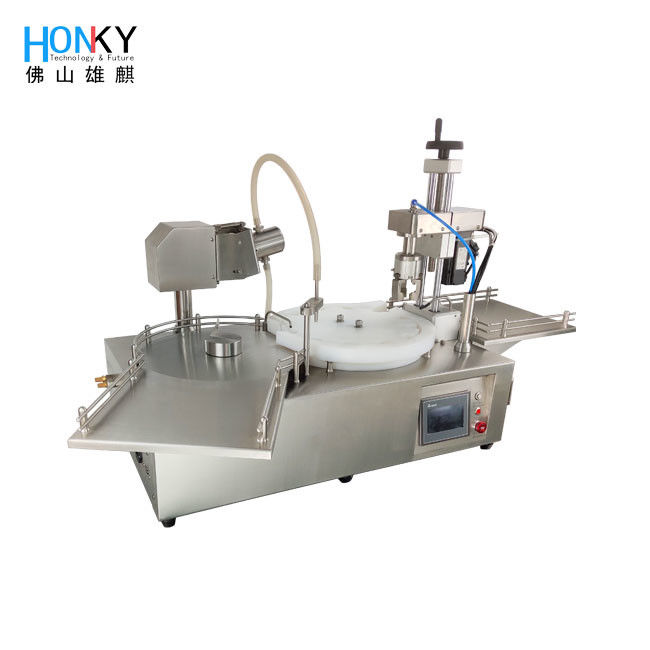

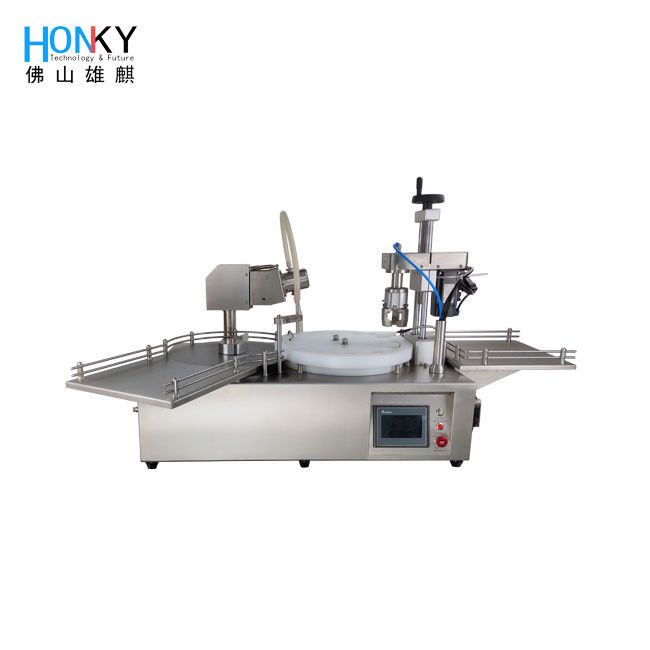

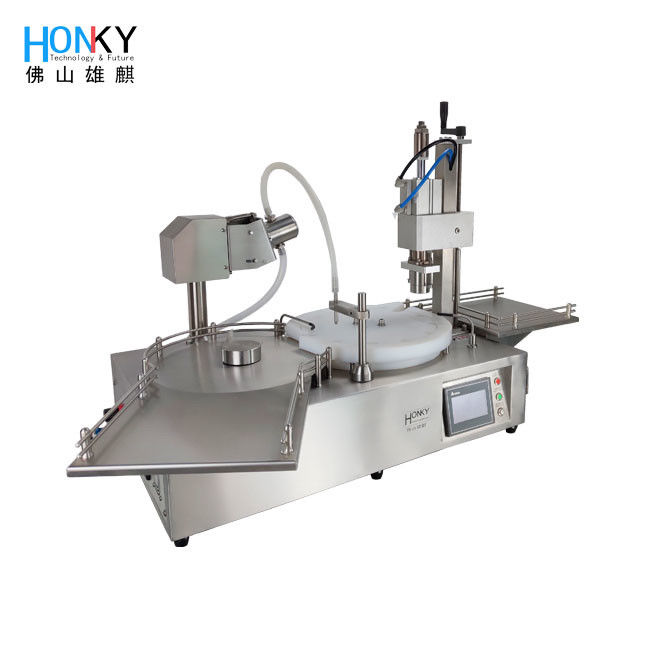

Desktop Small Essential Bottle Liquid Filling and Capping Machine
The XQGX-30A features a desktop filling and capping design, specifically engineered for essential oil bottles. Its high-precision ceramic pump ensures exceptional filling accuracy, while the compact stainless steel construction facilitates easy cleanup. With a production capacity of up to 1800 bottles per hour and integrated bottle feeding, this machine is ideal for small-batch production while minimizing manual labor requirements.
Technical Specifications
| Model |
XQGM-30A |
| Filling Range |
0.2-6ml | 1-12ml | 2-25ml |
| Filling Accuracy |
≤0.5% |
| Bottle Diameter |
φ20 - φ45mm |
| Manufacturing Speed |
12-22 PCS/min |
| Power |
AC 220V 50-60Hz 600W |
| Air Pressure |
0.4-0.5Mpa |
| Host Machine Size |
1230*780*600(mm) |
Product Features
This equipment has been tested to meet the requirements of GMP certification.

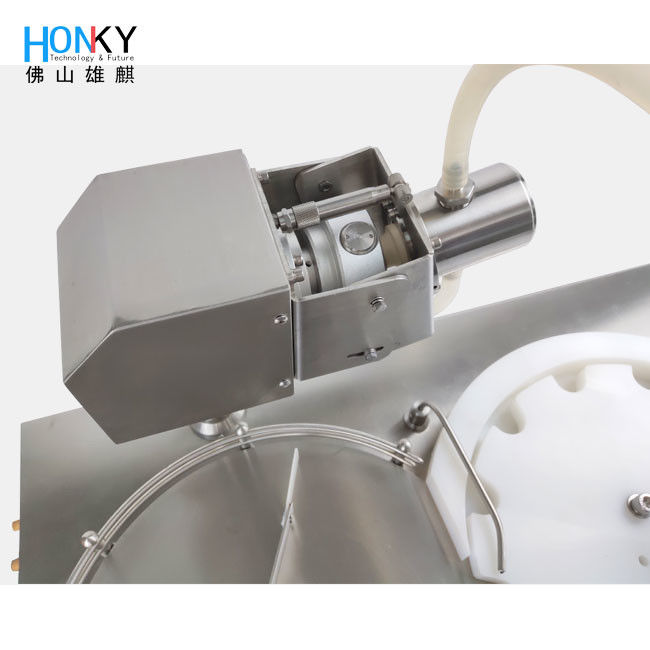

The separation part utilizes a high-purity ceramic pump, controlling injection volume by adjusting the pump head angle, delivering exceptional measuring accuracy and repeatable consistency.
The capping system employs SERVO torsional screwing technology to ensure secure lid tightness without damaging containers.
Fully desktop design ensures straightforward operation and space efficiency.
Ceramic Pump Advantages
- Low Friction, Increased Packing Life
- Extreme Wear Resistance
- Increased Corrosion Resistance
- Improved Anti-Galling Surface
Application Areas
- ODM and OEM products design
- Automatic manufacturing line design
- Cosmetic product packing
- Pharmaceutical and bio-reagent product packing
- Laboratory Liquid dispensing
- Lithium Battery Liquid dispensing
- Ceramic pump and ceramic pump part design
- Other material filling applications
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty. We offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We provide comprehensive user manuals and instructional videos covering installation, debugging, and operation procedures.
Q: What info will be needed to confirm machine models?
A: 1. The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
