| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQJZ-2S-XYZ |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Filling Speed: | 80 BPm(2ml) | Pump Choosing: | XQX2 Ceramic Pump(0.6-6ml) |
|---|---|---|---|
| Filling Accuracy: | ±0.55% | Machine Dimension: | 50*50*50 Cm |
| Weight: | 42 KGS | Driven Type: | Full Electric |
| Highlight: | Ceramic Piston Pump Tube Filling Machine,2ml Tube Filling Machine,Desktop Tube Filling Machine |
||

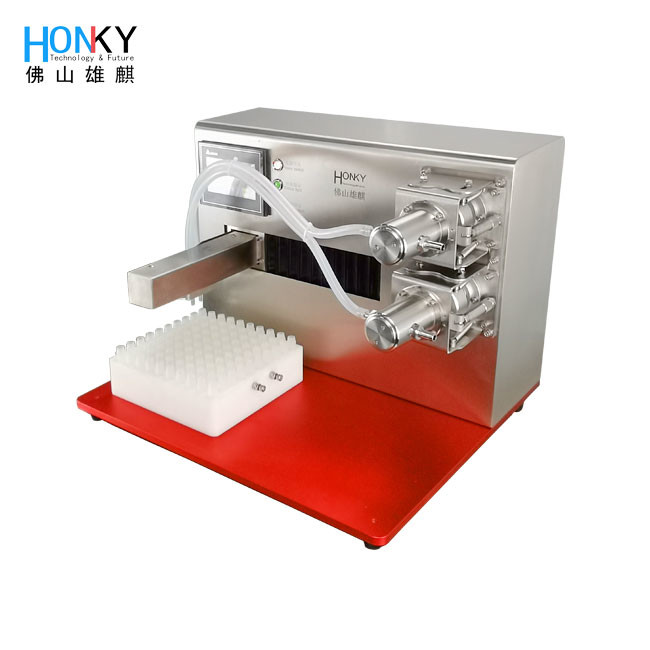

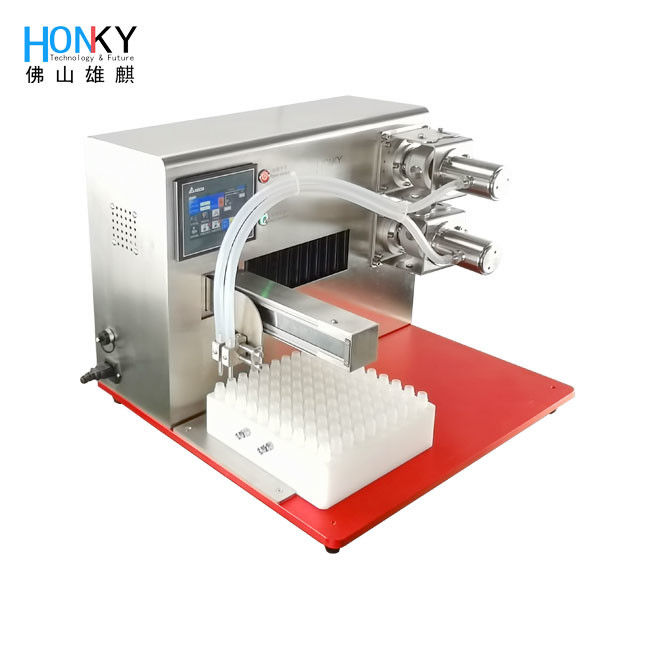

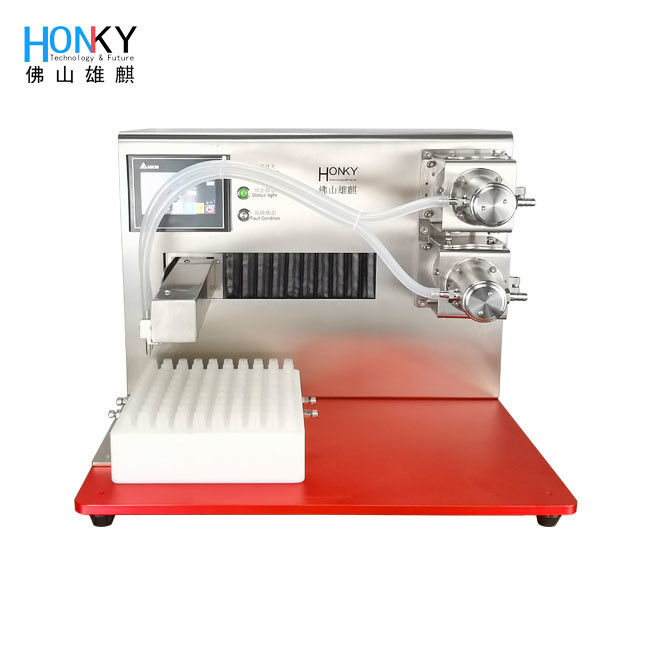

Desktop Type Automatic 2ml Perfume Sample Tube Filling Machine With Ceramic Piston Pump For Perfume Sample Filling
Characteristic of Desktop Type Automatic 2ml Perfume Sample Tube Filling Machine
This state-of-the-art equipment features automatic dual-channel bottle loading, which significantly enhances production efficiency. Additionally, it boasts a multi-head filling mechanism, ensuring a rapid and even distribution of the product into each bottle, resulting in a consistent and high-quality output.
The machine is designed with versatility in mind, making it suitable for a diverse range of products that may exhibit standing instability. This flexibility ensures that it can cater to a wide array of production needs, regardless of the nature of the product.
Constructed from stainless steel 304, the machine offers exceptional durability and corrosion resistance. This material choice ensures that the equipment can withstand the demands of continuous operation in even the most challenging environments.
This advanced equipment utilizes the XYZ three-axis linkage method, incorporating Japanese sensors and Taiwan rails. This combination ensures precise positioning, resulting in accurate and consistent product placement.
The filling section of the machine boasts a precision ceramic pump that has been independently developed. This pump ensures exceptional filling accuracy, with a repeated accuracy of ±0.3%, guaranteeing a high-quality output every time.
We understand that every customer's needs are unique. Therefore, the size of the machine can be customized to perfectly fit the customer's specific requirements, ensuring optimal performance and efficiency in their production process.
Technical parameters of Desktop Type Automatic 2ml Perfume Sample Tube Filling Machine

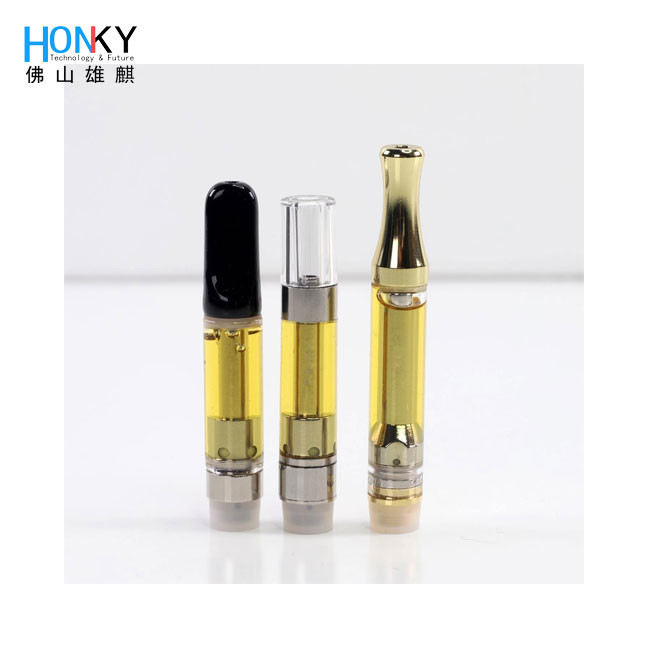

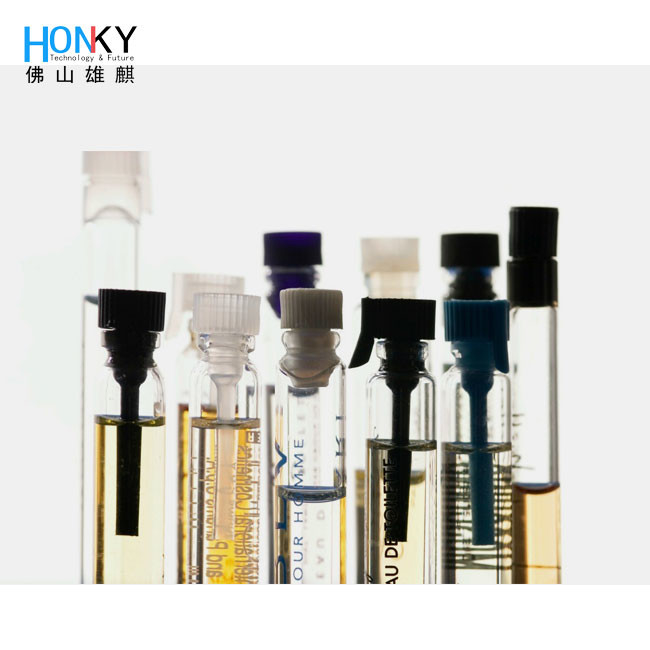

| Target Products | Test tube/ampule/water needle/E-liquid bottle |
| Manufacturing speed | 80 PCS/min |
| Power | AC 220V 50-60Hz / 680w |
| Air range | - |

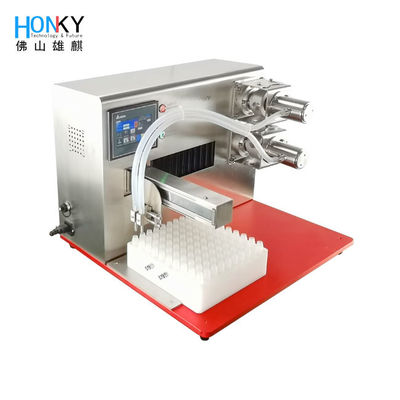

Product display for Desktop Tube Filling Machine
1.Automatic dual-channel bottle loading, multi-head filling.
2.Suitable for a variety of standing instability products.
3.The machine is made of stainless steel 304.
4.The size of the machine can be customized according to the customer’s need.
This equipment adopts XYZ three-axis linkage method, using Japanese sensor, Taiwan rail, which makes the positioning precise.
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
