Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine For The Cosmetic Paste Filling

Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine For The Cosmetic Paste Filling

Characteristic of Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine

This machine is a linear filling machine and is suitable for various high and low viscosity materials. The machine has the functions of automatic filling, plugging, capping, bottle discharge, and automatic material feeding. As a Straight-line operation, the mold can be used automatically and circularly. The clamps are adjustable, and different bottle types can be filled by simply adjusting the clamps to change the bottle type. The servo motor controls the diving filling action, which effectively prevents the material from spraying and foaming. Servo motor combined with rotary valve, piston quantitative filling, convenient control, simple adjustment, and high filling accuracy. Servo motor to control the cap screwing up and down, cap screwing torque is adjustable which is no damage to bottle cap. The manipulator automatically discharges the finished product, which is convenient and reliable. The whole machine is made of sanitary stainless steel, which is good and sanitary.

Operation steps of Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine

Initially, position the container onto the weighing system to guarantee precise filling.

The storage tank holds the CC cream paste, while the pump transfers the paste to the filling head via a hose.

The filling head ensures accurate dispensing of the paste into the container.

The conveyor belt carries the container to the subsequent processing stage.

The cap feed conveyor efficiently delivers the caps to the cap feeding device.

The cap feeding device is tasked with lifting caps and accurately placing them on the container.

The capping device presses the cap firmly onto the container, thus completing the capping process.

Technical data of Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine

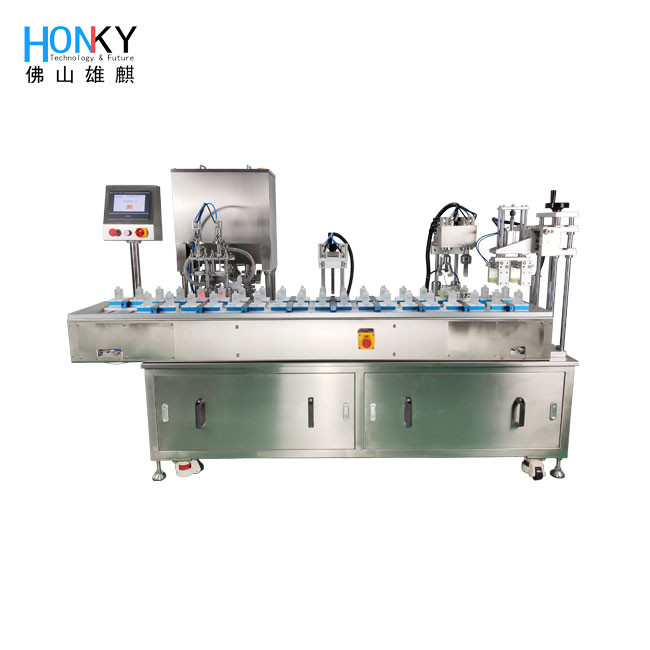

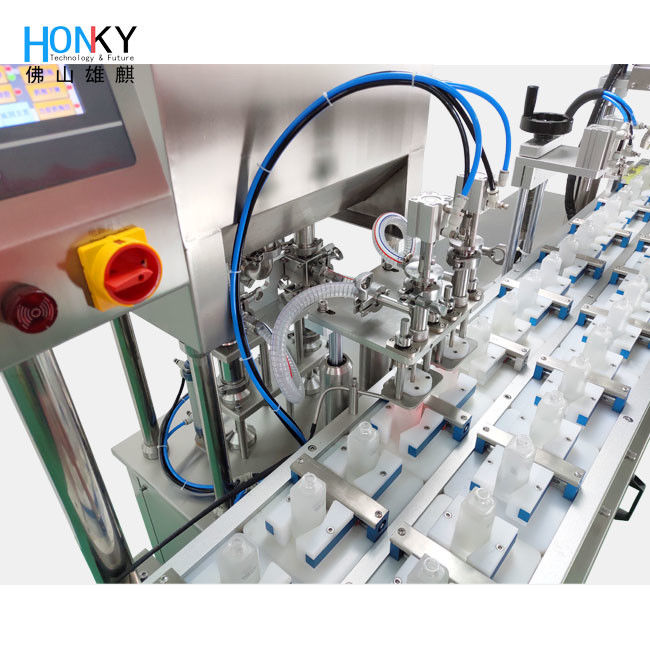

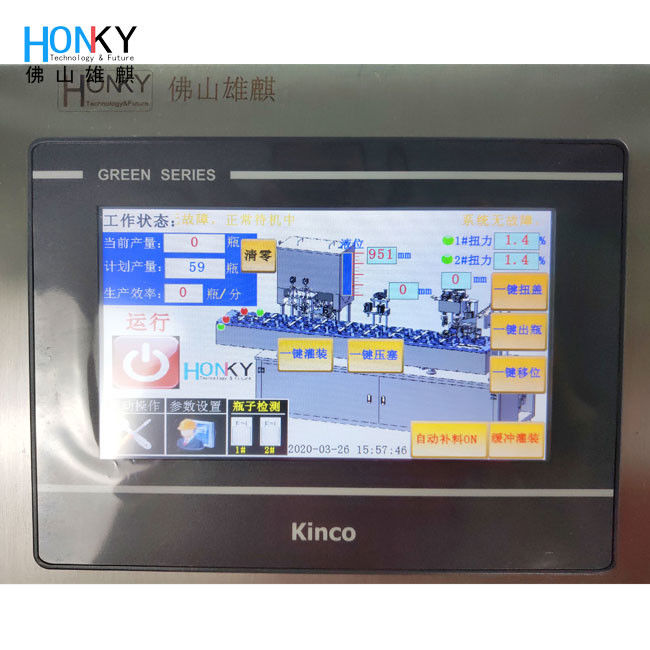

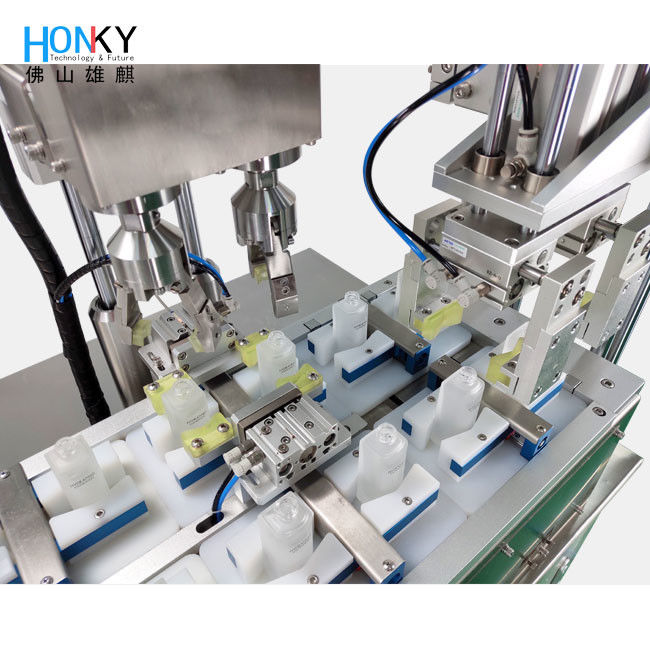

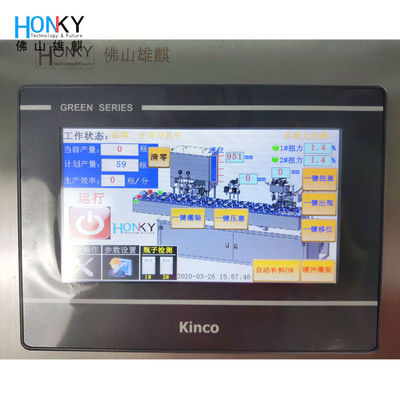

Product display of Full Automatic 50g BB Cream Jar Paste Filling And Capping Machine

Advantage of our piston pump:

1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.

2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.

3.Wide speed range.

4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.

5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
