3-30ml Single Way Valve Liquid Ceramic Filling Pump With High Precision Ceramic Plunger And Piston Hibar pump system
3-30ml Single Way Valve Liquid Ceramic Filling Pump With High Precision Ceramic Plunger And Piston Hibar pump system
Characteristics of 2-20ml Chcek Valve Liquid Ceramic Filling Pump
The HB-S ceramic pneumatic pump integration is designed with precision and expertise, incorporating a plunger mechanism that is tailored for the quantitative injection of low-viscosity liquids. This unique design ensures accurate and controlled delivery of the fluids, making it an ideal choice for various industrial and laboratory applications. The pump boasts exceptional metering accuracy and repeatability, with its precision rating surpassing the industry standard of ±0.8%. This ensures that each injection is consistent and accurate, eliminating any room for error.
Moreover, the metal components that come into direct contact with the material are crafted from high-grade 316L stainless steel. This material is renowned for its superior corrosion resistance, ensuring that the pump can withstand even the most corrosive environments. The use of 316L stainless steel not only enhances the durability of the pump but also guarantees that the integrity of the injected liquid remains unchanged, free from any contamination.
In summary, the HB-S ceramic pneumatic pump integration offers a robust and reliable solution for precise and controlled injection of low-viscosity liquids. Its precision plunger design, high metering accuracy, and corrosion-resistant materials make it a standout choice in the market.
Industry application of 2-20ml Chcek Valve Liquid Ceramic Filling Pump
It can be used for supporting and transforming the filling part of the packaging machine. It is suitable for filling low-viscosity homogeneous liquid materials such as electrolytes, medicinal liquids, biochemical reagents, chemical liquids, essential oils, essences, and perfumes. It can be used with packaging equipment such as multi-station bag packing machines, multi-column packaging machines, and blister machines.
Parameter of 2-20ml Chcek Valve Liquid Ceramic Filling Pump
| Model |
Plunger
diameter |
Stroke |
Volume |
Accuracy |
Speed |
Size of the pump(mm) |
| ml |
CPM |
A |
B |
C |
D |
E |
F |
| HB-10S |
25 |
25 |
1-10 |
±0.5-1% |
50-60 |
308.90 |
77 |
179.05 |
91 |
35 |
φ50.50 |
| HB-30S |
42 |
3-30 |
308.90 |
77 |
179.05 |
91 |
35 |
φ50.50 |
| HB-50S |
54 |
5-50 |
308.90 |
77 |
179.05 |
91 |
35 |
φ50.50 |
| HB-100S |
54 |
50 |
10-100 |
308.90 |
77 |
179.05 |
106 |
35 |
φ50.50 |
| HB-200S |
60 |
90 |
20-200 |
450 |
97 |
199.05 |
106 |
35 |
φ50.50 |
| HB-300S |
70 |
30-300 |
510 |
97 |
199.05 |
106 |
35 |
φ50.50 |

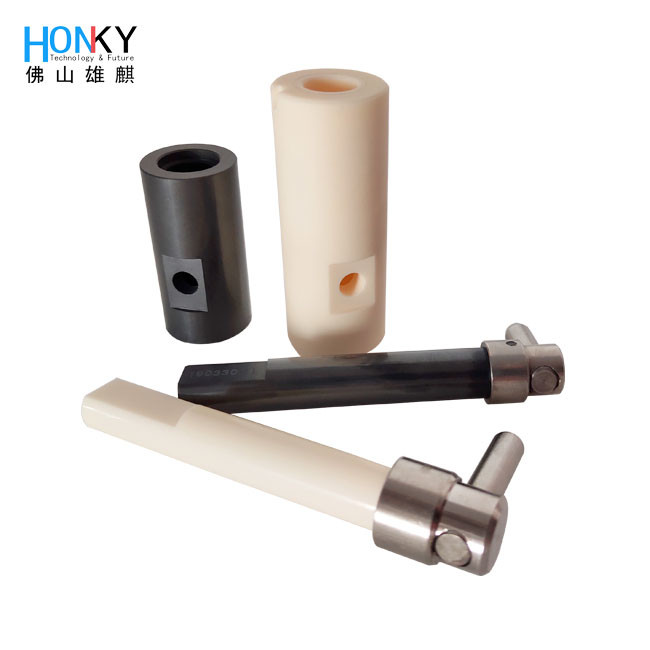

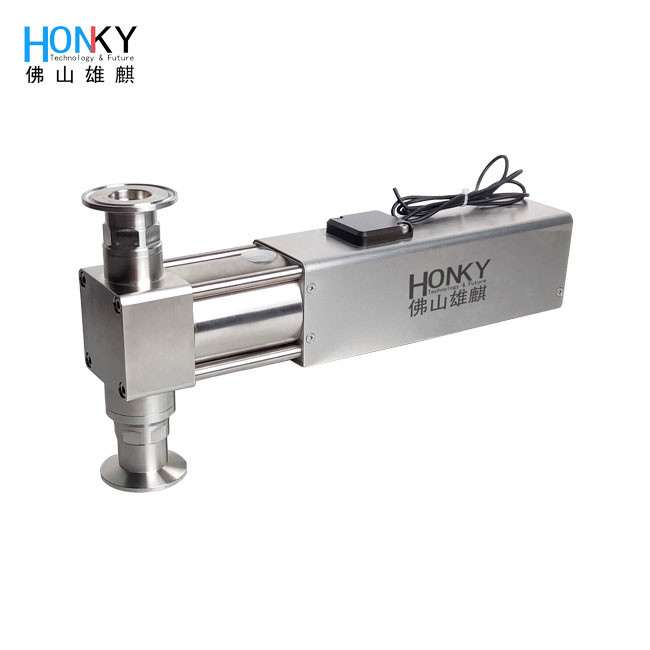

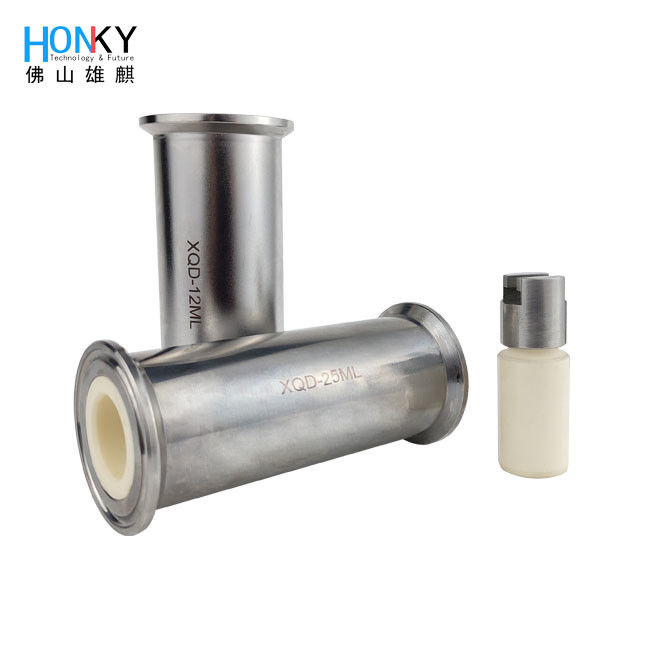

Product display of 2-20ml Chcek Valve Liquid Ceramic Filling Pump
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
