Desktop semi-automatic 10ml roll-on bottle filling and capping machine for skin care liquid filling
Characteristic
This equipment has undergone rigorous testing to ensure compliance with the stringent standards of GMP certification.
It features an intelligent operating system with a user-friendly touchscreen interface, providing intuitive and effortless operation.
The liquid-dividing section employs a high-purity ceramic pump, allowing for precise control of the liquid-filling quantity in each cycle by adjusting the pump head angle. This ensures exceptional metering accuracy and repeatability.
The equipment boasts a sleek 304 stainless steel exterior and a desktop design, making it both practical and convenient for use.
The machine's rapid bottle mold loading system enables quick and effortless switching between different bottle types.
Incorporating German electric eye detection technology, the device effectively prevents bottling without filling, ensuring consistent and accurate filling.
Furthermore, the pneumatic components used are sourced from a trusted Taiwan brand, ensuring reliability and durability.
Technical data
| Model |
XQZGD-12B |
| Pump type |
Ceramic pump |
| Filling accuracy |
≦±0.5% |
| Filling range |
0.6-6ml |
| Manufacturing speed |
25-30 PCS / minute |
| Power |
AC 220V 50-60Hz 550W |
| Air pressure |
0.4-0.6Mpa |
| Machine size |
710*660*670mm (Main machine roughly) |

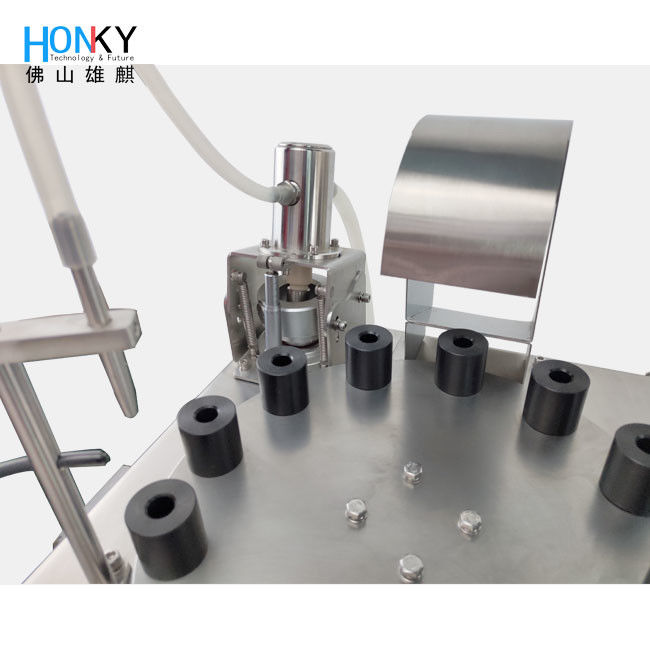

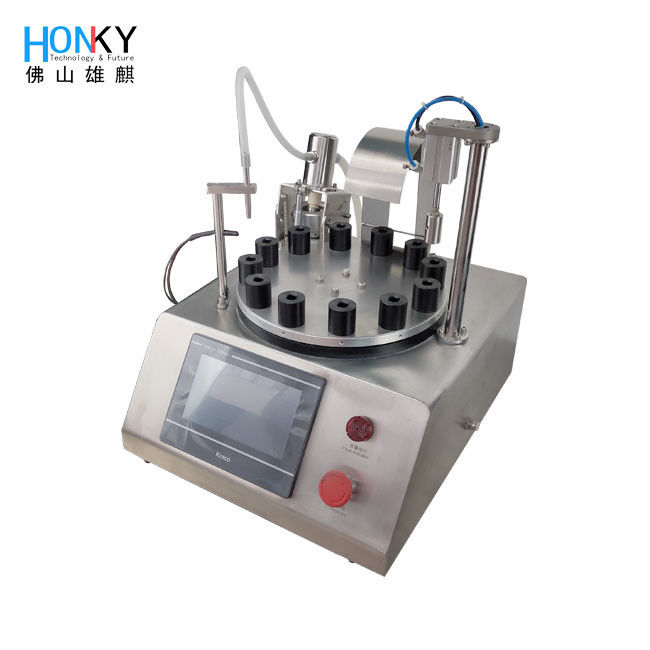

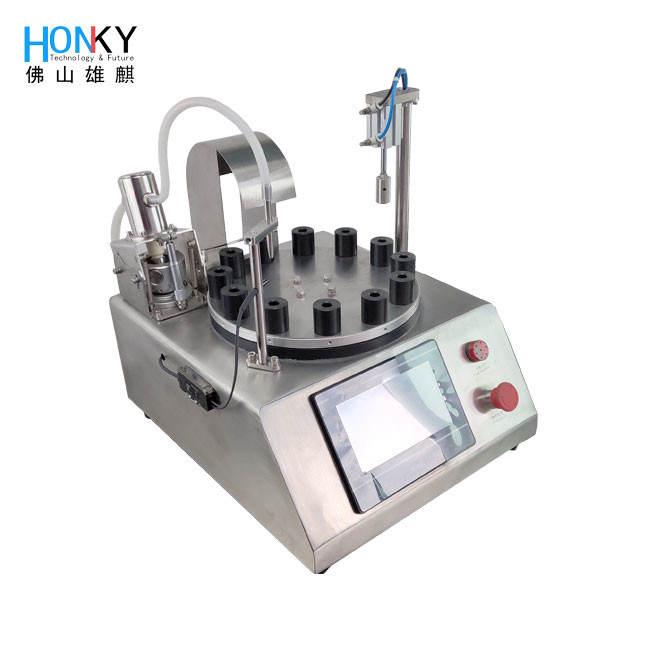

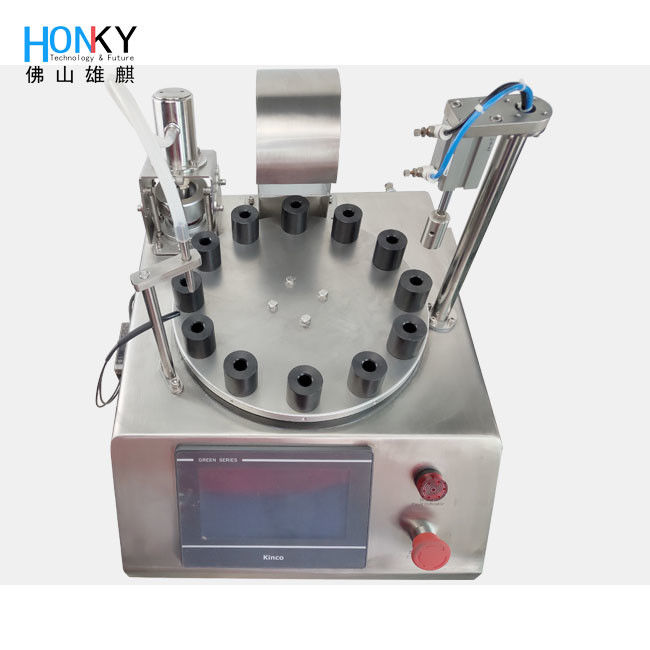

Product display
This equipment has been tested to meet the requirements of GMP certification.

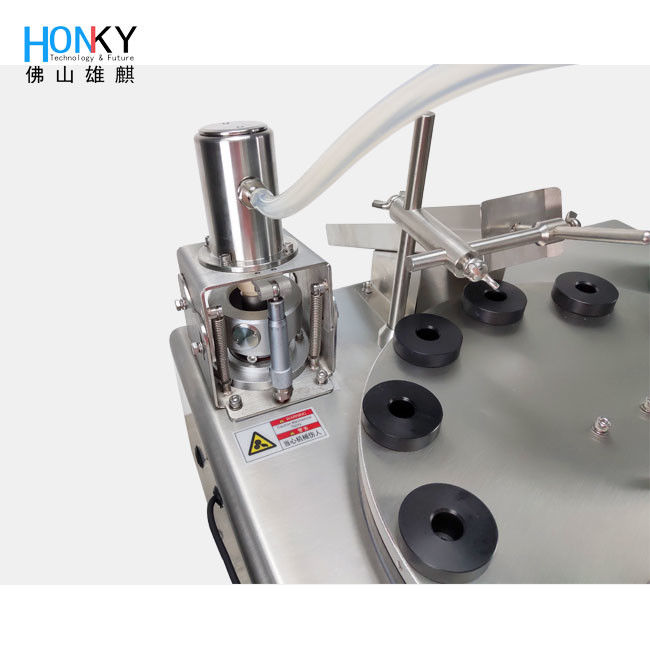

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
