Full Automatic 2L Liquid Shampoo Filling Capping Machine With High Quality Filling System For The Shampoo Industry PackFull Automatic 2L Liquid Shampoo Filling Capping Machine With High Quality Filling System For The Shampoo Industry Pack
Characteristic of Full Automatic 2L Liquid Shampoo Filling Capping Machine
Tracking type high-speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc. This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.
Characteristic of Full Automatic 2L Liquid Shampoo Filling Capping Machine
A. The equipment features stainless steel SUS316 construction for all its contact components, ensuring superior durability and hygiene.
B. It employs state-of-the-art photoelectric control for swift and precise automatic filling, with a rotary valve crafted from ceramic material, eliminating the need for a sealing ring and allowing for effortless, comprehensive cleaning.
C. Operated via a motion controller and an intuitive HMI human-machine interface, parameters can be effortlessly set with a single key, eliminating the need for manual mechanical adjustments.
D. The system incorporates a servo drive mechanism, delivering exceptional filling accuracy and pinpoint positioning.
E. Designed for high-speed operation, the filling process is instantaneous, maximizing production efficiency.
F. The entire machine is built on a robust stainless steel frame, complemented by a transparent PC or plexiglass enclosure and a sleek SUS304 stainless steel work surface.
G.Sophisticated ultrasonic liquid level monitoring ensures precise control over liquid levels.
H. Utilizing a motion control system and a servo motor for cap sealing, bottles are capped on the move, with automatic bottle position tracking for seamless capping. Torque settings can be effortlessly adjusted to suit different requirements.
Technical data of Full Automatic 2L Liquid Shampoo Filling Capping Machine
| Production efficiency |
2400-3000BPH (using 300ML paste material as the test standard) |
| Filling range |
50-1000ml |
| Filling accuracy |
±0.4% |
| power |
6KW 220V 50Hz |
| Air pressure |
0.6~0.8Mpa total air consumption: about 1.8 cubic meters per minute |
| Size |
The length of the whole line is according to the actual design plan |

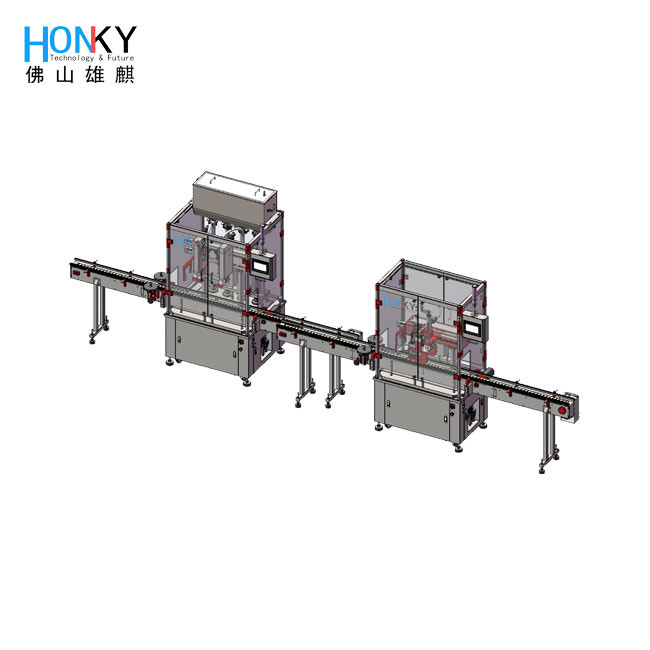

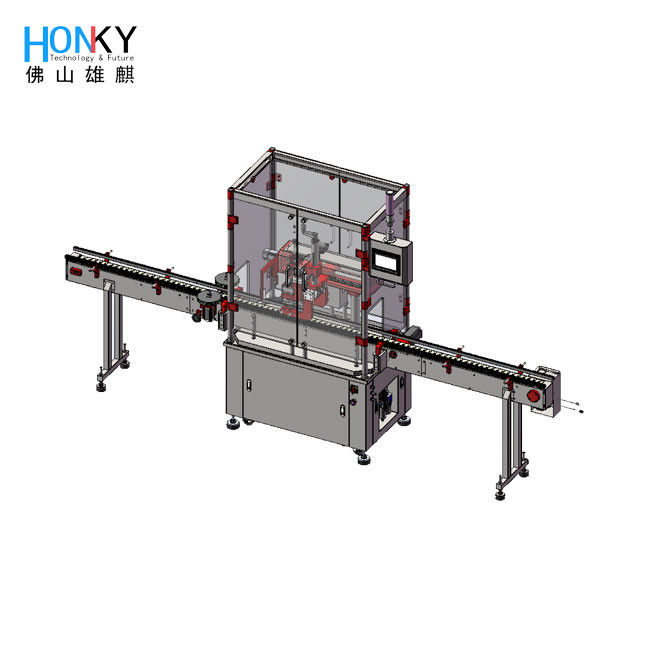

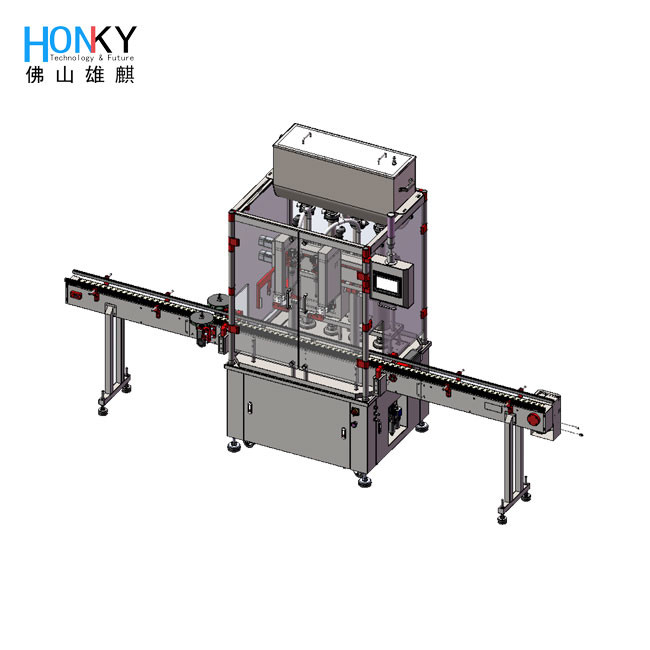

Product display
Service of HonkyTech:
Pre-sales:
According to client requirements, supply reasonable mаsk machine sketch map, quotation and operation video for client ref first.
During Sales:
1) Depends on client objects, made reasonable reform based on the standard machine.
2) 24-hour uninterrupted test before machine delivery, make sure machine operation stable.
3) Execute SGS certification for the equipment and materials used in the production process requirement and specification strictly.
After-sale:
1. Provide complete teaching videos and materials, easy to operate and simple to maintain.
2. Experienced engineers provide online or computer guidance.
3. If in South Korea, we have a professional technical team that can provide door-to-door service.
4. Guarantees all equipment (except human factors) within one year, lifetime maintenance service.
5. After machine used for several years, SKILT promise to provide detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extending machine service life for more than 3-4 years.
