Desktop PCR Stripe Filling Machine Multiple Head Filling System For Bio Reagent Liquid Filling And Packing

Desktop PCR Stripe Filling Machine Multiple Head Filling System For Bio Reagent Liquid Filling And Packing
Features of Multiple Head Filling System For Bio Reagent
The XQIVD-96 is a desktop filling system specifically designed for the efficient filling of 96-well deep well plates. Its compact, space-saving desktop design makes it ideal for use in both laboratory and production settings. The main body of the equipment is constructed from 304 stainless steel, a material known for its durability, resistance to corrosion, and ease of cleaning, thereby maintaining high hygiene standards.

Equipped with a high-precision ceramic pump, the filling component of the XQIVD-96 ensures accurate dispensing. The ceramic pump's excellent chemical resistance and stability minimize errors during the filling process, contributing to the reliability of experimental or production outcomes.

In terms of efficiency, this machine boasts a rapid filling speed, capable of processing 96 wells filled with 10 pieces per minute. This remarkable speed significantly enhances productivity, especially for labs dealing with large numbers of samples, saving both time and labor.

Furthermore, the XQIVD-96 incorporates a quick bottle mold loading mechanism. This feature allows for swift and effortless adaptation to different bottle types, eliminating the need for complicated tools or extended downtime. This adaptability increases the versatility of the device, enabling it to accommodate various filling requirements, whether for research in a laboratory or large-scale production tasks.

Technical data of Multiple Head Filling System For Bio Reagent

Model	XQIVD-96
Pump type	Ceramic pump
Filling accuracy	±0.5%
Filling range	0.01-0.5ml
Manufacturing speed	10-12 PCS / minute
Power	AC 220V 50-60Hz 550W
Air pressure	0.4-0.6Mpa
Machine size	1200*500*500mm (Main machine roughly)

Full automatic desktop 96 deep well plate high precision ceramic pump filling machine for bio reagent

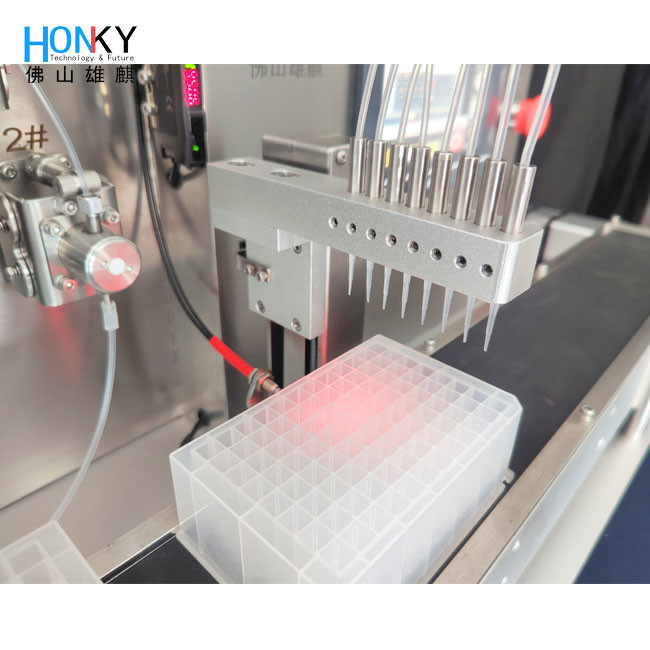

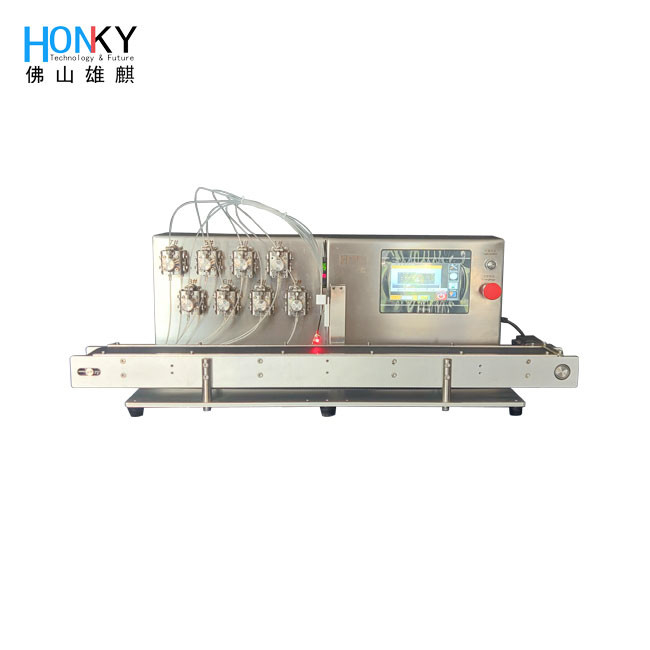

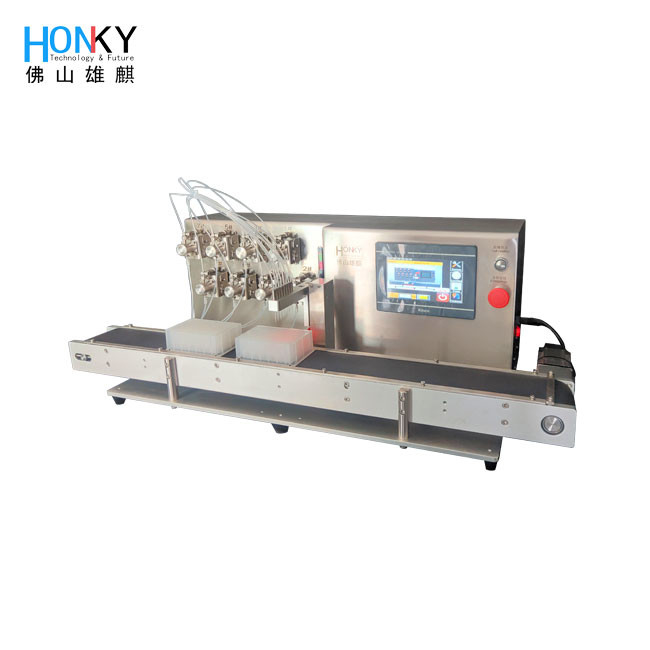

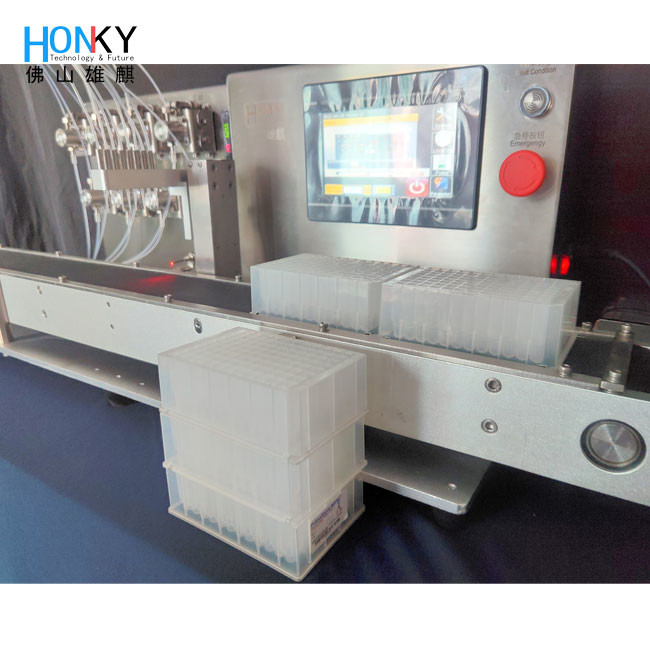

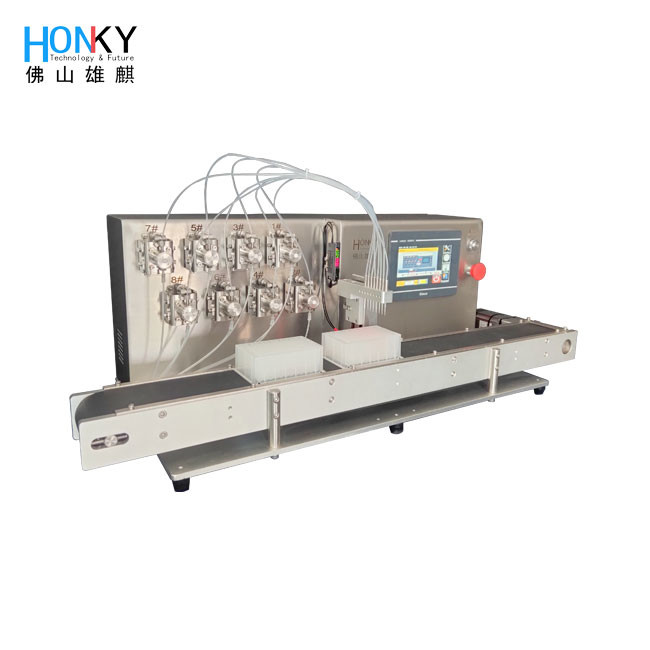

Product Display of Multiple Head Filling System For Bio Reagent

This equipment has been tested to meet the requirements of GMP certification. A self-development system is applied to make the machine easy to operate.





the machine adopts a bottle mold fast loading method, different bottle types can be switched quickly and conveniently. Fully desktop design to make operation easy.



Packing Size of Destkop Automtaic 96 Deep-Well-Plate Filling Machine

Dimension	G.W.
130*60*60 CM	120 kg




Advantages for using the ceramic pump:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface


Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.

Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.

Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.

Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
