| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQLXG -2S |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Machine Function: | Desktop Virus Test Tube Filling | Pump Choosing: | XQX2 Ceramic Pump |
|---|---|---|---|
| Power Supply: | 0.4-0.6 MPa AC 220V 680W | Packing Efficiency: | 50 PCS Per Minute |
| Machine Size: | 66*65*500 Cm | Application: | IVD Diagnostic Reagent; Virus Test |
| Highlight: | Bio Reagent Filling Machine,Desktop Reagent Tube Filling Machine,High Precision Volume Pump Filling Machine |
||
Clean bench desktop reagent tube filling and capping machine with high precision volume pump for bio reagent filling
Characteristic of Clean bench desktop reagent tube filling and capping machine
The XQLXG-2S rotary desktop filling machine stands as a versatile and highly specialized piece of equipment tailored explicitly for the efficient filling and capping of test tubes. Its innovative rotary design not only optimizes workflow but also ensures a seamless and continuous process, ideal for laboratories, research facilities, and pharmaceutical manufacturing environments where precision and speed are paramount.
Boasting a self-developed plug pressing structure, this machine simplifies the capping process significantly, eliminating the need for complex adjustments or additional tools. Its streamlined design makes it both simple to operate and highly efficient, allowing operators to quickly and accurately apply caps to test tubes with minimal effort.
At the heart of the XQLXG-2S lies the XQX2 high-precision ceramic pump, a testament to its commitment to accuracy and reliability. This advanced pump guarantees filling accuracy within an impressive ±0.5% range, ensuring that each test tube receives the exact amount of liquid required. Coupled with its fast filling speed and wide filling range capabilities, it accommodates a variety of liquids and volumes, making it a versatile solution for diverse applications.
One of the standout features of the XQLXG-2S is its integrated bottle-out mechanism, which further streamlines the filling and capping process. This automated feature eliminates the need for manual intervention during the ejection of filled test tubes, enabling a single operator to manage the entire machine with ease. This not only reduces labor costs but also enhances workplace safety by minimizing the risk of accidents associated with manual handling.
Crafted from sanitary stainless steel, the entire machine boasts a compact yet robust design that withstands the rigors of daily use while maintaining a clean and hygienic work environment. Its smooth surfaces facilitate easy cleaning and disinfection, ensuring compliance with strict hygiene standards in healthcare and scientific settings.
In summary, the XQLXG-2S rotary desktop filling machine represents the epitome of modern laboratory automation. Its combination of precision, efficiency, and ease of use makes it an invaluable asset for any organization looking to streamline their test tube filling and capping processes.
Technical data of Clean bench desktop reagent tube filling and capping machine
| Model | XQLXG-2S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.2-1.5ml |
| Manufacturing speed40 | PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |
Characeristic
1.Automatic dual-channel bottle loading, filling, capping and discharging.
2.The machine is made of stainless steel 304.
3.This equipment adopts Japanese sensor, Taiwan precision cam for the accurate positioning;
4.The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
5.Sensor recognition to realize the function of stopping filling without bottle.
6.The size of the machine can be customized according to the customer’s need.

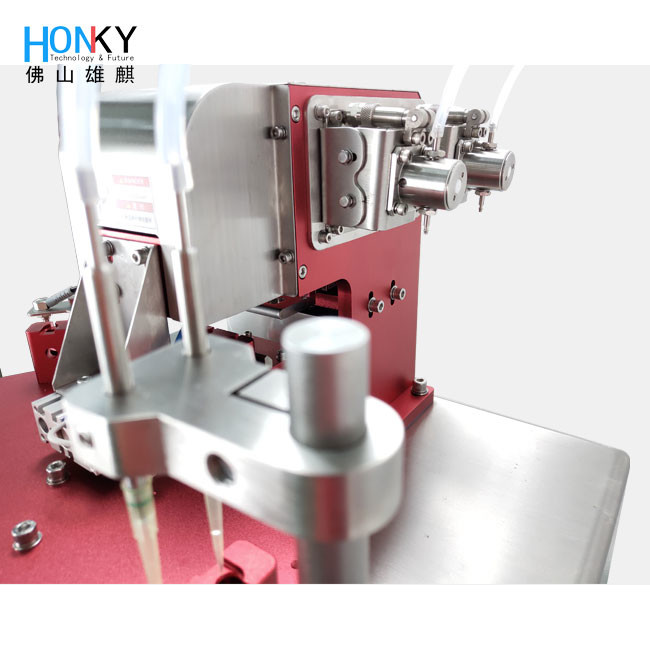

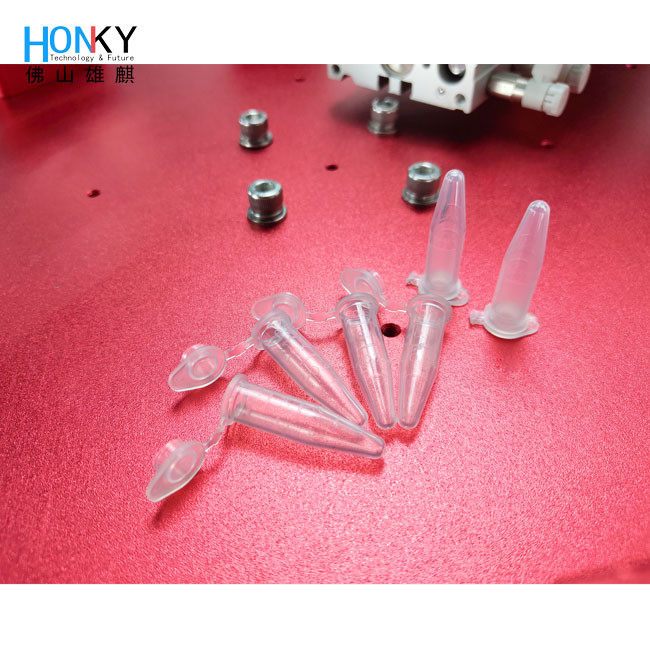

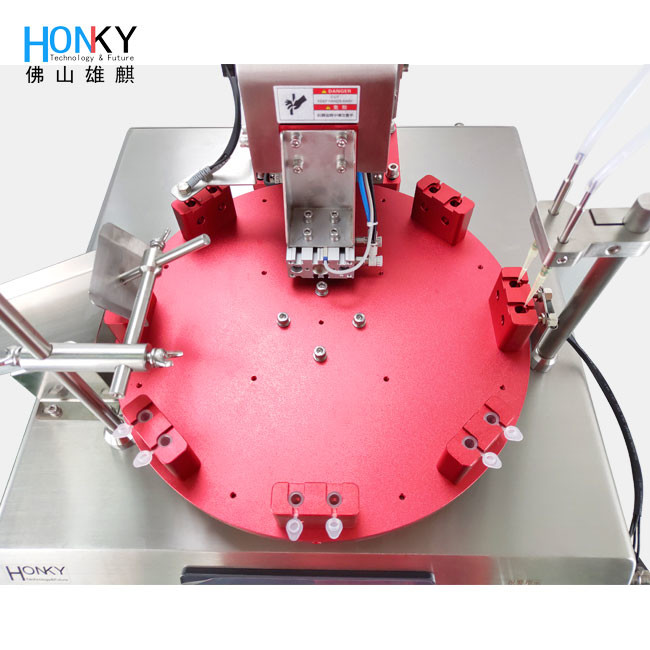

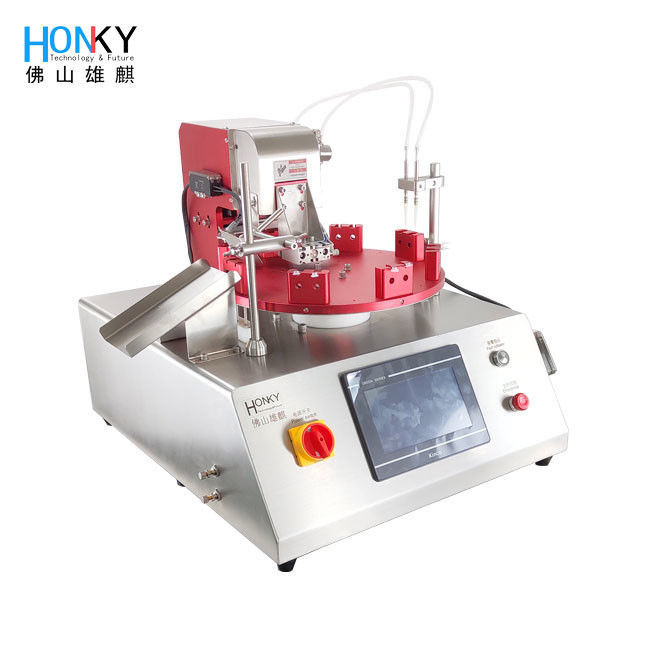

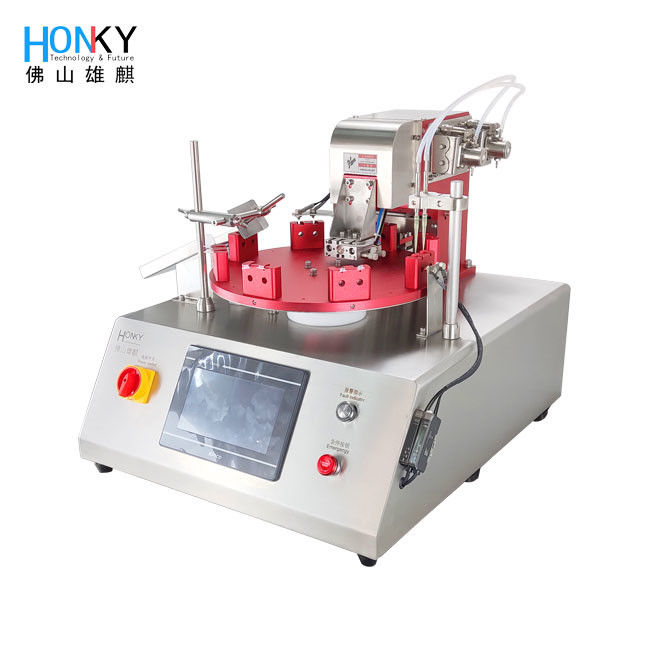

Product display of Clean bench desktop reagent tube filling and capping machine
2al Reagents
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
