Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX1/X2 system |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application Type: | MEDICAL, Chemical | Filling Range: | 2 To 25ml |
|---|---|---|---|
| Material Contact Part: | Stainless Steel 316L | Ceramic Part Material: | High Purity Alumina Or ZrO2 |
| Suitable For: | Filling Machine Upgrading | Adjustment Mode: | Manual Adjusting |
| Highlight: | High Precision Ceramic Filling Pump,Pharma Liquid Dispensing Ceramic Filling Pump,6ml Ceramic Filling Pump |
||
Full Automatic Multiple Head XQX2 System 6ml Ceramic Filling Pump
Features of Full Automatic Multiple Head XQX2 System:
The contact material boasts a metallic component that is meticulously crafted from 316 stainless steel, renowned for its exceptional corrosion resistance properties. This meticulous selection ensures that the pump body not only withstands harsh environments but also demonstrates superior durability, further enhancing its overall performance and longevity.
This impeccable series of metering pumps excels in offering an unparalleled level of precision and repeatability in dosing applications. With an accuracy surpassing the stringent standard of plus or minus five thousandths, these pumps guarantee reliable and consistent results, making them the go-to choice for industries demanding the utmost in metering accuracy.
The X1 series stands apart with its innovative design, incorporating a lateral differential angle that translates into more sensitive adjustments. This feature allows for finer control and precise tuning, catering to the needs of specialized applications. On the other hand, the X2 series, renowned for its widespread adoption, boasts a simplistic yet robust structure that ensures ease of maintenance and operation, making it an ideal choice for a broad range of applications.
The X1/X2 SYSTEM series represents a groundbreaking implanted device that seamlessly integrates the esteemed X1/X2 series ceramic pumps with an advanced control system. Engineered with a rational structure, this compact yet powerful unit boasts a sleek design that maximizes space utilization and simplifies installation. Its user-friendly operation interface ensures seamless integration into high-end packaging equipment, offering an optimal matching solution that enhances production efficiency and quality standards. Whether it's precision dosing or reliable performance, the X1/X2 SYSTEM series delivers exceptional value and performance across diverse industrial sectors.
Parameter of Full Automatic Multiple Head XQX2 System:
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

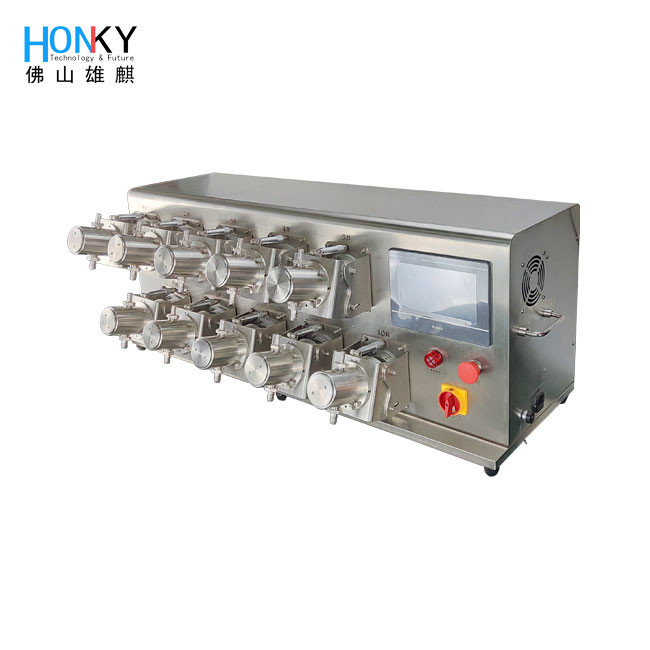

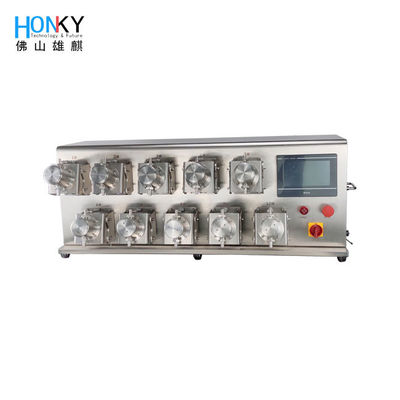

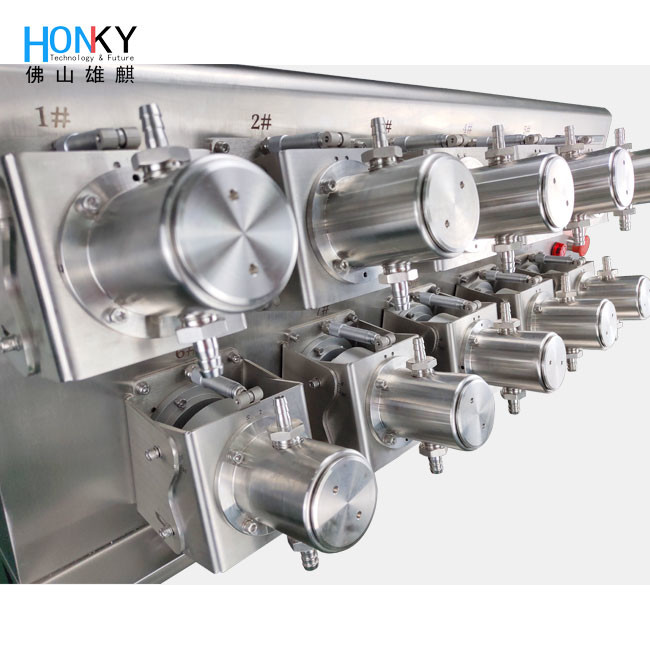

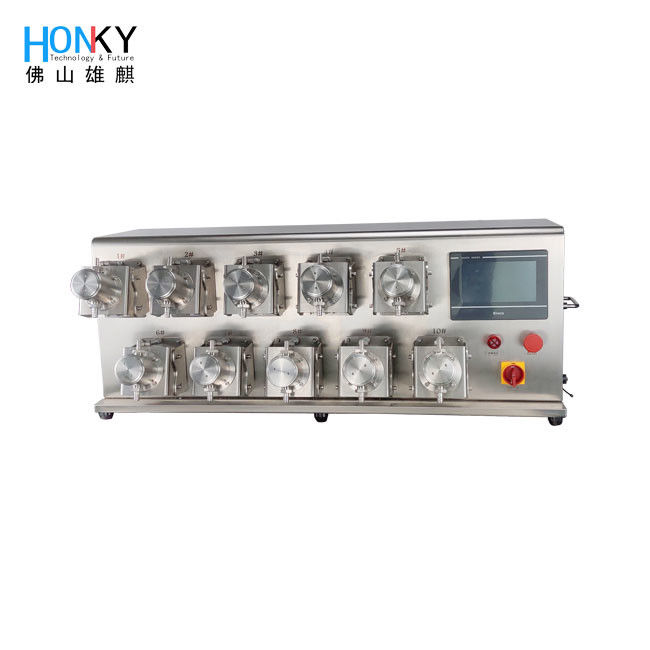

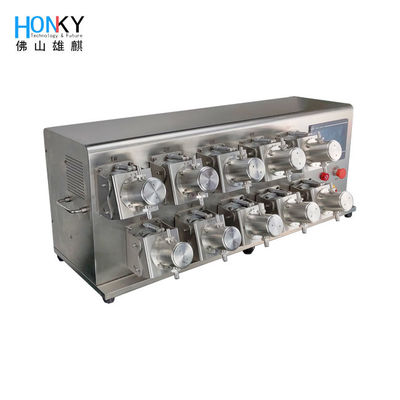

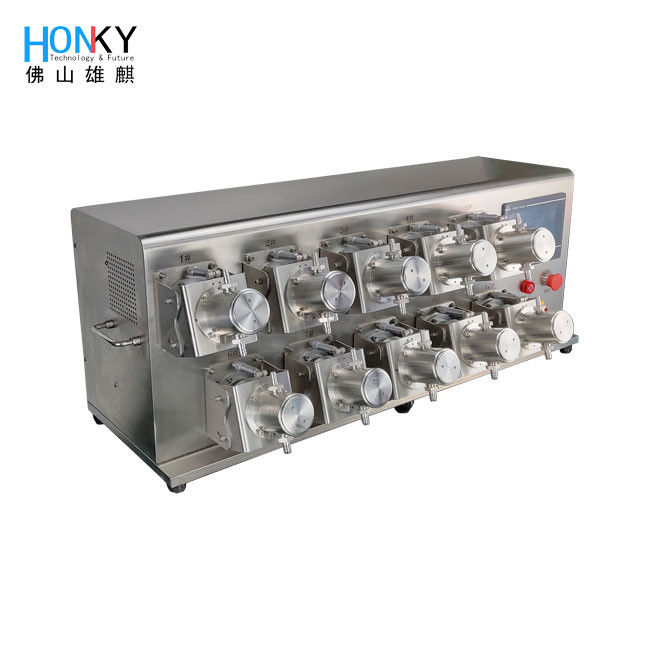

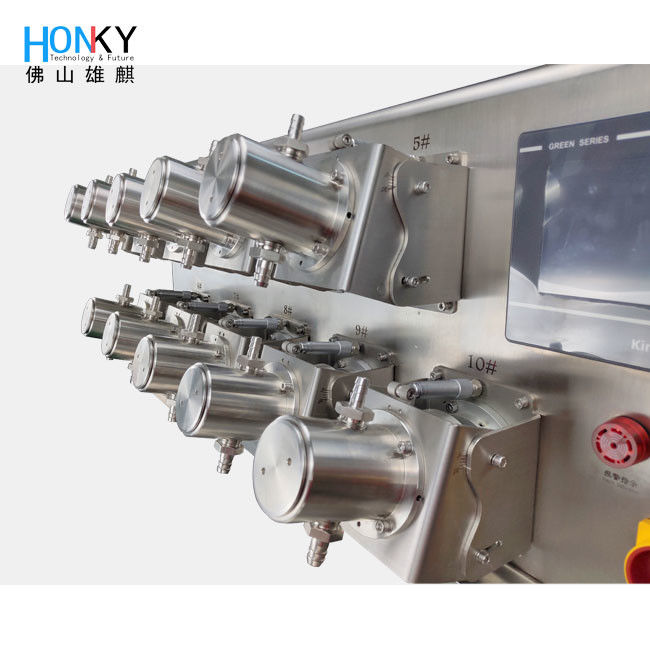

Product display of Full Automatic Multiple Head XQX2 System:
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
