Hand Held 5ml Essential Oil Filling Machine with High Filling Precision and Ceramic Pump for 120 PCS/MIN Cosmetic Oil Filling

Hand Held 5ml Essential Oil Filling Machine with High Filling Precision and Ceramic Pump for 120 PCS/MIN Cosmetic Oil Filling

5ml Desktop Filling Machine

Desktop Filling Machine for Cosmetic Oil

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQX2 system

Contact Us
Request A Quote
Product Details
Packing Speed:
120 PCS/MIN
Accuracy:
Smaller Than ±0.55%
Machine Size:
36*36*36 Cm
Weight:
16 KGS
Pump Range:
0.6-6 Ml XQX2 SERIES Pump
Application Area:
Medical,Chemical,Cosmetic
Highlight:

5ml Desktop Filling Machine

,

Desktop Filling Machine for Cosmetic Oil

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(70*70*70 cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
Product Description
Hand Held 5ml Essential Oil Filling Machine
The XQX2 SYSTEM is a precision desktop hand-held essential oil filling machine designed for cosmetic oil filling applications. This advanced lab-type bio-reagent tube filling system features a unique handheld manual design optimized for filling sample bottles and tubes in small-volume chemical operations.
Key Features
  • High filling precision with capacity up to 100 pieces per minute
  • Advanced high-precision ceramic pump for exceptional accuracy
  • Self-developed intuitive operating platform for ease of use
  • Compatible with honkyTech lab-type capping and recapping machines
  • Compact desktop design with handheld operation capability
Technical Specifications
Item No. -3 -6 -9 -12 -15 -18 -21 -24 -27
Filling Range 4-80ul 10-140ul 20-240ul 50-700ul 0.2-1.5ml 0.2-2.9ml 0.6-6ml 1-12ml 2-25ml
Bore Diameter Φ4 Φ5 Φ7 Φ10 Φ13 Φ15 Φ22 Φ25 Φ36
Power Rate 75w 75w 75w 150w 150w 150w 240w 240w 240w
Pump Material: Ceramic parts: high purity alumina (Al2O3), zirconia (ZrO2), silicon carbide (SiC), etc. Metal part: 316L stainless steel
Accuracy: Better than ±0.5%
Motor Type: 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86
Power Supply: AC220V 50/60Hz (or 110V)
RPM Range: 450 | 350 | 300 | 250 | 200
Product Display

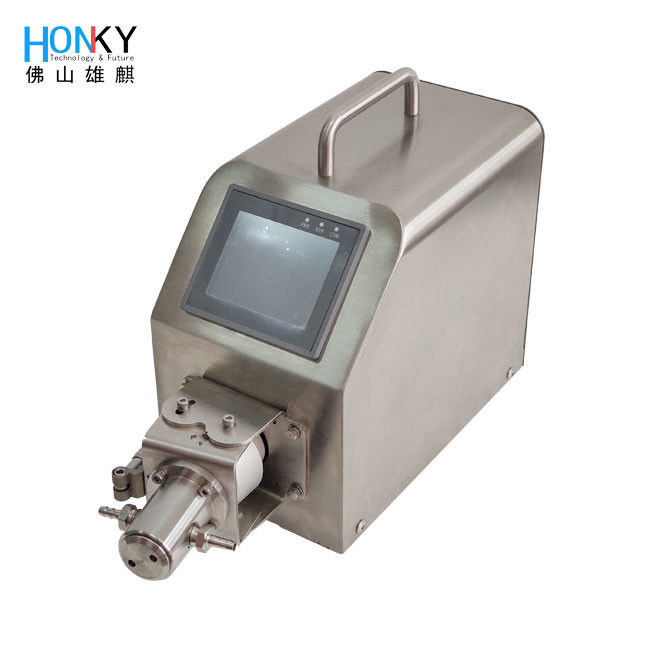

Hand Held 5ml Essential Oil Filling Machine with High Filling Precision and Ceramic Pump for 120 PCS/MIN Cosmetic Oil Filling 0
Front showing, Easy operating mode. It can be worked with pedal or works automatically.

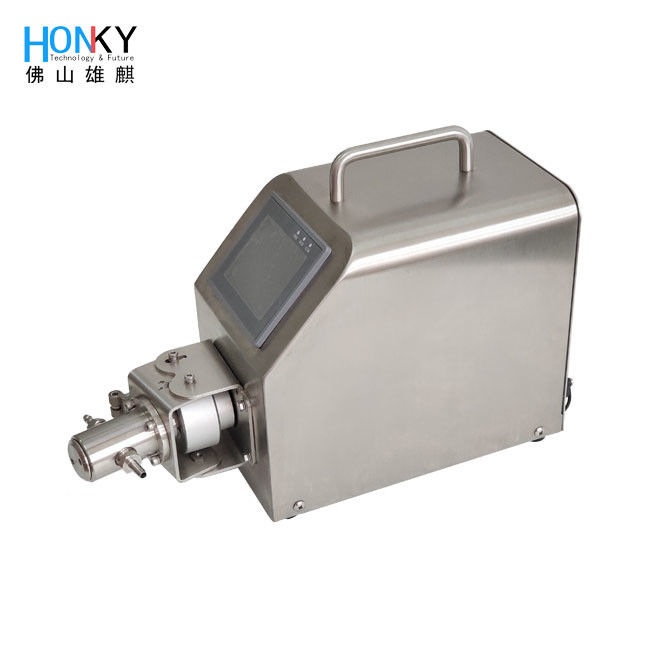

Hand Held 5ml Essential Oil Filling Machine with High Filling Precision and Ceramic Pump for 120 PCS/MIN Cosmetic Oil Filling 1
Ceramic Pump Advantages
  • Low Friction, Increased Packing Life
  • Extreme Wear Resistance
  • Increased Corrosion Resistance
  • Improved Anti-Galling Surface
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd (HONKY) is a leading manufacturer of fluid filling solutions. Our product range includes ceramic pumps, ceramic pump filling line series, spare parts, filling equipment, and custom ODM solutions. HonkyTech products are renowned for their quality, reliability, and operational efficiency.
