Desktop 5ml Vial Filling Machine Small Filling Line With Automatic Filling Function For Cosmetic Oil Filling
Characteristic of Desktop 5ml Vial Filling Machine Small Filling Line
The XQX2 SYSTEM is a compact, lab-type desktop filling line tailored for sample bottle filling and the small-volume chemical filling industry. It features a user-friendly conveyor design that ensures ease of use. With a filling speed of up to 60 PCS per minute, the system incorporates a high-precision ceramic pump in the filling section to guarantee accuracy. The self-developed operating system is intuitive and straightforward to operate. Additionally, it can seamlessly integrate with the honkyTech lab-type capping and recapping machine, enhancing the overall rapid test speed.
Technical parameters of Desktop 5ml Vial Filling Machine Small Filling Line
| Item No. |
-3 |
-6 |
-9 |
-12 |
-15 |
-18 |
-21 |
-24 |
-27 |
| Pump Material |
Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
| Metal part: 316L stainless steel |
| Filling Range |
4-80ul |
10-140ul |
20-240ul |
50-700ul |
0.2-1.5ml |
0.2-2.9ml |
0.6-6ml |
1-12ml |
2-25ml |
| Bore Diameter |
Φ4 |
Φ5 |
Φ7 |
Φ10 |
Φ13 |
Φ15 |
Φ22 |
Φ25 |
Φ36 |
| RPM |
450 |
350 |
300 |
250 |
200 |
| Accuracy |
Better than ±0.5% |
| Motor Type |
2 phase 4 line No.42 |
2 phase 4 line No.57 |
2 phase 4 line No.86 |
| Power Supply |
AC220V 50/60Hz (or 110V ) |
| Power Rate |
75w |
75w |
75w |
150w |
150w |
150w |
240w |
240w |
240w |

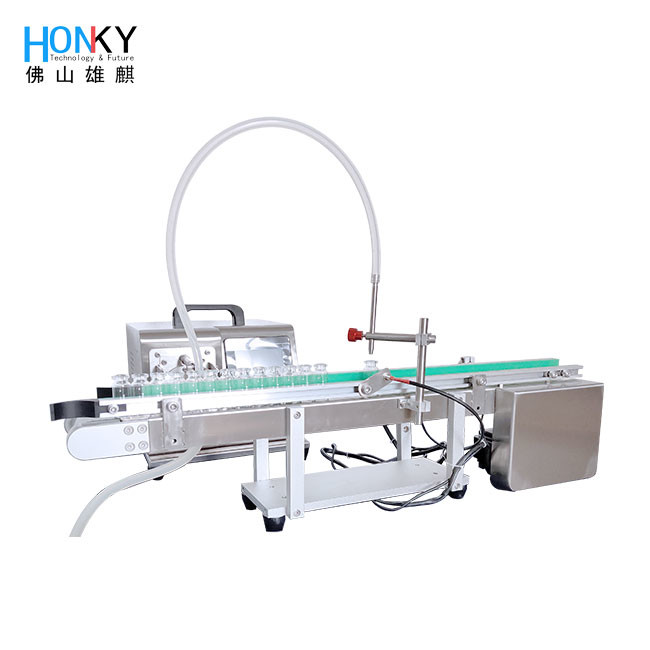

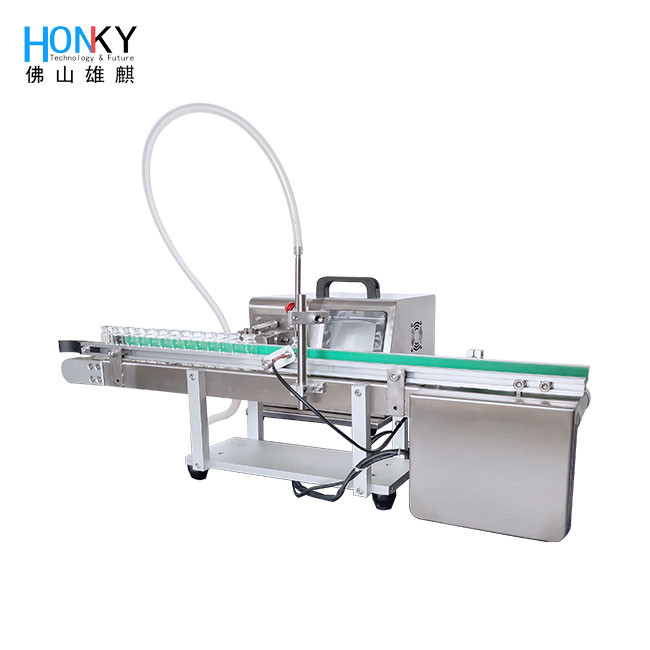

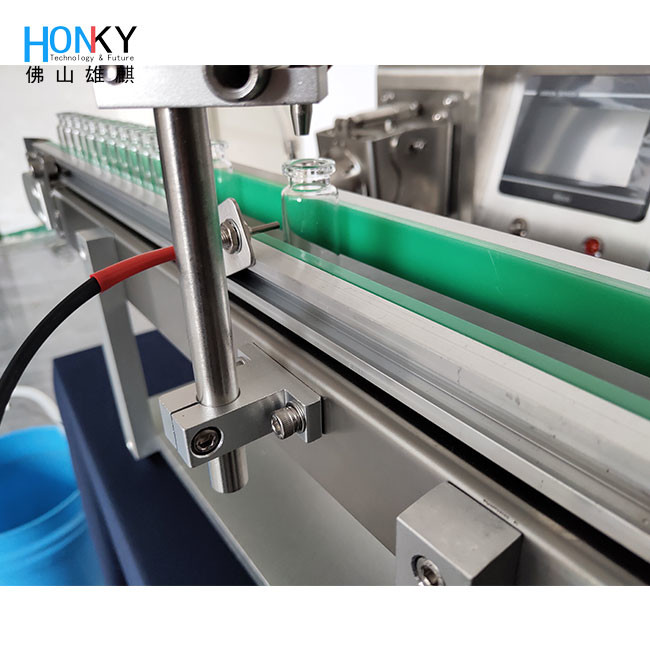

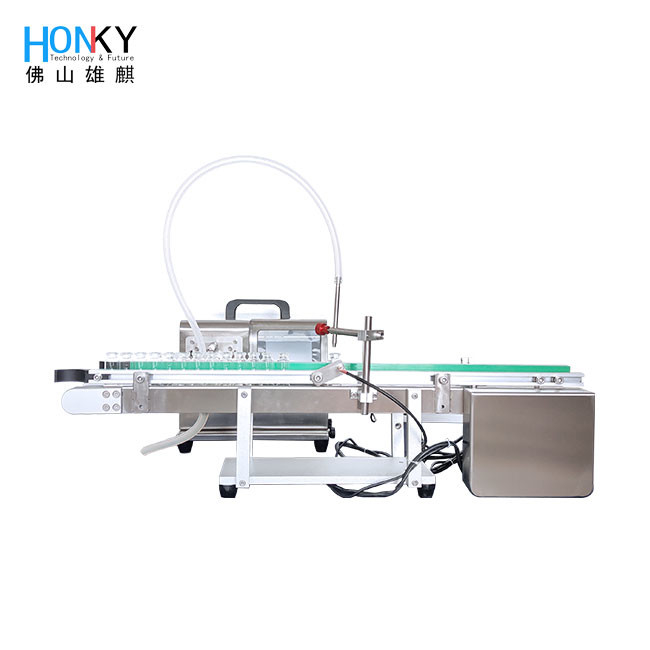

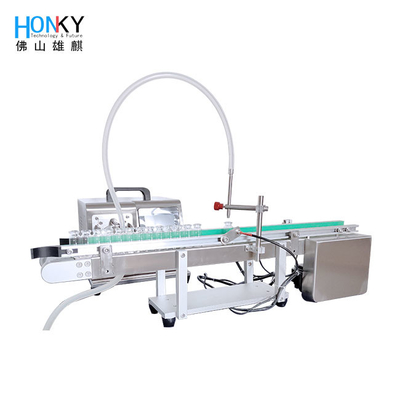

Product display of Desktop 5ml Vial Filling Machine Small Filling Line

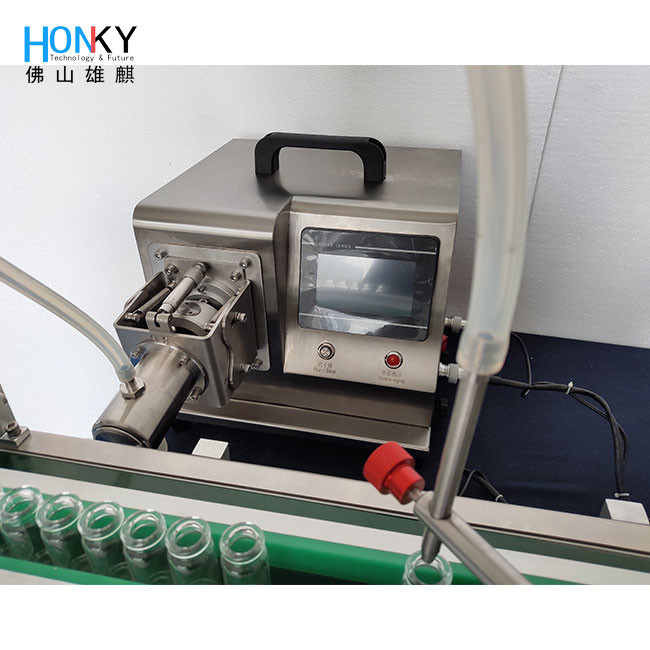

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
