| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQHB Series |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Use For: | MEDICAL, Chemical And Comestic And Food Packing Machine | Pump Range: | 1-32ml Max |
|---|---|---|---|
| Core Part Made By: | High Purity Ceramic | Adjustment: | Screen And Servo Motor |
| Pump Diemsion: | Customizing | Noise Range: | ≤65dB |
| Power Range: | 0.75-1KW | ||
| Highlight: | Sauce Cream Paste Ceramic Filling Pump,30ml Ceramic Filling Pump,Multiple Channel Ceramic Filling Pump |
||
Servo Motor Control Sauce Cream Paste Electric Ceramic Filling Pump 30ml With Multiple Channel For Product Packing Machine
The HBD-RN ceramic pneumatic pump integration features an innovative design that incorporates a precision ceramic plunger. This unique plunger design makes the pump exceptionally well-suited for handling medium and high viscosity liquids, as well as homogeneous creams with viscosities ranging from 1000 to 100,000 CPS (centipoise). Furthermore, it is capable of providing precise quantitative perfusion for materials that contain certain particles, demonstrating its versatility and reliability in a wide range of applications.
The pump boasts remarkable metering accuracy and repeatability, ensuring consistent performance in every use. The accuracy of the pump is superior, maintaining a precision level better than ±0.8% to 1%, which is crucial for applications requiring meticulous control over the dispensed volumes.
Moreover, the metal components that come into direct contact with the pumped materials are crafted from high-quality 316L stainless steel. This material choice is deliberate, as 316L stainless steel possesses exceptional corrosion resistance properties. This ensures that the pump maintains its integrity and operational efficiency even when exposed to aggressive or corrosive media, thereby extending its lifespan and reducing the need for frequent maintenance or replacements.
Parameter of Servo Motor Control Sauce Cream Paste Electric Ceramic Filling Pump
|
Model |
Plunger diameter(mm) |
Stroke(mm) |
Volume |
Accuracy |
Speed |
| ml | CPM | ||||
| HBD-10R3 | 20 | 50 | 1-10 | ±0.5-1% | 30-45 |
| HBD-30R3 | 30 | 3-30 | |||
| HBD-50R3 | 38 | 5-50 |

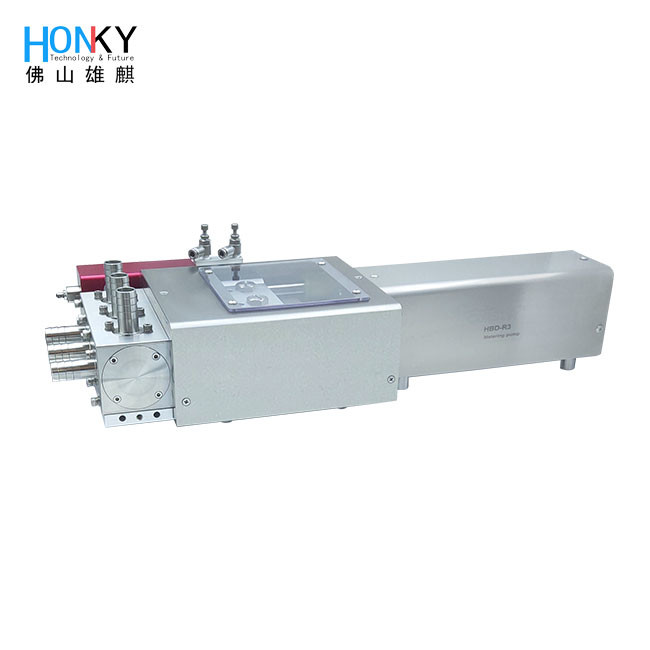

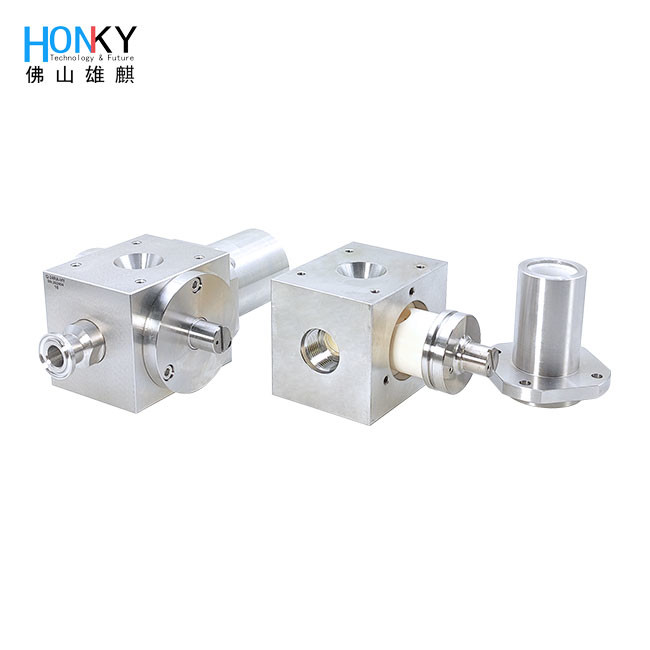

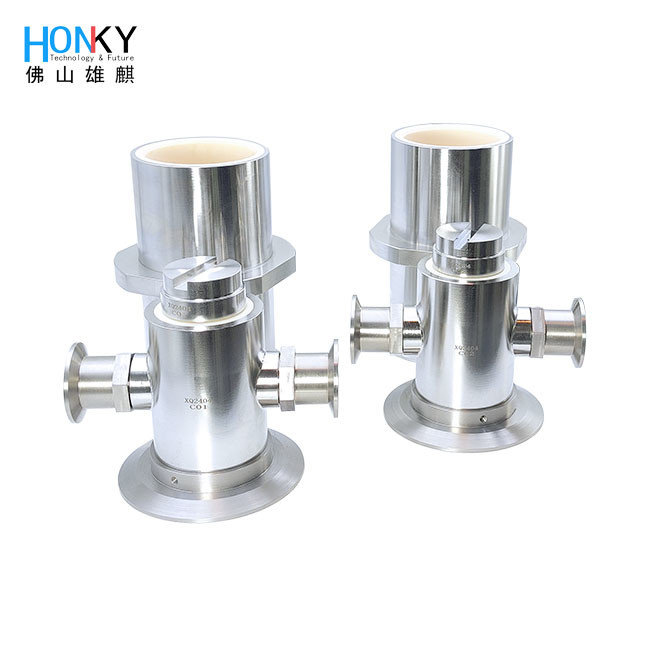

Product display of Servo Motor Control Sauce Cream Paste Electric Ceramic Filling Pump
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
