Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQET-4S |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Machine For: | Tube Filling And Sealing | Filling Pump Range: | 100-1000 Ul, ±1% |
|---|---|---|---|
| Speed: | 60 Bottle Per Minute | Bottle For: | Extration Tube |
| Filling Pump: | Ceramic Pistion Pump | Machine Size: | 90*120*130cm |
| Highlight: | High Speed Tube Filling Machine,Multiple Channel Tube Filling Machine,PCR Kit Tube Filling Machine |
||
High Speed Extraction Tube Filling And Sealing Machine With Multiple Channel For PCR Kit NCoV Test Tube Filling Device
XQET-4S is mainly used for filling and sealing extraction tubes with a rotary tray filling and sealing structure. The sealing part is the high precision aluminum foil sealing structure, which is simple and efficient and the speed is adjustable. High-precision ceramic metering pumps is applied to ensure filling accuracy within ±1%. The whole machine has a compact design to save space and fit for the GMP workshop standard.
Characteristic of High Speed Extraction Tube Filling And Sealing Machine With Multiple Channel
This equipment has been tested to meet the requirements of GMP certification.
The Reagent Tube Filler utilizes an intelligent touch operating system.
The separation section incorporates a high-purity ceramic pump, which regulates the injection volume for each cycle by adjusting the pump
head's angle. This ensures exceptional measuring accuracy and consistent repetition.
The machine features a rapid bottle mold loading system, allowing for quick and easy exchange of different bottle types.
The device incorporates German sensors to ensure that filling only occurs with a bottle present and capping only with lids available.
Custom plug or cover functions can be tailored to meet specific requirements.
The machine uses pneumatic components from a Taiwan brand.
Technical data of High Speed Extraction Tube Filling And Sealing Machine With Multiple Channel
| Model | XQET-4S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±1% |
| Filling range | 0.01-1 ml |
| Manufacturing speed | 60 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 90*120*130cm (Main machine roughly) |

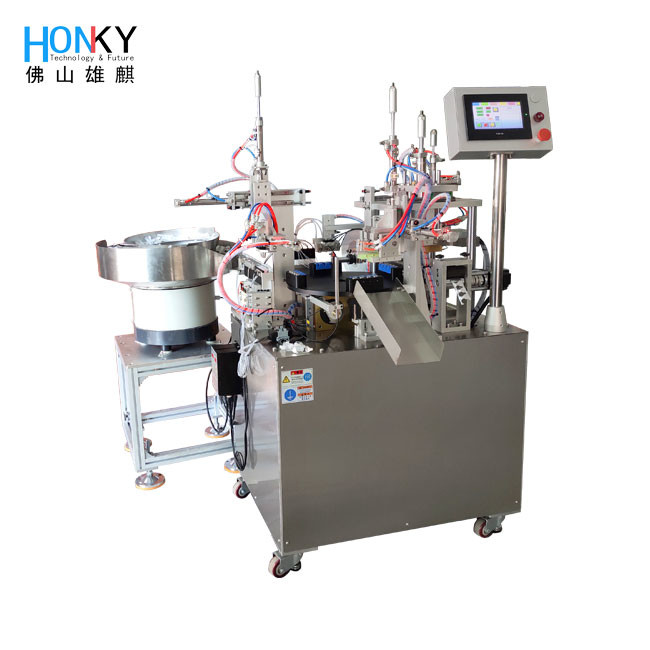

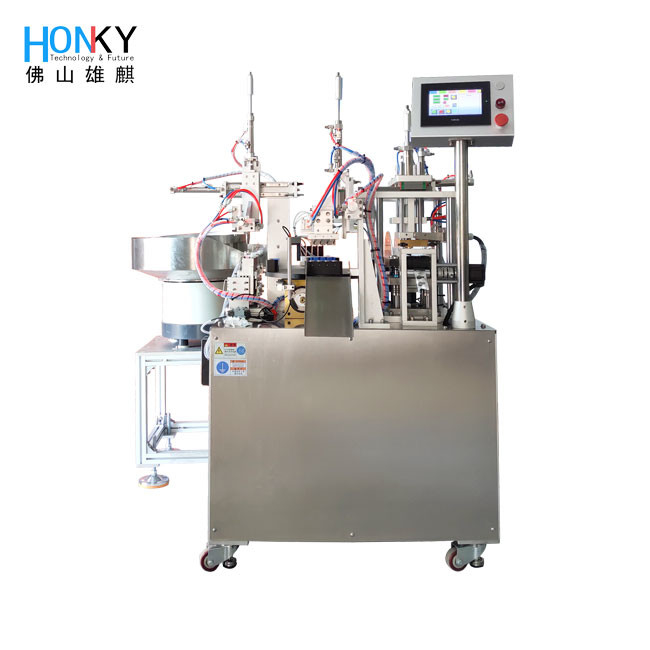

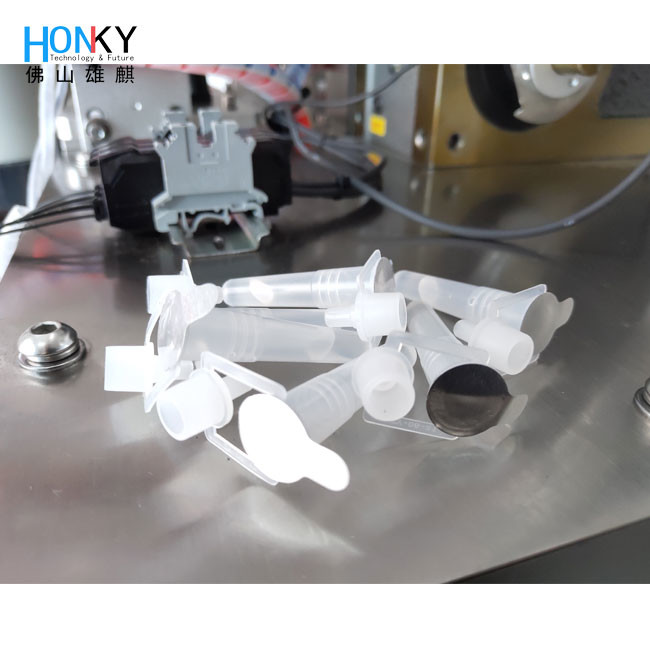

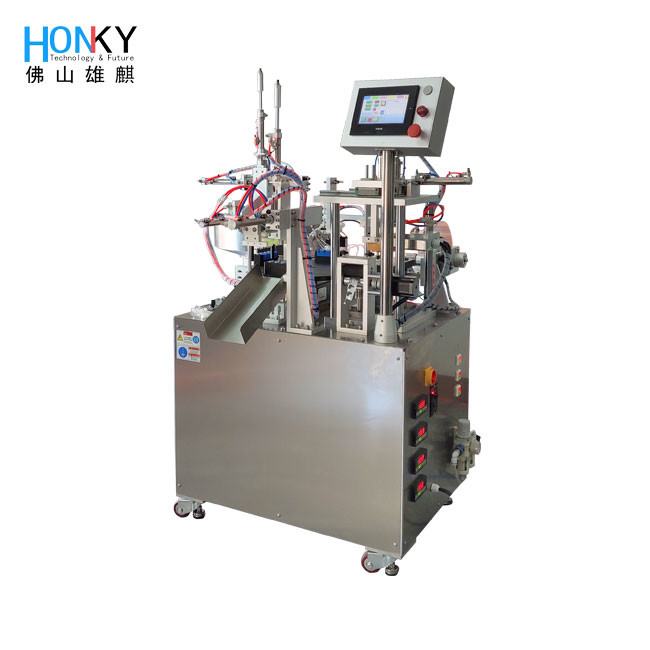

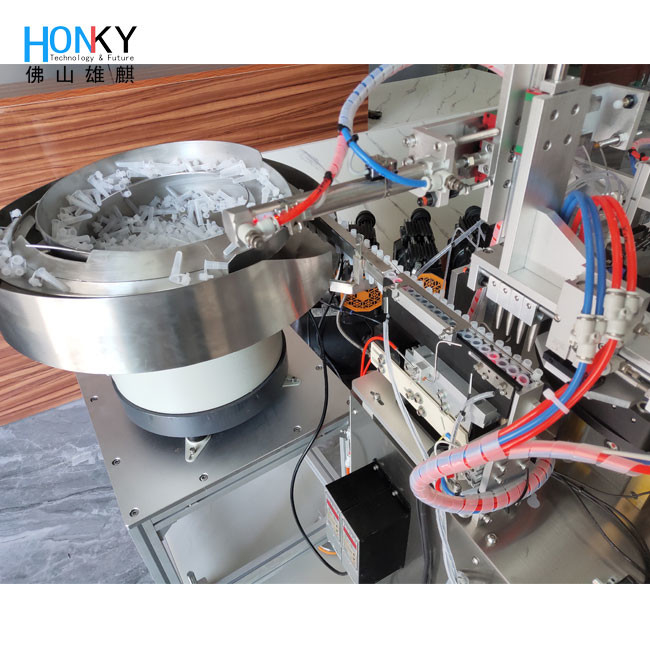

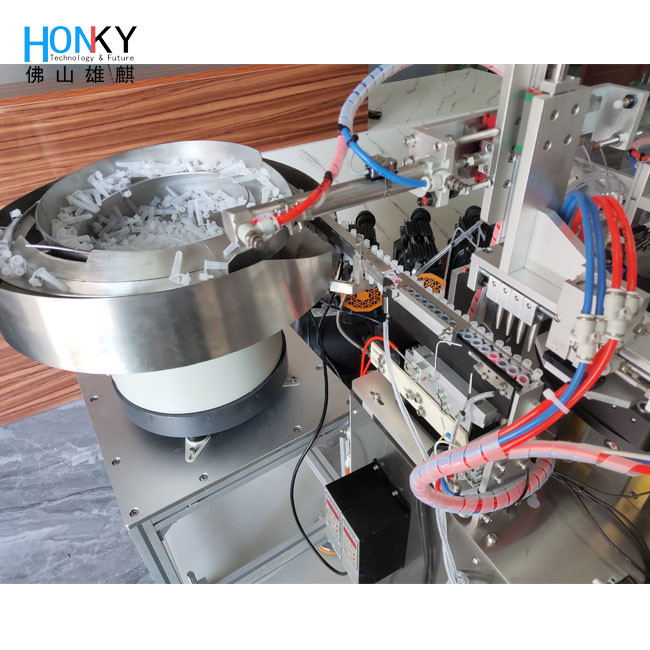

Product display of High Speed Extraction Tube Filling And Sealing Machine With Multiple Channel
This equipment has been tested to meet the requirements of GMP certification.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
