Desktop Portable Liquid Piston Pump Filling Machine With Digital Adjustment Function For Small Bottle Filling
Features of Desktop Portable Liquid Piston Pump Filling Machine
The intelligent operating system is specifically designed to set up the corresponding loading capacity directly and effortlessly through an intuitive touch screen interface. This system boasts high measurement precision and repetition consistency, ensuring accuracy in every operation.
Furthermore, it effectively avoids the unnecessary cost and waste associated with overfilling, making it a highly efficient and cost-saving solution.
The sub-parts of the system incorporate high-purity ceramic pumps or SS316L stainless steel components, depending on the specific requirements. These materials are chosen for their durability, corrosion resistance, and ability to handle a wide range of fluids without degradation.
Featuring a sleek 304 stainless steel appearance, the equipment adopts a compact desktop structure that is both practical and convenient. Its robust construction ensures long-lasting performance, while the space-saving design makes it ideal for integration into various work environments.
This equipment is particularly suited for the quantitative filling of medium and low-viscosity liquids, such as water-based solutions, oils, and other non-viscous fluids. Its precision and reliability make it an indispensable tool for a wide range of applications.
The equipment excels in precise and quantitative filling of various acid and caustic liquids, including but not limited to sulfuric acid, hydrochloric acid, sodium hydroxide, and other corrosive substances. Its advanced design and materials ensure safe, accurate, and consistent filling, making it a valuable asset in industrial and laboratory settings.
Technical parameters of Desktop Portable Liquid Piston Pump Filling Machine
| Model |
XQZSG-30-1 |
XQZSG-30T-1 |
| Material of pump head |
SS 316L |
High purity industrial ceramics |
| Filling accuracy |
0.5-1% |
| Pump head type |
According to the needs |
| Filling range |
1-30ml |
2-50ml |
1-5ml |
2-12ml |
2-30ml |
| Filling times per minute |
0-50 PCS / minute |
| Size of Host Machine |
430×550×380 mm |
| Power supply |
AC 220V 50/60Hz 400W |

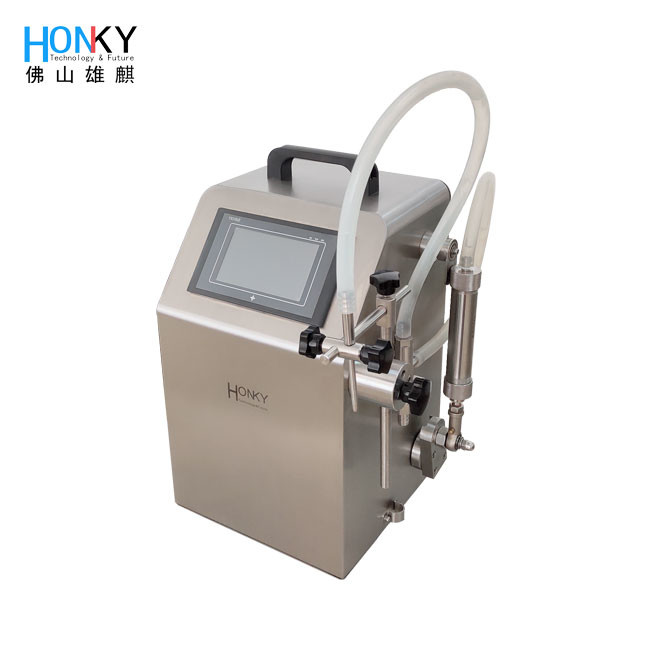

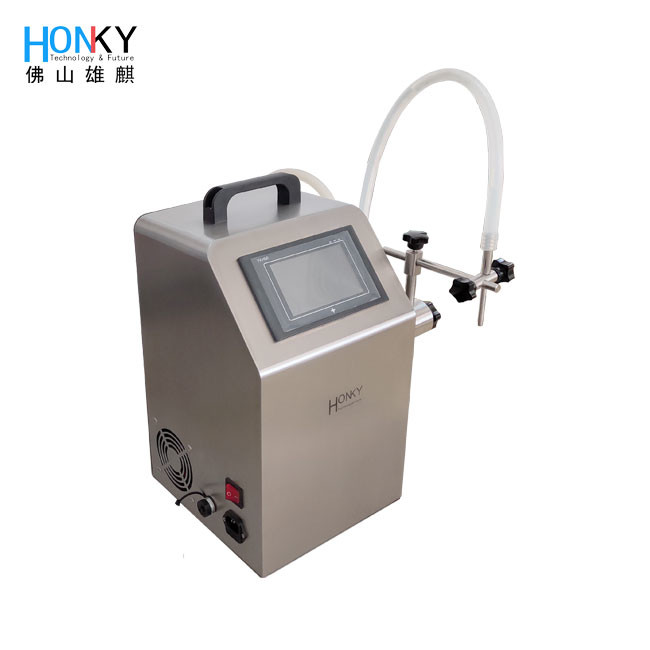

Product display of Desktop Portable Liquid Piston Pump Filling Machine

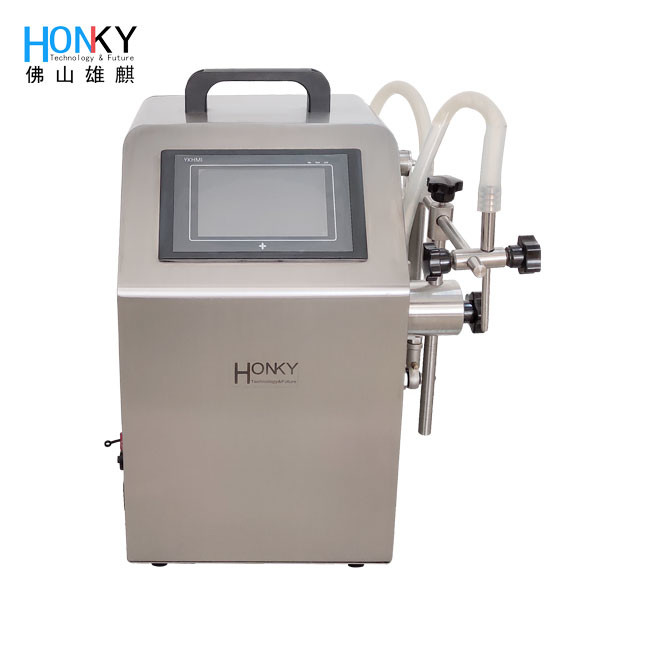

Front showing, Easy operating mode. It can be worked with pedal or works automatically.

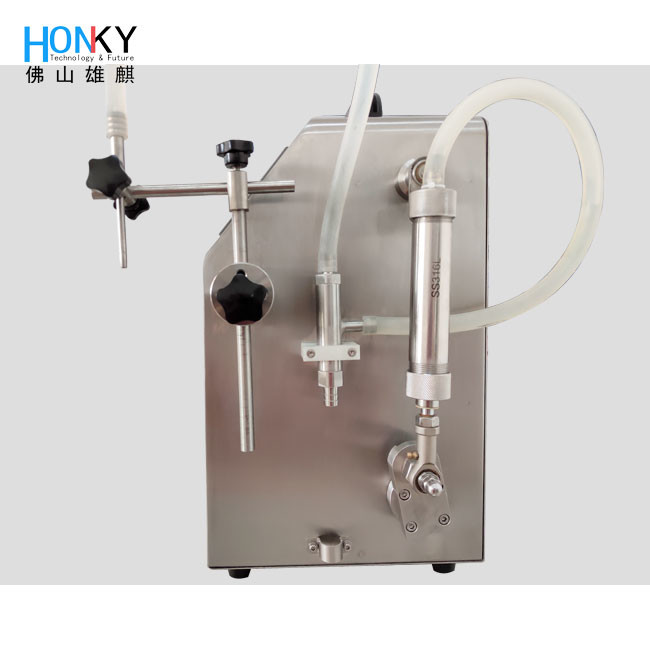

The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
