| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Type: | Air Driven | Warranty: | 12 Months |
|---|---|---|---|
| Filling Speed: | 60 Times Per Minute | Air Pressure: | 0.41-0.6Mpa |
| Application: | Chemical Industry | Filling Range: | 5-50 Ml |
| Material: | Stainless Steel And Ceramic | Temperature Range: | 0-80℃ |
| Highlight: | High Precision Ceramic Filling Piston Pump,50ml Ceramic Filling Piston Pump,Liquid Ceramic Filling Piston Pump |
||
50ml Max Check Valve Liquid Filling Piston Pump With Ceramic Cylinder For High Precision Filling
Characteristics of 50ml Max Check Valve Liquid Filling Piston Pump
The XQGX-70a features a desktop filling and capping design, tailored specifically for the manufacturing of Cryo tube packaging. It boasts a rapid load mold design, rendering it versatile for a multitude of product types. The filling pump incorporates dual XQX3 series pumps, allowing for volume adjustment via a screen interface, with a filling speed capable of reaching up to 2400 bottles per hour. The capping mechanism is equipped with a servo motor capping head, featuring adjustable torque to prevent cap damage. The machine's compact desktop design is crafted from 304 stainless steel, ensuring ease of cleaning and maintenance while maintaining a small footprint.
Industry application of 50ml Max Check Valve Liquid Filling Piston Pump
It can be used for supporting and transforming the filling part of the packaging machine. It is suitable for filling low-viscosity homogeneous liquid materials such as electrolytes, medicinal liquids, biochemical reagents, chemical liquids, essential oils, essences, and perfumes. It can be used with packaging equipment such as multi-station bag packing machines, multi-column packaging machines, and blister machines.
Parameter of 50ml Max Check Valve Liquid Filling Piston Pump
| Model | Plunger diameter |
Stroke | Volume | Accuracy | Speed | Size of the pump(mm) | |||||
| ml | CPM | A | B | C | D | E | F | ||||
| HB-10S | 25 | 25 | 1-10 | ±0.5-1% | 50-60 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 |
| HB-30S | 42 | 3-30 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 | |||
| HB-50S | 54 | 5-50 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 | |||
| HB-100S | 54 | 50 | 10-100 | 308.90 | 77 | 179.05 | 106 | 35 | φ50.50 | ||
| HB-200S | 60 | 90 | 20-200 | 450 | 97 | 199.05 | 106 | 35 | φ50.50 | ||
| HB-300S | 70 | 30-300 | 510 | 97 | 199.05 | 106 | 35 | φ50.50 | |||

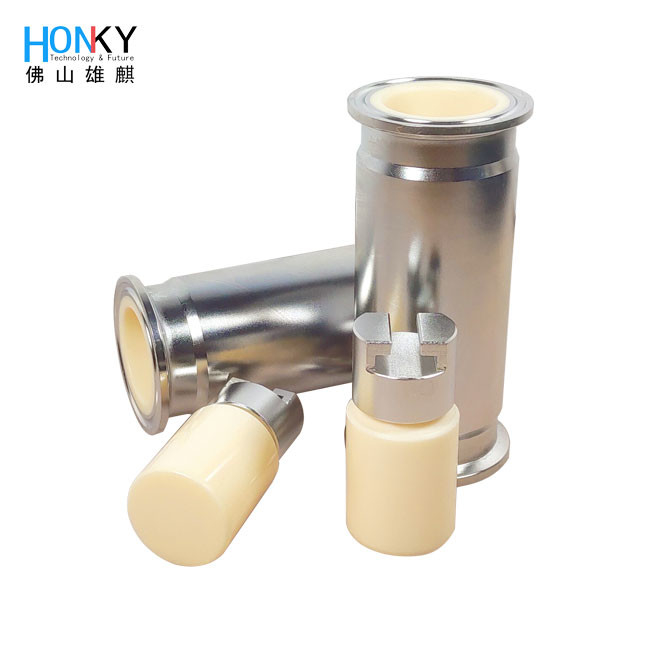

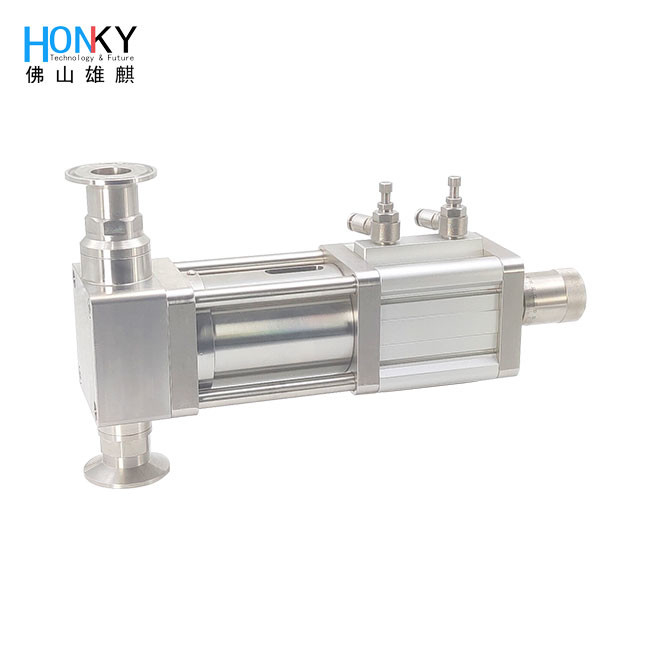

Product display of 50ml Max Check Valve Liquid Filling Piston Pump
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
