| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX2 system |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Filling Efficiency: | 30-50 PCS/MIN | Filling Error: | ±0.55% |
|---|---|---|---|
| Machien Dimension: | 351*351*351 Mm | Weight: | 19 KGS |
| Pump Range: | 0.6-6ml XQX2 SERIES Pump | Application: | PERFUME FILLING |
| Highlight: | High Precision Desktop Filling Machine,Portable Desktop Filling Machine,Liquid Desktop Filling Machine |
||
Portable desktop micro volume filling machine liquid filling machine with high precision for bottle filling
Characteristic of Portable desktop micro volume filling machine:
The XQX2 SYSTEM is a specialized lab - type desktop bio reagent tube filling machine, designed to meet the unique needs of sample bottle/tube filling and small - volume chemical filling industries.
Its handheld manual design offers flexibility and reduces operator fatigue. With a filling speed of up to 100 PCS per minute, it significantly boosts productivity. The filling part uses a high - precision ceramic pump, ensuring accurate filling essential for medical, pharmaceutical, and chemical applications.
The self - developed operating system is simple and easy to use, accessible to operators of all skill levels. It allows for quick adjustments like setting filling volume and speed.
Notably, the XQX2 SYSTEM can work with the honkyTech lab - type capping and recapping machine. This integration upgrades the rapid test speed by automating filling and capping, enhancing overall laboratory efficiency and workflow.
Technical parameters of Portable desktop micro volume filling machine:
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc | ||||||||
| Metal part: 316L stainless steel | |||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
| RPM | 450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (or 110V ) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |
Product display of Portable desktop micro volume filling machine:

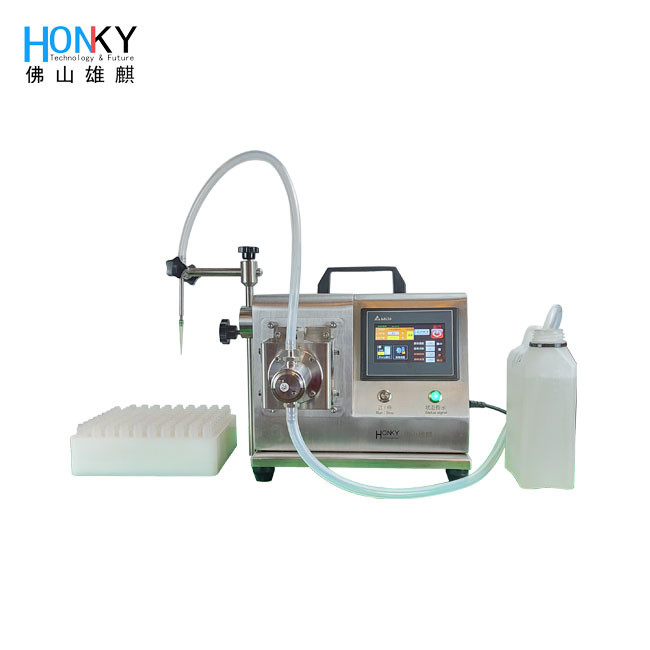

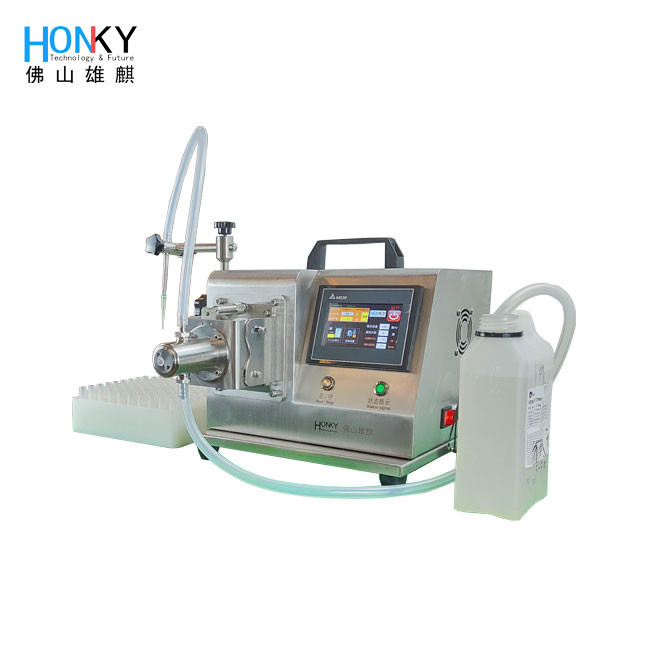

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
