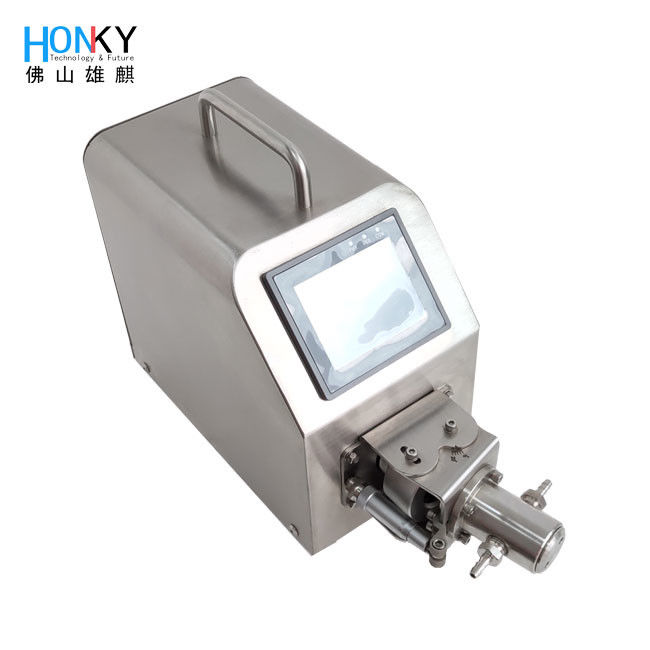

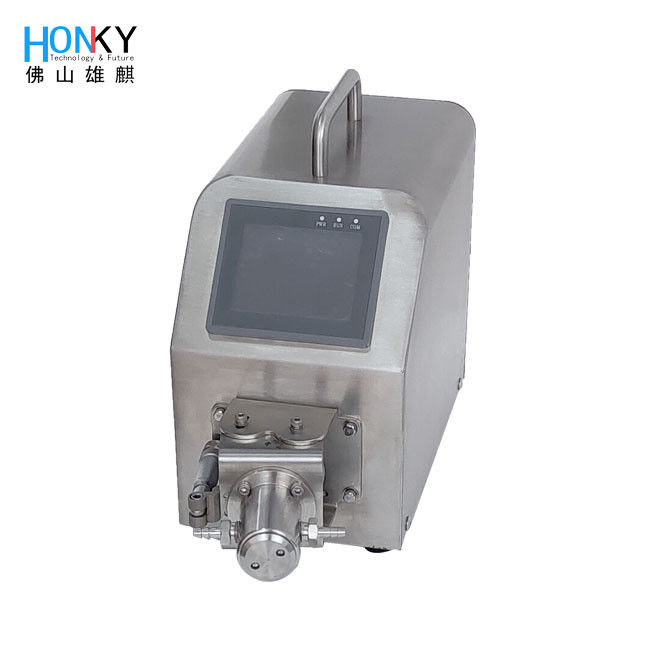

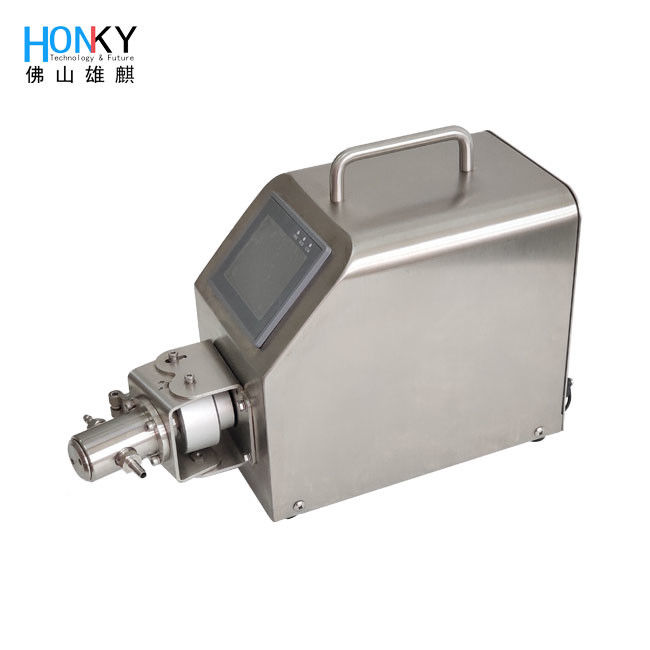

Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling

Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling

High Precision Desktop Filling Machine

Portable Desktop Filling Machine

Liquid Desktop Filling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQX2 system

Contact Us
Request A Quote
Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling
Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling
Product Details
Filling Efficiency:
30-50 PCS/MIN
Filling Error:
±0.55%
Machien Dimension:
351*351*351 Mm
Weight:
19 KGS
Pump Range:
0.6-6ml XQX2 SERIES Pump
Application:
PERFUME FILLING
Highlight:

High Precision Desktop Filling Machine

,

Portable Desktop Filling Machine

,

Liquid Desktop Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(70*70*70 cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling online video

Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling

Get Best Price
Good price Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction online video

Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction

Get Best Price
Good price High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction online video

High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction

Get Best Price
Good price 1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles online video

1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles

Get Best Price
Contact Us
Contact Now
Product Description
Portable Desktop Micro Volume Filling Machine
The XQX2 SYSTEM is a specialized lab-type desktop bio reagent tube filling machine designed for sample bottle/tube filling and small-volume chemical filling applications.
Key Features
  • Handheld manual design for flexibility and reduced operator fatigue
  • Filling speed up to 100 PCS per minute for enhanced productivity
  • High-precision ceramic pump ensures accurate filling for medical, pharmaceutical, and chemical applications
  • Self-developed operating system with simple interface for operators of all skill levels
  • Quick adjustments for filling volume and speed settings
  • Compatible with honkyTech lab-type capping and recapping machine for automated workflow
Technical Specifications
Item No. -3 -6 -9 -12 -15 -18 -21 -24 -27
Pump Material Ceramic parts: high purity alumina (Al2O3), zirconia (ZrO2), silicon carbide (SiC), etc.
Metal part: 316L stainless steel
Filling Range 4-80ul 10-140ul 20-240ul 50-700ul 0.2-1.5ml 0.2-2.9ml 0.6-6ml 1-12ml 2-25ml
Bore Diameter Φ4 Φ5 Φ7 Φ10 Φ13 Φ15 Φ22 Φ25 Φ36
RPM 450 | 350 | 300 | 250 | 200
Accuracy Better than ±0.5%
Motor Type 2 phase 4 line No.42 2 phase 4 line No.57 2 phase 4 line No.86
Power Supply AC220V 50/60Hz (or 110V)
Power Rate 75w 150w 240w
Product Display
Portable Desktop Micro Volume Filling Machine with High Precision Ceramic Pump for 30-50 PCS/MIN Liquid Filling 0

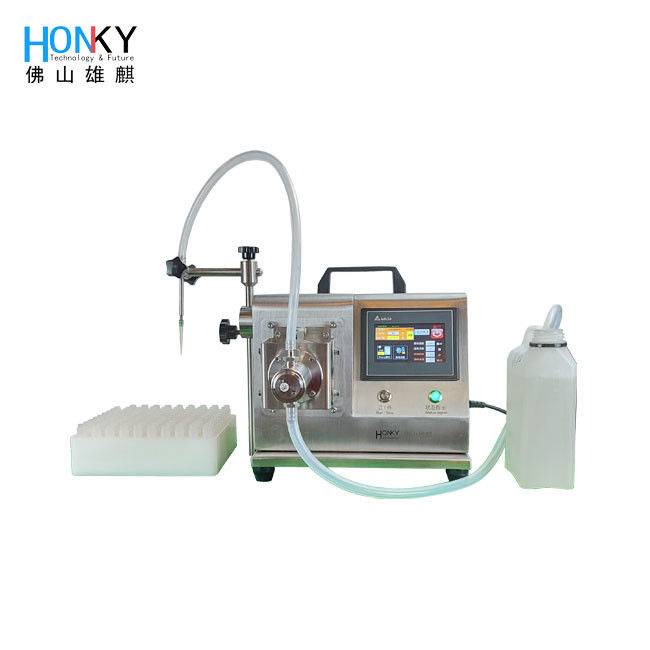

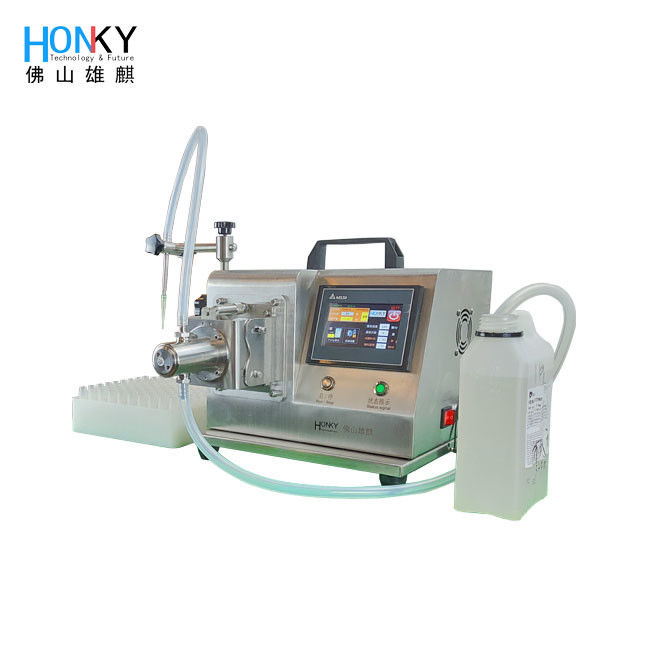

Front view showing easy operating mode. Can be operated with pedal or works automatically.
Close-up view of precision ceramic pump filling mechanism with ±0.3% repeated accuracy
The filling part uses independently developed precision ceramic pump technology with repeated accuracy reaching ±0.3%.
Frequently Asked Questions
Do you offer OEM services, I am a distributor from overseas?
Yes, we offer both OEM services and technical support. Welcome to start your OEM business.
How about the after-sales service?
The machine includes a 1-year warranty. We offer lifetime after-sale service and technical support.
What are your Installation Services?
Installation services are available with all new machine purchases. We provide user manuals and videos for installation, debugging, and operation guidance.
What info will be needed to confirm machine models?
  • The material status
  • Filling range
  • Manufacturing speed
  • Requirements for the production process
