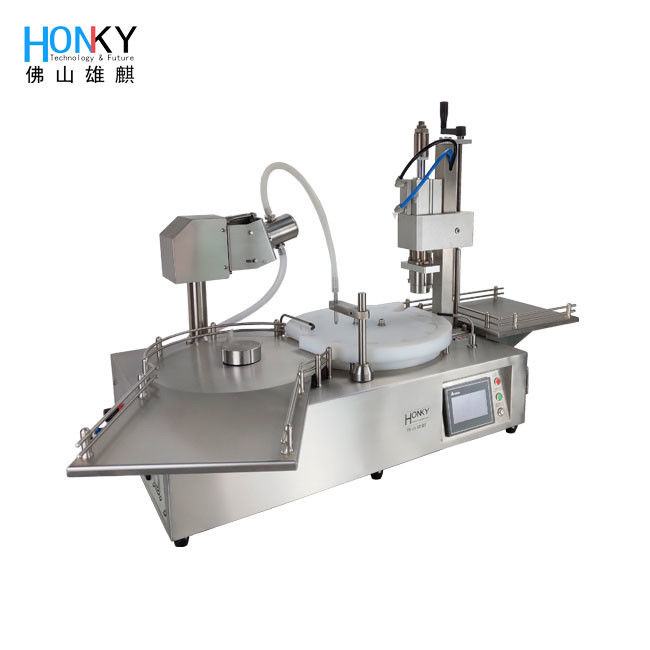

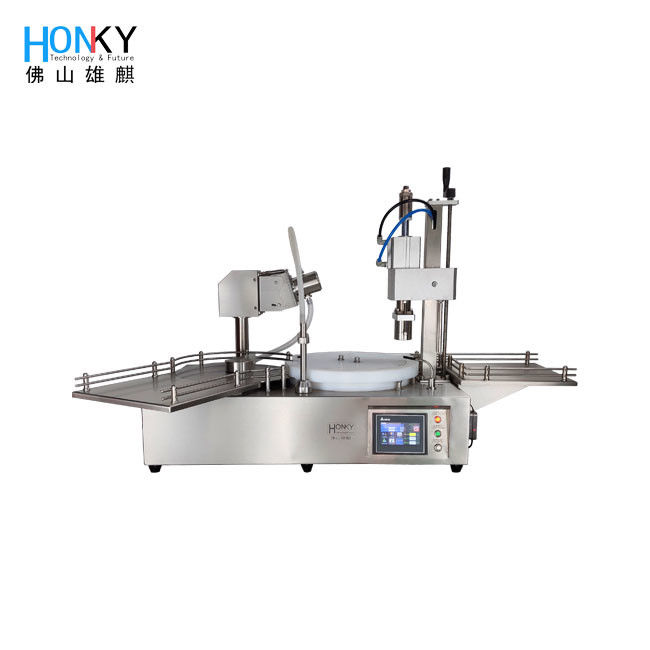

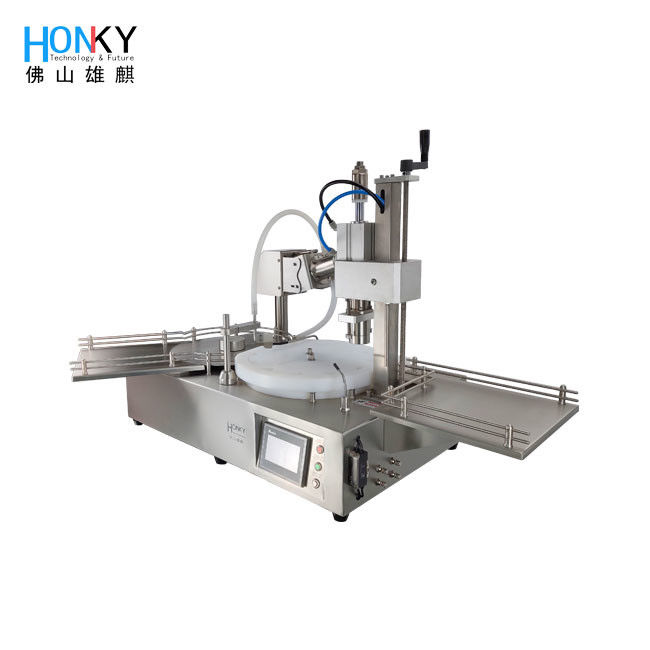

Desktop Lab 5ml Vial Filling and Crimping Machine
The XQGM-30A desktop lab vial filling and crimping machine combines precision filling and cap crimping functions in a compact, efficient package designed for small-batch manufacturing and laboratory applications.
Key Features
The XQGM-30A integrates filling and cap crimping functions with an hourly efficiency of 1800 bottles, making it ideal for flexible small-batch production runs. The machine utilizes the XQX2 series high purity ceramic pump, which delivers exceptional measuring accuracy and precise volume control to maintain consistency across all bottles. This pump also provides remarkable repeated consistency, minimizing product waste even after extended use.
Equipped with a self-developed control system, the XQGM-30A offers optimized performance and easy parameter adjustment. The integration of renowned brand air components ensures reliable operation and stable performance, significantly reducing breakdowns and maintenance requirements.
This equipment has undergone rigorous testing and meets GMP certification requirements, validating its commitment to quality standards and compliance in the manufacturing industry.
Technical Specifications
| Model |
XQGM-30A |
| Filling Range |
0.2-6ml | 1-12ml | 2-25ml |
| Filling Accuracy |
≤0.5% |
| Sealing Diameter |
φ13mm / φ15mm / φ20mm |
| Manufacturing Speed |
12-22 PCS/min |
| Power |
AC 220V 50-60Hz 600W |
| Air Pressure |
0.4-0.5Mpa |
| Host Machine Size |
1230*780*600(mm) |

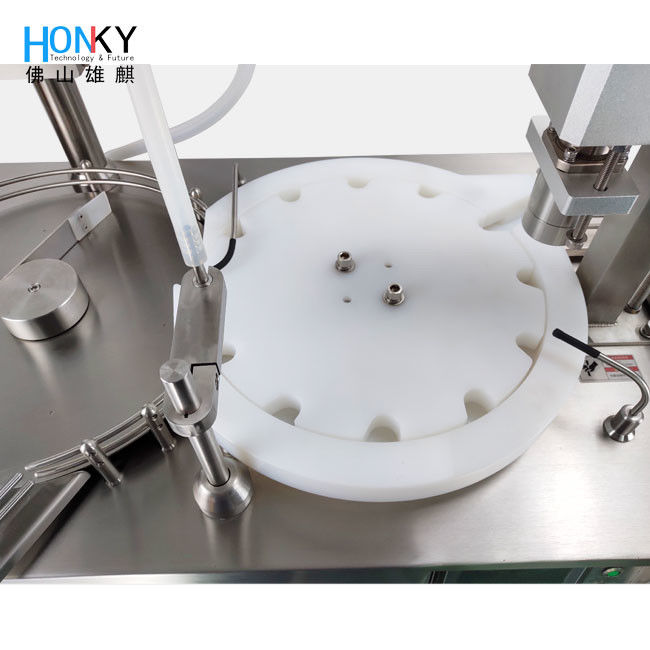

Product Display
This equipment has been tested to meet the requirements of GMP certification.

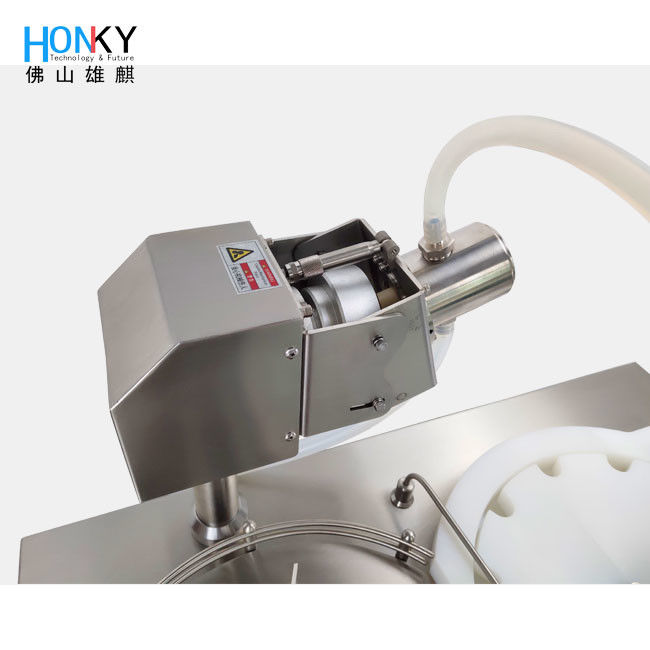

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Ceramic Pump Advantages
- Low Friction, Increased Packing Life
- Extreme Wear Resistance
- Increased Corrosion Resistance
- Improved Anti-Galling Surface
Application Areas
- ODM and OEM products design
- Automatic manufacturing line design
- Cosmetic product packing
- Pharmaceutical and bio-reagent product packing
- Laboratory Liquid dispensing
- Lithium Battery Liquid dispensing
- Ceramic pump and ceramic pump part design
- Other area's material filling
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1. The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
