| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQZGD-12B |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Machien Function: | Filling And Capping | Filling Range: | 0.6-6 Ml |
|---|---|---|---|
| Power Supply: | AC 220V | Air Range: | 0.4-0.6 MPa |
| Speed: | 0-30 B/m | After-sales Service: | 12 Months |
| Filling Material: | Liquid | Bottle For: | Glass/Plastic |
| Filling Pump: | Ceramic Pump | ||
| Highlight: | High Precision Bottle Filling Machine,Mini Size Bottle Filling Machine,Customizing Bottle Filling Machine |
||
Mini Size Desktop Bottle Filling And Capping Machine With Mold Customizing For Perfume Sample Liquid Filling High Precision
Characteristic of Mini Size Desktop Bottle Filling And Capping Machine
This equipment has been tested to meet the requirements of GMP certification.
An intelligent operating system equipped with a highly responsive touch screen is utilized for seamless and intuitive user interaction.
The liquid-dividing component incorporates a high-purity ceramic pump, which meticulously controls the liquid-filling quantity of each cycle by precisely adjusting the angle of the pump head. This ensures a high degree of metering precision and repetitive consistency, making it ideal for applications requiring exact liquid dispensing.
Featuring a sleek 304 stainless steel exterior, the device boasts a robust desktop structure that combines practicality with convenience, making it suitable for various settings and ensuring durability.
The machine employs an innovative bottle mold fast loading system, allowing for the quick and easy switching between different bottle types. This enhances versatility and efficiency, enabling the machine to adapt to a wide range of bottling needs.
This advanced device incorporates German electric eye detection technology to achieve the functionality of bottling without filling, thereby preventing overflow and ensuring accurate filling levels.
The pneumatic components utilized in this machine are sourced from a reputable Taiwan brand, guaranteeing reliability, performance, and longevity in high-pressure and demanding applications.
Technical data of Mini Size Desktop Bottle Filling And Capping Machine
| Model | XQZGD-12B |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.6-6ml |
| Manufacturing speed | 25-30 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |

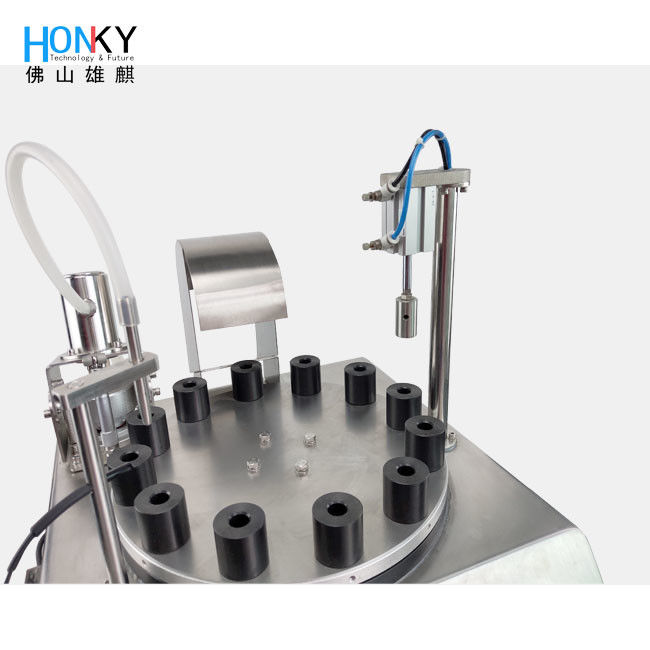

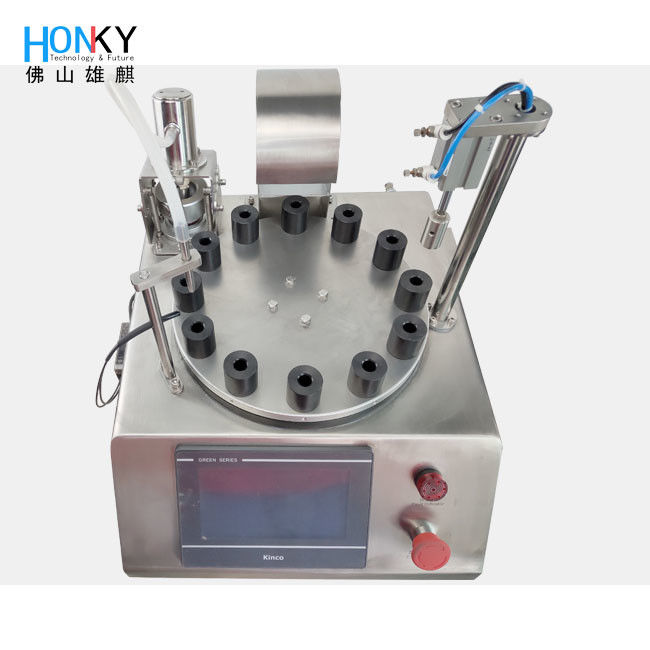

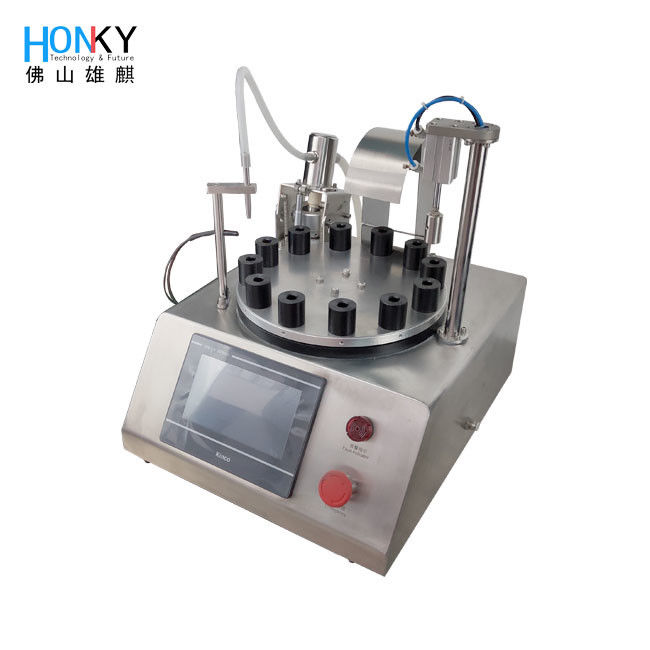

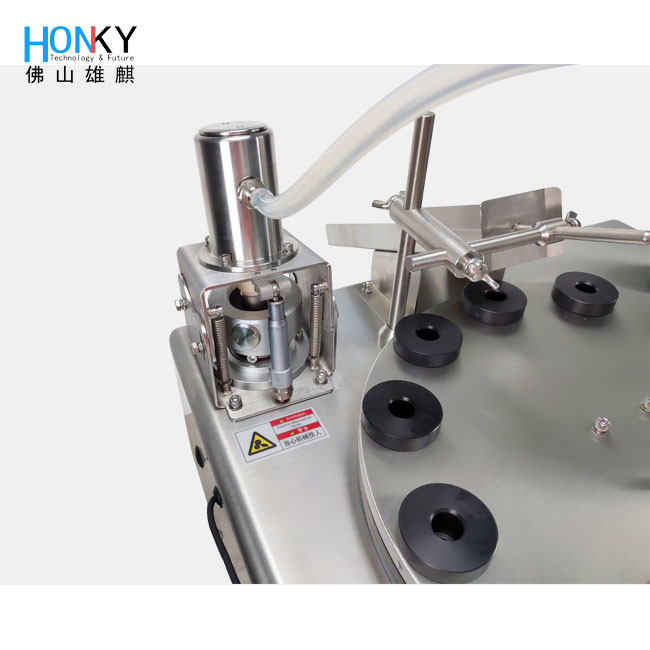

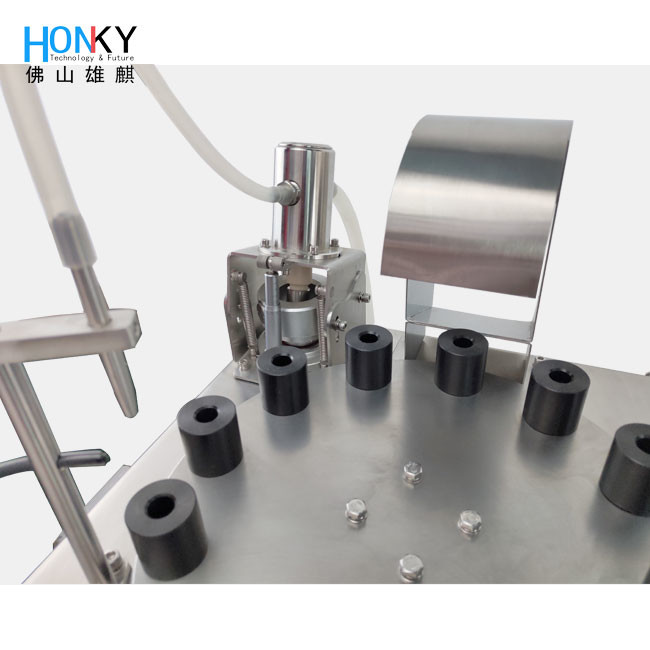

Product display of Mini Size Desktop Bottle Filling And Capping Machine
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
