Desktop 5ml Vial Filling Machine Small Filling Line With Automatic Filling Function For Cosmetic Oil Filling
Characteristic of Desktop Conveyor Type Small Vial Filling Machine
The XQX2 SYSTEM represents a cutting-edge, compact laboratory-grade desktop filling line, meticulously engineered for precision sample bottle filling and tailored to meet the demands of the small-volume chemical processing sector. This advanced system has been specifically developed to address the critical needs of research laboratories, scientific institutions, and small-batch production facilities where operational precision, process efficiency, and user-friendly functionality are of utmost importance. Incorporating innovative engineering solutions and state-of-the-art technological features, the XQX2 SYSTEM stands as an optimal solution for the accurate and rapid handling of micro-volume liquid formulations, ensuring superior performance in specialized applications.
Technical parameters of Desktop Conveyor Type Small Vial Filling Machine
| Item No. |
-3 |
-6 |
-9 |
-12 |
-15 |
-18 |
-21 |
-24 |
-27 |
| Pump Material |
Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
| Metal part: 316L stainless steel |
| Filling Range |
4-80ul |
10-140ul |
20-240ul |
50-700ul |
0.2-1.5ml |
0.2-2.9ml |
0.6-6ml |
1-12ml |
2-25ml |
| Bore Diameter |
Φ4 |
Φ5 |
Φ7 |
Φ10 |
Φ13 |
Φ15 |
Φ22 |
Φ25 |
Φ36 |
| RPM |
450 |
350 |
300 |
250 |
200 |
| Accuracy |
Better than ±0.5% |
| Motor Type |
2 phase 4 line No.42 |
2 phase 4 line No.57 |
2 phase 4 line No.86 |
| Power Supply |
AC220V 50/60Hz (or 110V ) |
| Power Rate |
75w |
75w |
75w |
150w |
150w |
150w |
240w |
240w |
240w |

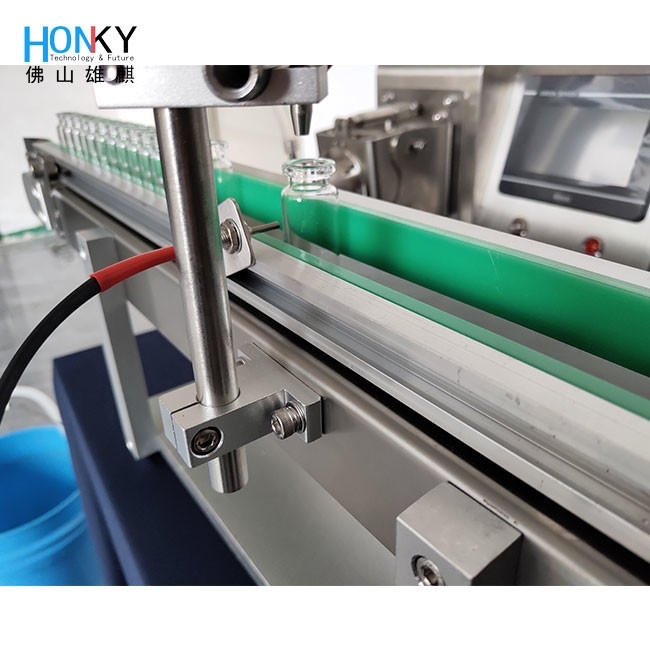

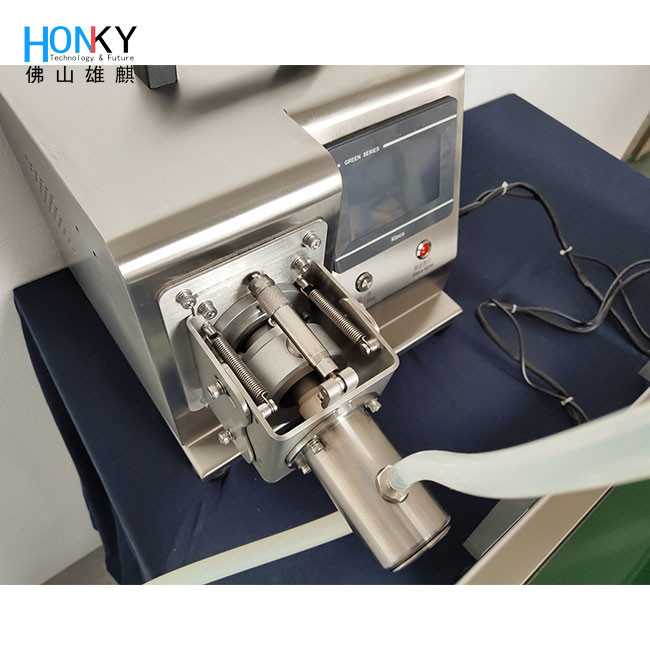

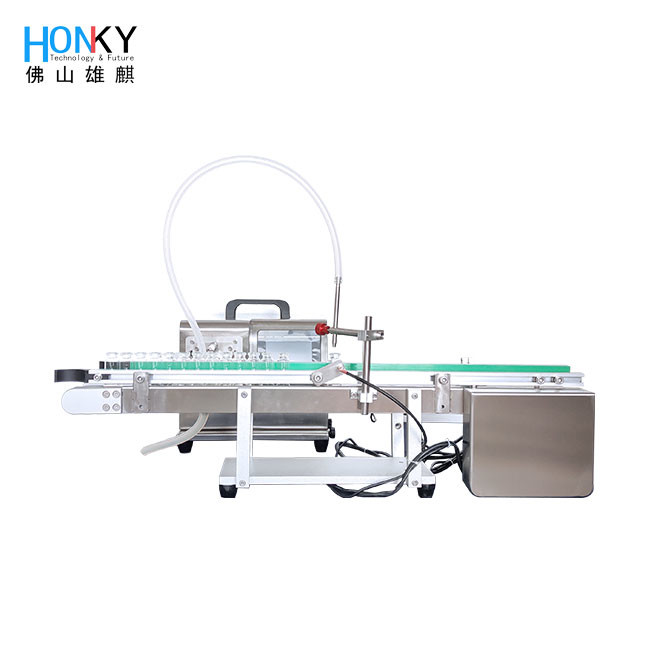

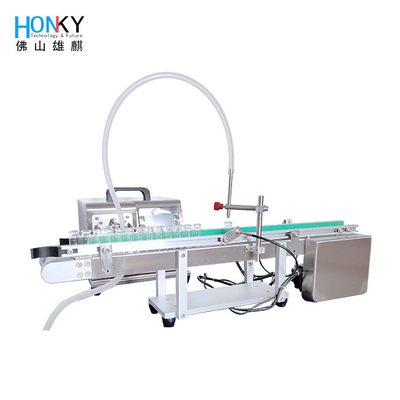

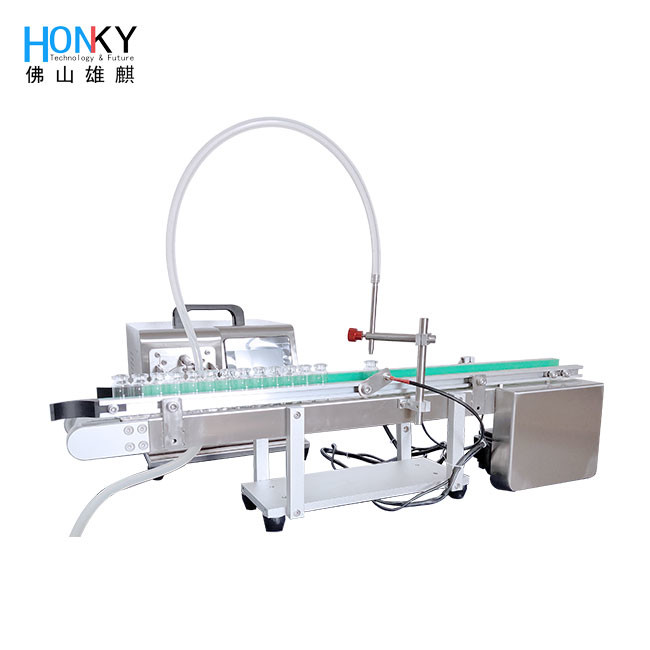

Product display of Desktop Conveyor Type Small Vial Filling Machine

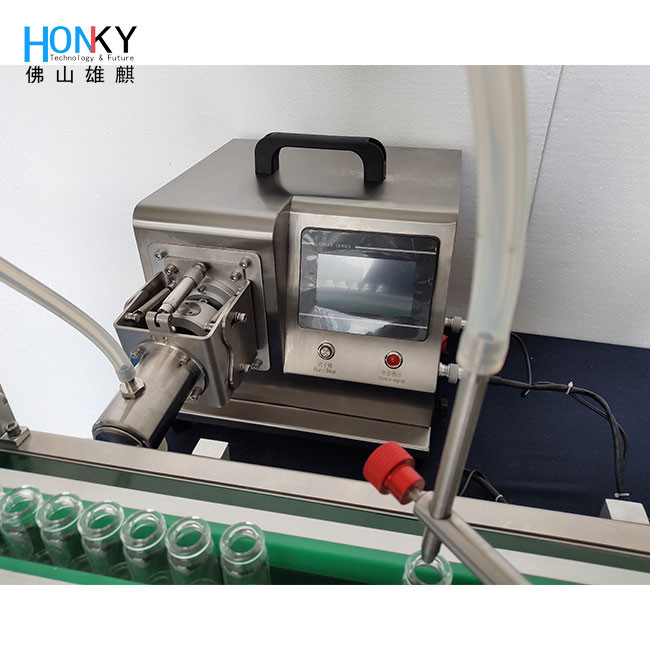

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
