Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGM-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Filling Pump Size: | 1-10 Ml | Machine Speed: | 1800 BPH MAX |
|---|---|---|---|
| Filling For: | Pharmar Liquid | Packing Type: | Glass Vial |
| Machine Dimension: | 121*85*75cm | Control System: | PLC |
| Operation Mode: | Touch Screen | Power: | 1.5kw |
Desktop Full Automatic Vial Liquid Filling And Capping Machine For Small Batch Pharma Liquid Manufacturing
Characteristic of Desktop Full Automatic Vial Liquid Filling And Capping Machine
The fully automatic 10ml vial liquid filling and capping machine is a high-precision, industrial-grade solution designed for efficient and sterile filling and sealing of 10ml vials in pharmaceutical, biotechnology, cosmetics, and other related industries. This advanced machine integrates cutting-edge automation technology to ensure accuracy, speed, and compliance with stringent production standards.
Key Features & Components
Feeding & Conveying System
·Equipped with a vibratory feeding table or belt conveyor to transport empty vials smoothly into the machine.
·Adjustable guide rails ensure proper vial alignment for seamless processing.
Precision Filling System
·Utilizes a high-accuracy ceramic piston pump for consistent, drip-free liquid dispensing.
·Adjustable filling volume (0.1ml–10ml) with ±1% accuracy, suitable for various liquids (aqueous, viscous, or volatile solutions).
·Stainless steel or PTFE fluid path options for corrosion resistance and easy cleaning.
Automatic Capping Mechanism
·A servo-driven crimping head applies uniform force to secure aluminum caps or rubber stoppers.
·Optional snap-on or screw capping for different closure types.
·Torque control ensures proper sealing without damaging vials.
Pneumatic & Sensor-Based Automation
·PLC-controlled pneumatic cylinders drive the filling and capping heads for fast, repeatable operation.
·Infrared or capacitive sensors detect vial positions in real time, triggering precise clamping to prevent misalignment.
·Fault detection (missing caps, underfilling) halts operation to ensure quality.
Hygienic & User-Friendly Design
·Constructed from 304/316L stainless steel for GMP compliance and easy sterilization (CIP/SIP compatible).
·Touchscreen HMI for intuitive parameter adjustments (speed, fill volume, capping pressure).
·Modular design allows quick changeover for different vial sizes (5ml–20ml with optional kits).
Technical data of Desktop Full Automatic 10ml Vial Liquid Filling Capping Machine
| Model | XQGM-30B | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| sealing diameter | φ13mm / φ15mm / φ20mm | |||
| Manufacturing speed | 25 PCS/min | |||
| Power | AC 220V 50-60Hz 1500W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*800*750(mm) | |||

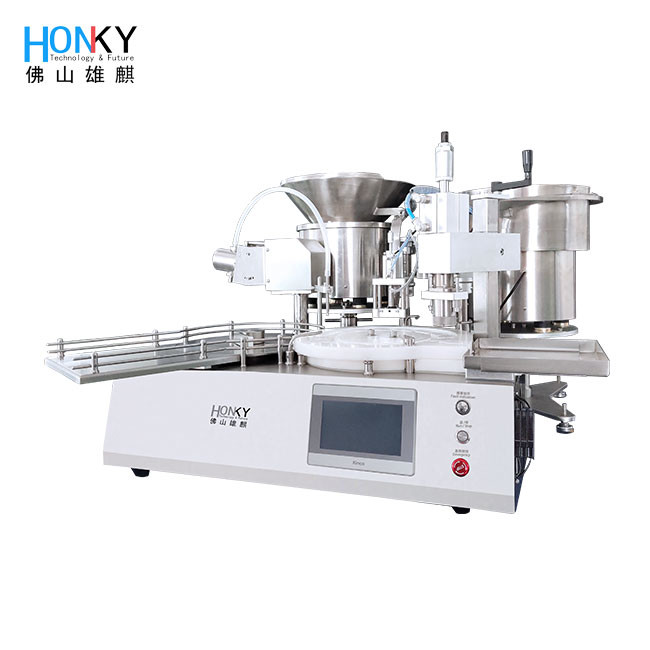

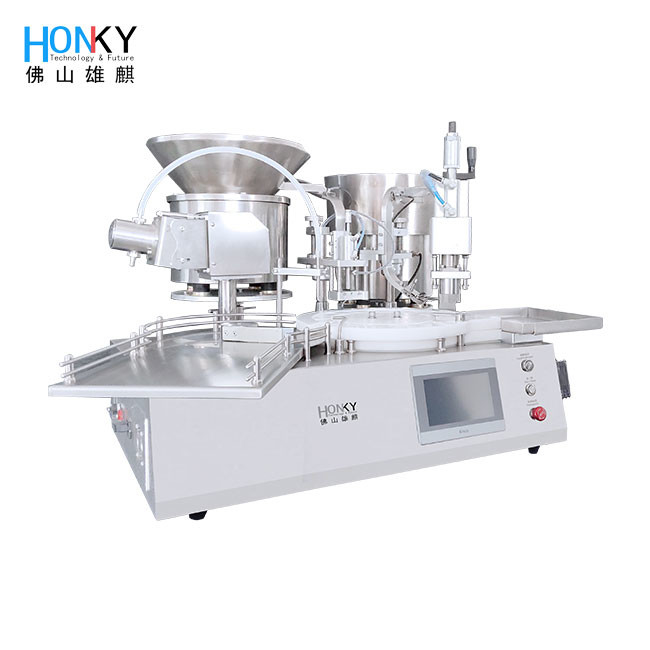

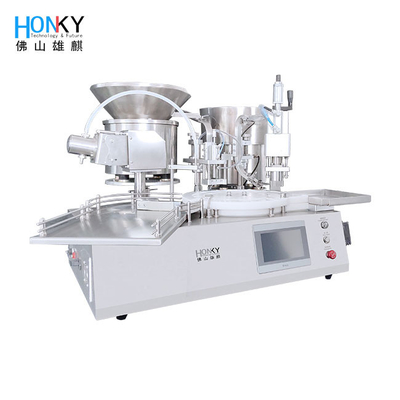

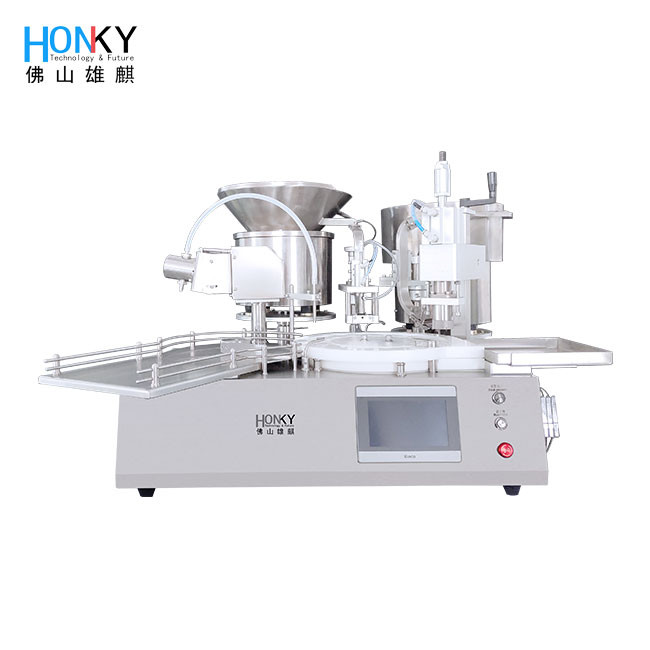

Product Display of Desktop Full Automatic 10ml Vial Liquid Filling Capping Machine
This equipment has been tested to meet the requirements of GMP certification.

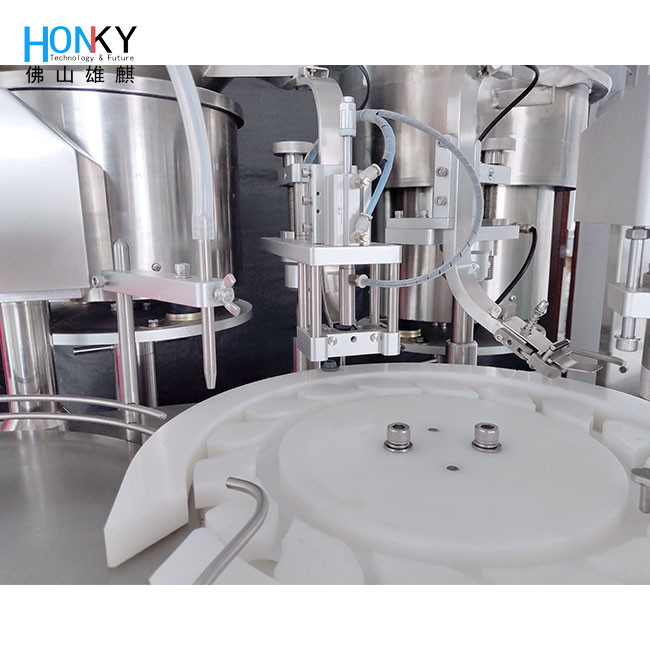

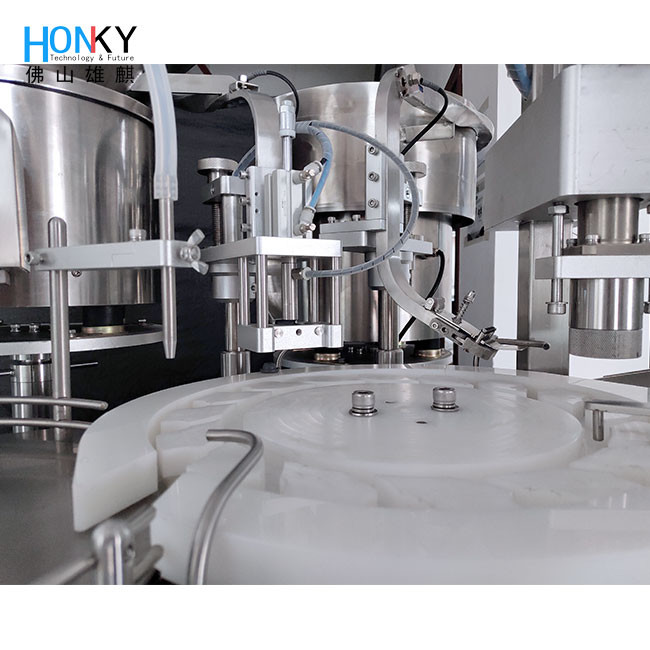

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easy.
