| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX2 system |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Machine Speed: | 30-40 PCS/MIN | Filling Accuracy: | ±0.56% |
|---|---|---|---|
| Machine Dimension: | 70*60*51 Cm | Weight: | 31 KGS |
| Pump Size: | 0.6-6 Ml XQX2 SERIES Pump | Application For: | Medical And Cosmetic |
Automatic 5ml Vial Filling Machine Small Filling Line With Bottle Feeding Conveyor For Small Business Using
Characteristic of Automatic 5ml Vial Filling Machine Small Filling Line

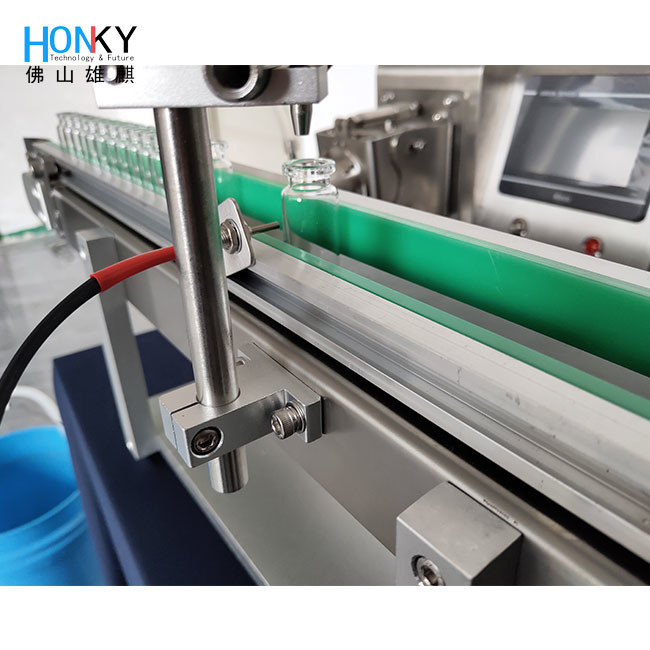

User-Friendly Conveyor Design
The system incorporates an ergonomically optimized conveyor mechanism, ensuring smooth bottle handling and minimizing operational complexity. Its intuitive layout allows for quick setup and hassle-free adjustments, reducing downtime and enhancing workflow efficiency.
High-Speed Filling Performance
With a filling capacity of up to 60 PCS per minute, the XQX2 SYSTEM significantly boosts productivity while maintaining consistency. This makes it particularly suitable for small-batch production, R&D trials, and rapid prototyping where both speed and precision are critical.

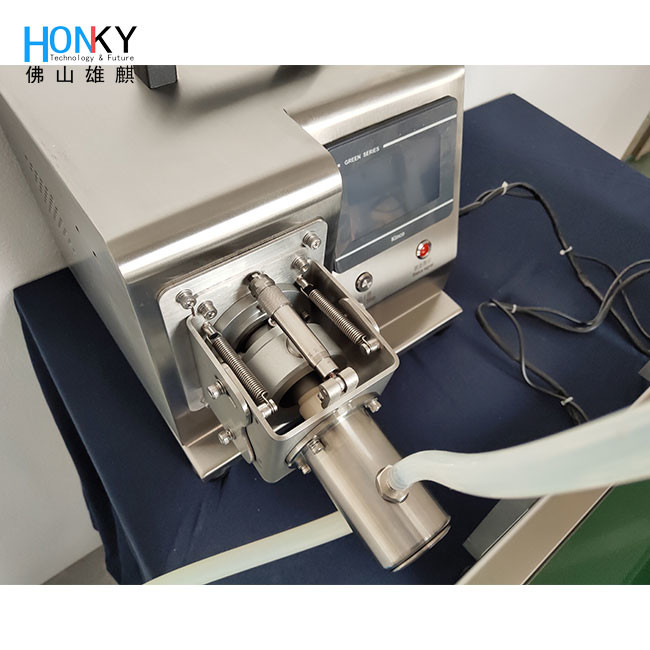

High-Precision Ceramic Pump Technology
The filling section is equipped with a state-of-the-art ceramic pump, renowned for its durability, chemical resistance, and ultra-precise dosing capabilities. This ensures ±1% filling accuracy, minimizing waste and ensuring reliable performance even with viscous or volatile liquids.
Intuitive Self-Developed Operating System
The XQX2 SYSTEM features a proprietary control interface designed for seamless operation. With a touchscreen HMI (Human-Machine Interface), users can easily adjust parameters, monitor real-time performance, and store customized filling programs for different applications.
Seamless Integration with honkyTech Capping Solutions
For a complete end-to-end filling and sealing process, the XQX2 SYSTEM can be directly coupled with the honkyTech lab-type capping and recapping machine. This integration enhances automation efficiency, reducing manual intervention and accelerating high-throughput testing and small-batch packaging.
Applications
Pharmaceutical & Biotech Labs – Precise filling of reagents, buffers, and sample vials.
Chemical & Specialty Fluids – Accurate dispensing of solvents, adhesives, and lubricants.
Cosmetics & Essential Oils – Small-batch filling for R&D and pilot production.
Food & Beverage Testing – Hygienic and consistent liquid dispensing for lab analysis.
Why Choose the XQX2 SYSTEM?
✔ Compact & Space-Saving – Ideal for benchtop use in constrained lab environments.
✔ High Accuracy & Repeatability – Ensures consistent fills with minimal variation.
✔ Fast & Flexible – Adaptable to various bottle sizes and liquid types.
✔ Smart Integration – Works seamlessly with honkyTech capping systems for a streamlined workflow.
Technical parameters of Automatic 5ml Vial Filling Machine Small Filling Line
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc | ||||||||
| Metal part: 316L stainless steel | |||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
| RPM | 450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (or 110V ) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

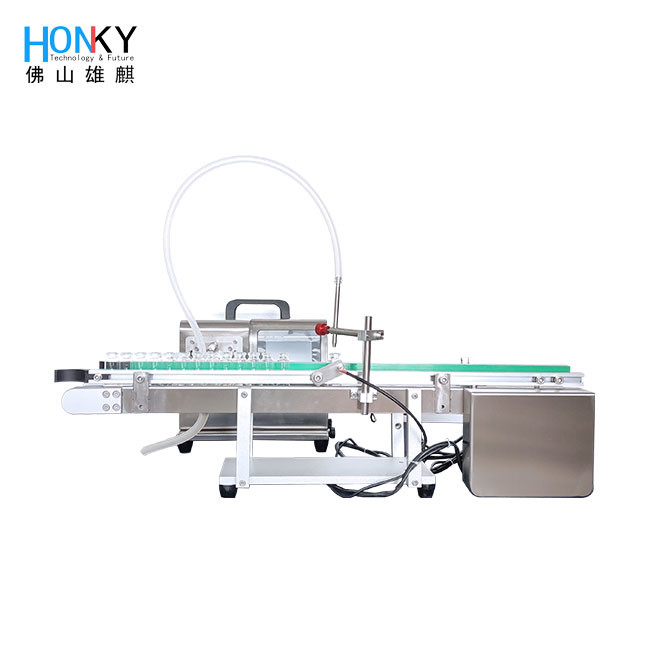

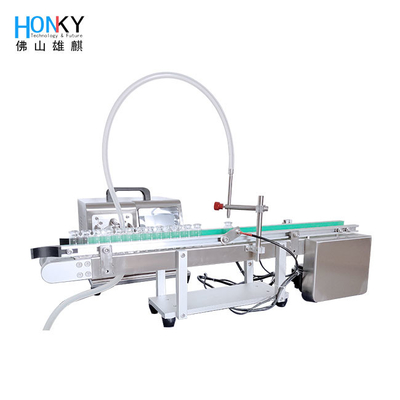

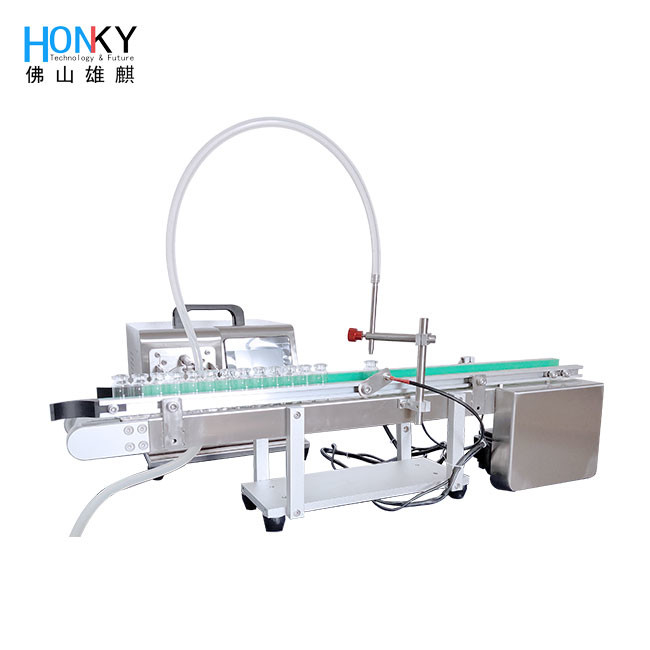

Product display of Automatic 5ml Vial Filling Machine Small Filling Line

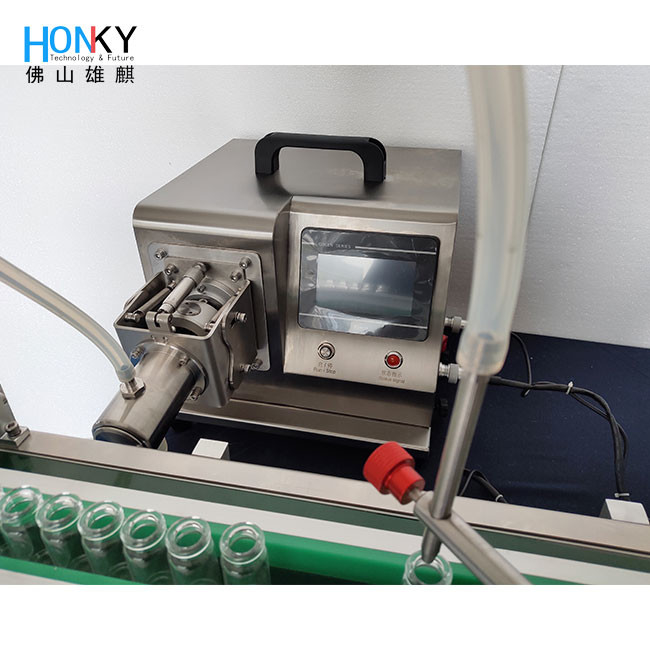

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
