| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQJZ-2S-XYZ |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Machine Speed: | 60-80 BPM | Pump Choosing: | Ceramic Pump(0.6-6ml) |
|---|---|---|---|
| Filling Error: | ±0.5% | Machine Size: | 50*50*50 Cm |
| Machine Weight: | 40 KGS | Mold: | Customized |

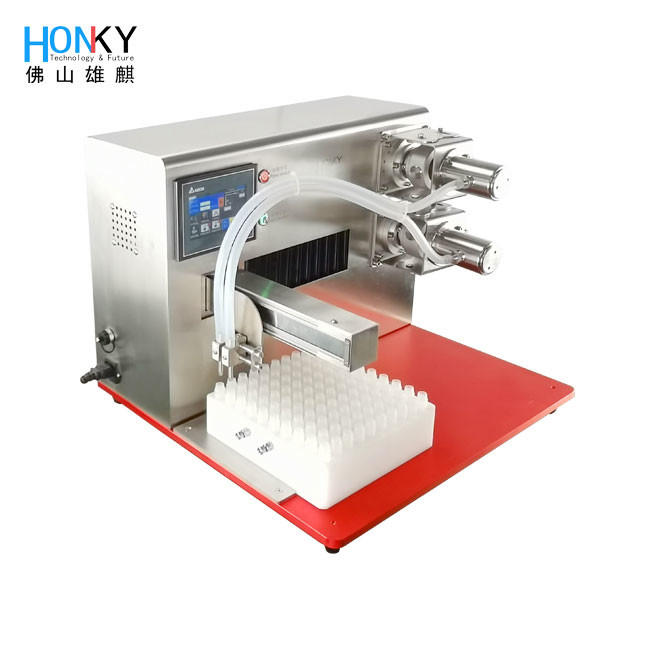

Desktop Automatic XY Axis Tube Filling Machine With Double Head Ceramic Piston Pump For Small Volume Liquid Tube Filling
Characteristic of Desktop Automatic XY Axis Tube Filling Machine:
This compact, precision tube filling machine is designed for small-volume liquid filling applications, featuring advanced automation and high-accuracy dispensing technology.
Key Features
1.XY Axis Automation: Programmable XY movement for precise tube positioning
2.Dual-Head Ceramic Piston Pump:
3.High-precision ceramic components for accurate dosing
4.Two independent filling heads for increased throughput
5.Corrosion-resistant for various liquid types
6.Small Volume Capability: Ideal for filling small tubes (typically 1-50ml range)
7.Desktop Design: Compact footprint for lab or small production environments
8.Touchscreen Interface: User-friendly programming and operation
9.Adjustable Parameters: Fill volume, speed, and positioning fully customizable
Technical parameters of Desktop Automatic XY Axis Tube Filling Machine:
| Target Products | Test tube/ampule/water needle/E-liquid bottle |
| Manufacturing speed | 130-140 PCS/min |
| Power | AC 220V 50-60Hz / 680w |
| Air range | - |

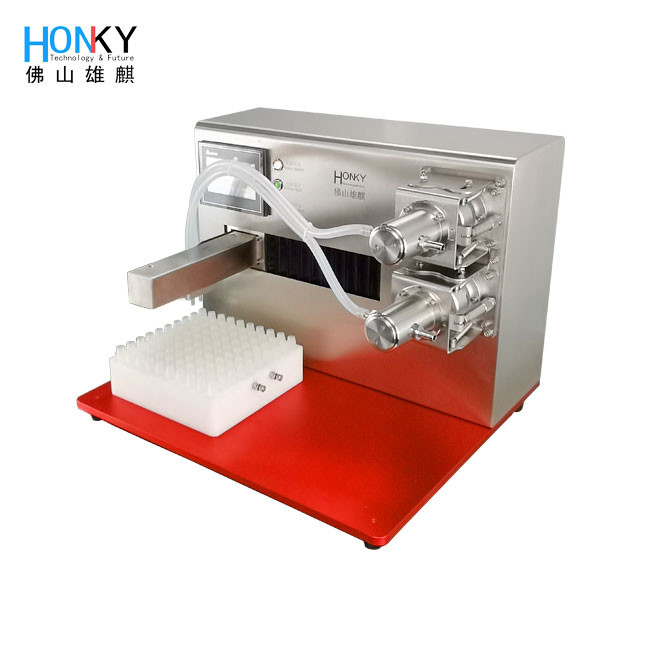

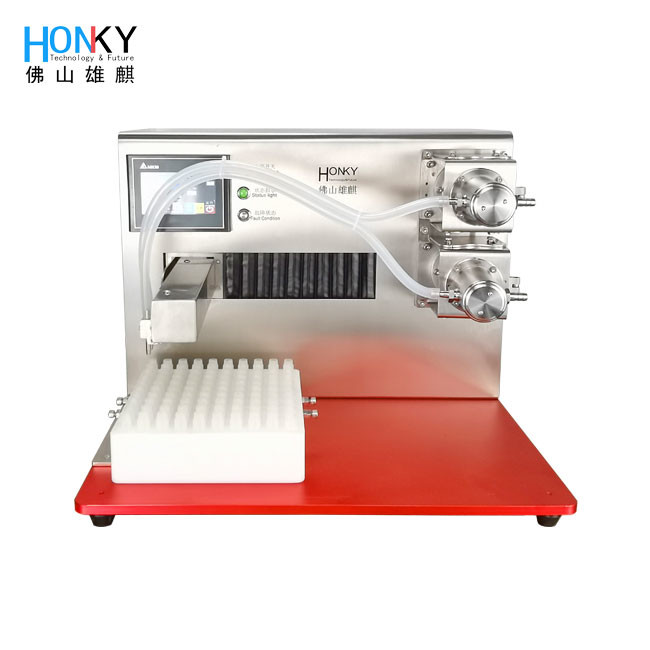

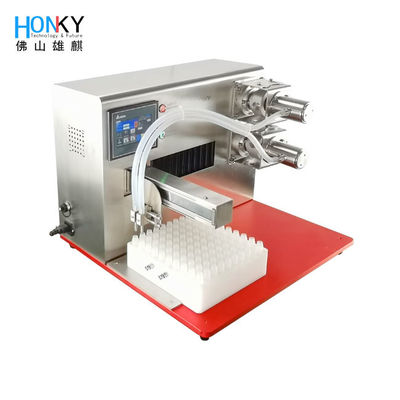

Product display of Desktop Automatic XY Axis Tube Filling Machine:
1.Automatic dual-channel bottle loading, multi-head filling.
2.Suitable for a variety of standing instability products.
3.The machine is made of stainless steel 304.
4.The size of the machine can be customized according to the customer’s need.

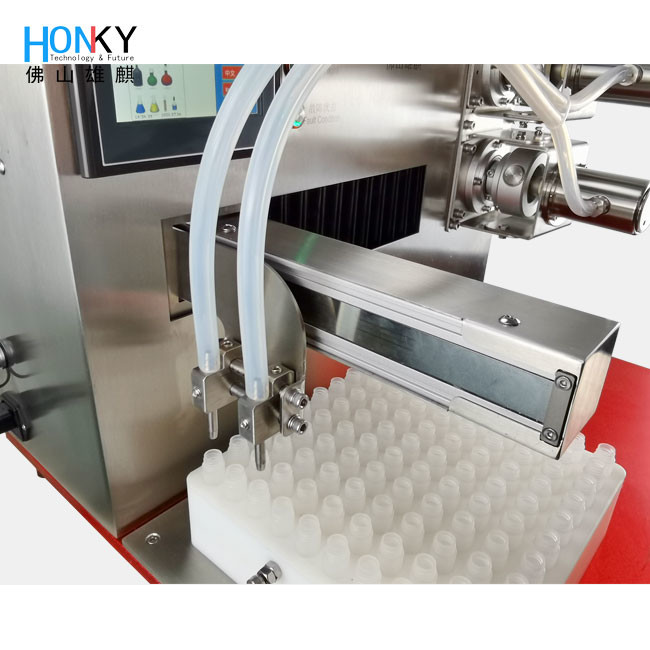

This equipment adopts XYZ three-axis linkage method, using Japanese sensor, Taiwan rail, which makes the positioning precise.
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
