Desktop Conveyor Type cream paste bottle Filling Machine With Q-R pistom pump For Small Batch Bottle Filling
Characteristic of Desktop Conveyor Type cream paste bottle Filling Machine
This equipment has been tested to meet the requirements of GMP certification.
1. The intelligent operating system is adopted.

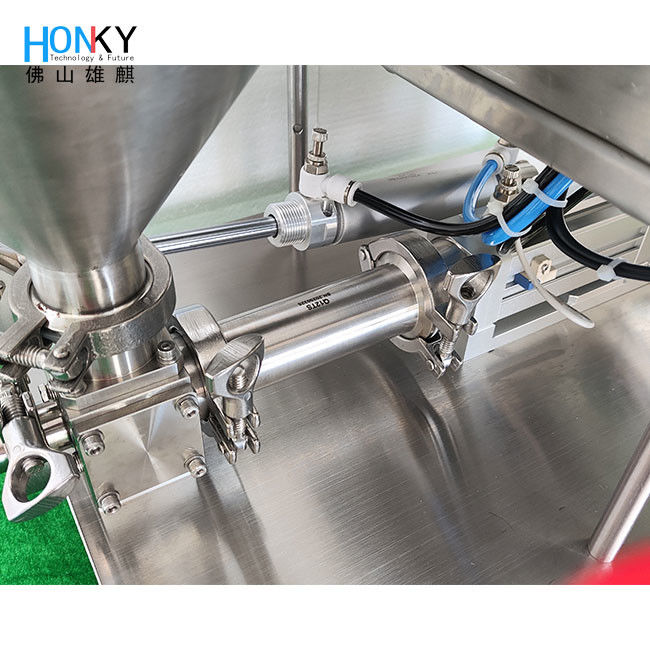

2. The filling part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
3, 304 stainless steel appearance, desktop structure, practical and convenient;
4. Suitable for independent use, external control signal reception and the production line configuration.
5. The number of filling pumps can be expanded according to the number of filling bottles.
6. Support the Modbus 485 communication protocol.
Technical parameters of Desktop Conveyor Type Small Vial Filling Machine
| Model |
Q-R small filling line |
| Pump |
High purity ceramics |
| Filling range |
1-12ml / 2-25ml / 5-50ml / 10-100ml |
| Filling accuracy |
≤ ±1% |
| Bottle diameter |
12-78mm |
| Manufacturing speed |
≤ 35 PCS/min |
| Size of Host Machine |
Customizing |

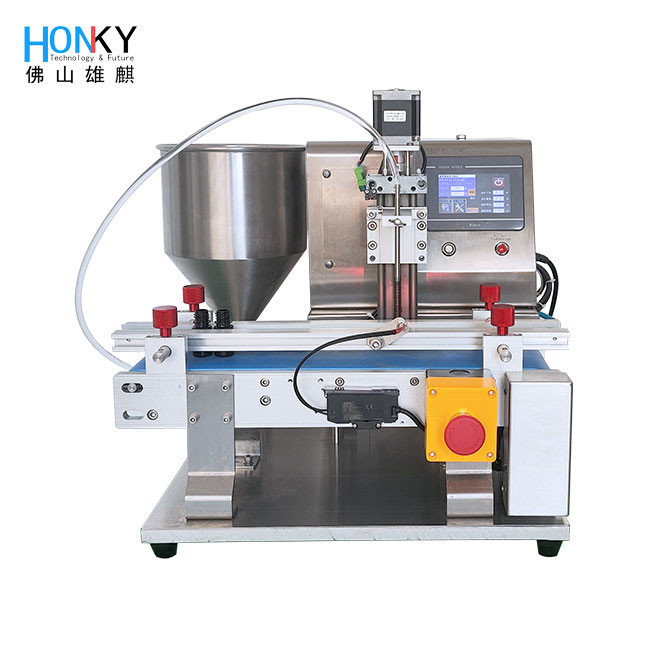

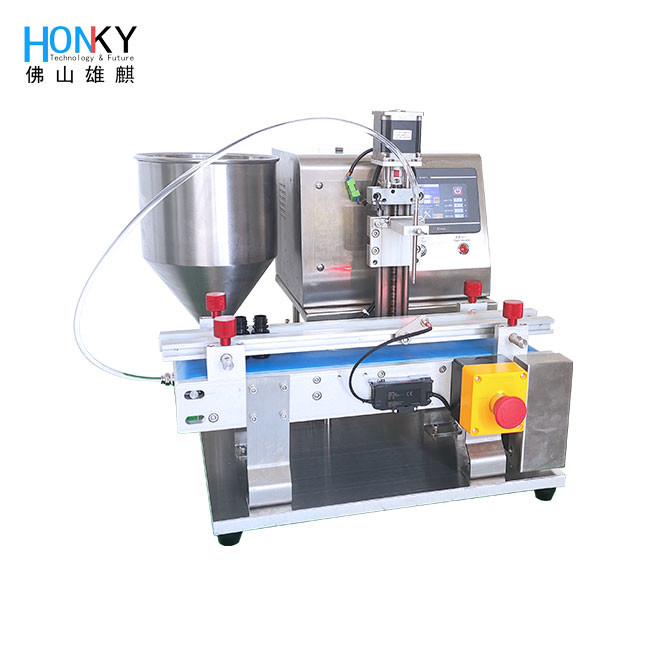

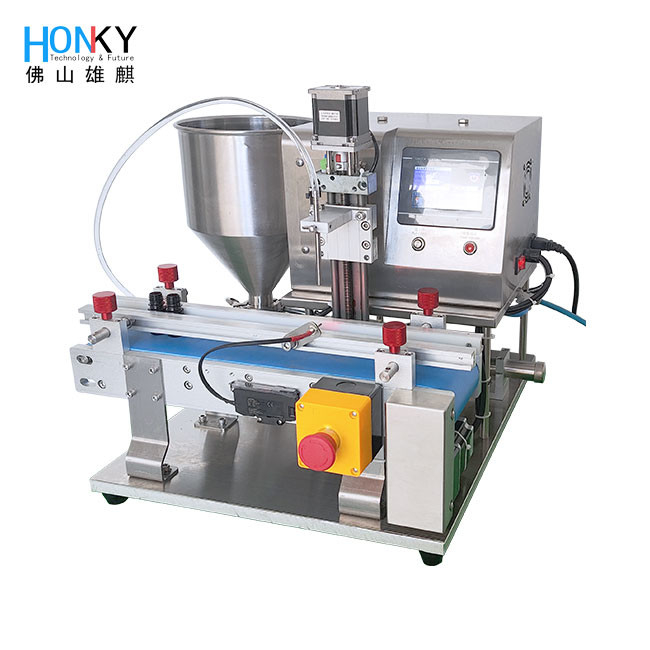

Product display of Desktop Conveyor Type cream paste bottle Filling Machin

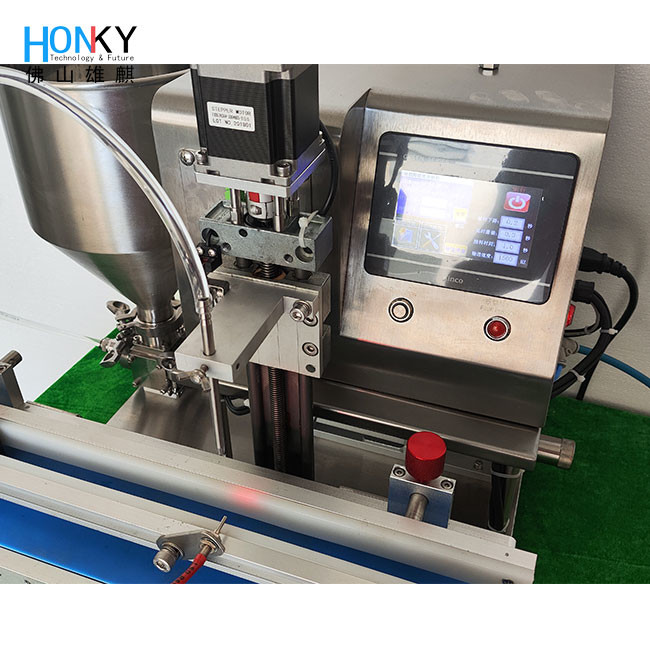

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
