Desktop Conveyor Type cream paste bottle Filling Machine With Q-R pistom pump For Small Batch Bottle Filling
Characteristic of Desktop Conveyor Type cream paste bottle Filling Machine
This equipment has been tested to meet the requirements of GMP certification.
1. Advanced Intelligent Control System
`Equipped with a next-generation AI-powered operating system for fully automated and self-optimizing performance
`Features real-time monitoring and adaptive adjustment of filling parameters
`Touchscreen HMI (Human-Machine Interface) with intuitive graphical controls for easy operation
`Supports recipe storage and quick changeover for different product viscosities
2. High-Precision Ceramic Pump Filling Technology
`Utilizes ultra-durable, corrosion-resistant high-purity ceramic pump mechanism
`Precision-engineered pump head with stepless angle adjustment for micro-level volume control
`Delivers industry-leading filling accuracy of ±0.5% with CV (Coefficient of Variation) <1%
`Specialized anti-drip nozzle design prevents product waste and contamination
`Capable of handling liquids from 1cP to 10,000cP viscosity
3. Premium 304 Stainless Steel Construction
`Full 304 stainless steel frame and contact surfaces for maximum durability
`Compact desktop footprint (LxWxH: 600x400x500mm) with ergonomic design
4. Flexible Operation Modes
`Standalone Mode: Complete independent operation with onboard controls
`External Control: Compatible with PLC, SCADA and other automation systems via I/O signals
`Production Line Integration: Synchronizes seamlessly with conveyors, capping machines and labeling systems
`Supports single-head to multi-head configurations for various production needs
5. Modular Scalable Design
`Base configuration supports 1-4 filling heads (expandable up to 4 heads)
`Each filling station operates independently with individual parameter settings
`Quick-change pump assemblies allow for rapid format changeovers
`Future-proof architecture supports additional sensor integration (level detection, leak monitoring)
6. Industrial Communication Protocols
`Standard Modbus RTU (485) for industrial network connectivity
`Optional PROFIBUS, Ethernet/IP, and DeviceNet protocols available
`Real-time data logging and OEE (Overall Equipment Effectiveness) tracking
`Remote monitoring and diagnostics capability via IoT gateway
Technical parameters of Desktop Conveyor Type Small Vial Filling Machine
| Model |
Q-R small filling line |
| Pump |
High purity ceramics |
| Filling range |
1-12ml / 2-25ml / 5-50ml / 10-100ml |
| Filling accuracy |
≤ ±1% |
| Bottle diameter |
12-78mm |
| Manufacturing speed |
≤ 35 PCS/min |
| Size of Host Machine |
Customizing |

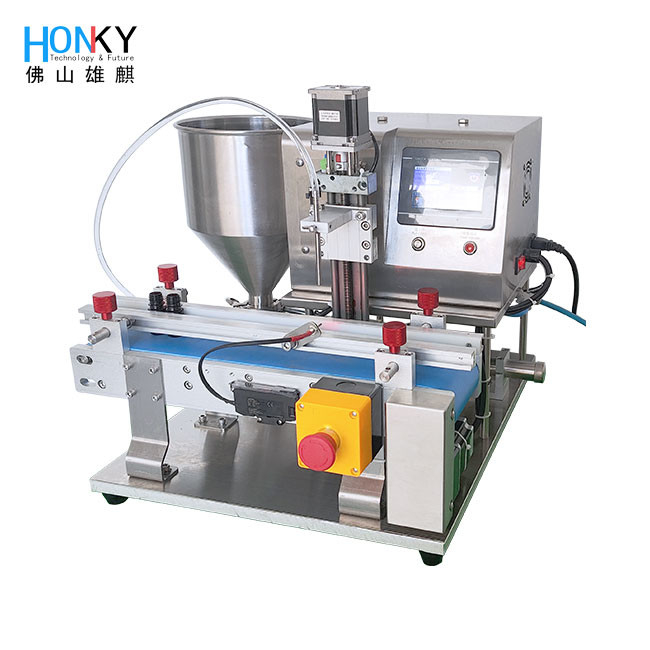

Product display of Desktop Conveyor Type cream paste bottle Filling Machin

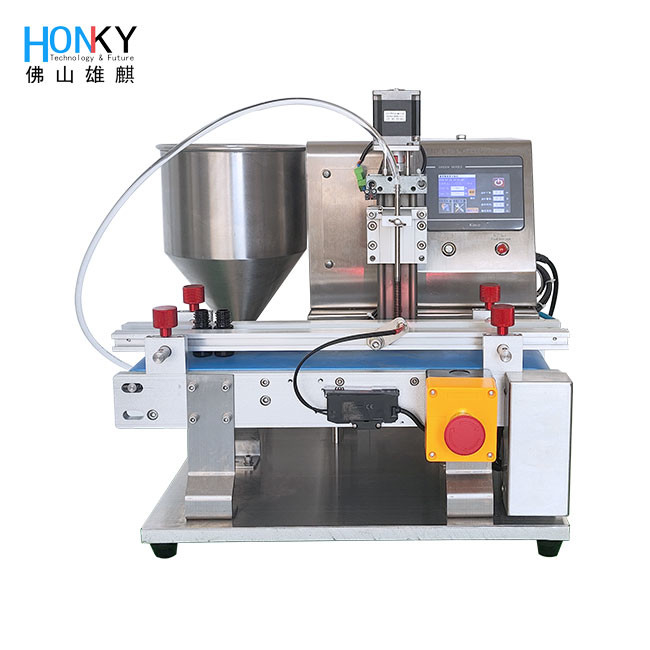

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
