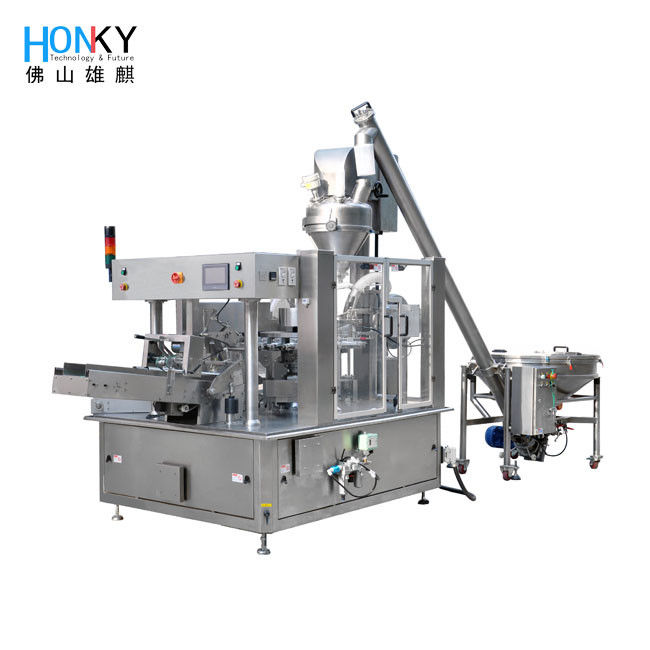

Stand up Quad Seal Bag Filling Bagging Paste Chutney Stir Fry Simmer Hot Pot Chilli Sauce Liquid Premade Pouch Packing Machine

Stand up Quad Seal Bag Filling Bagging Paste Chutney Stir Fry Simmer Hot Pot Chilli Sauce Liquid Premade Pouch Packing Machine

Features of Premade Pouch Packing Machine

1. Simple Operation

PLC Control System: The equipment is equipped with an advanced Programmable Logic Controller (PLC), ensuring precise and reliable automation.

User-Friendly HMI (Human-Machine Interface): The intuitive touchscreen interface allows operators to monitor and adjust parameters easily, reducing manual errors and improving efficiency.



2. Frequency Conversion Speed Regulation

Variable Frequency Drive (VFD): The machine incorporates a high-performance frequency conversion adjustment device, enabling stepless speed regulation within the specified range.

Flexible Speed Control: Operators can freely adjust the conveyor and filling speeds to match different packaging requirements, ensuring optimal production efficiency.



3. Easy Bag Width Adjustment

Motorized Synchronized Adjustment: The bag width is controlled by a servo motor system, allowing one-touch synchronous adjustment of all machine clips.

Precision & Consistency: Ensures uniform bag width across all units without manual intervention, reducing setup time and improving accuracy.



4. Mixing & Liquid Level Control

Anti-Sedimentation Mixing Device: An integrated agitator prevents particle materials from settling, ensuring homogeneous mixing and consistent filling.

Automatic Liquid Level Detection: Equipped with a liquid control sensor that triggers a feeding signal when the material level drops below a set threshold, preventing dry running.



5. Intelligent Safety Interlocks

No Bag / Incomplete Opening = No Filling: The system detects missing or improperly opened bags and automatically halts the filling process to avoid waste.

No Bag / No Filling = No Sealing: Ensures sealing only occurs when a bag is properly positioned and filled, preventing malfunctions and material loss.



6. Comprehensive Alarm System

Door Open Alarm (Optional): Alerts operators if the machine door is not securely closed during operation.

Colorless Tape Detection: Stops production and triggers an alarm if the color-marked tape is missing or misaligned.

Low Air Pressure Warning: Monitors pneumatic pressure and issues an alert if levels are insufficient for proper operation.

Sealing Temperature Anomaly Detection: Automatically adjusts or stops heating if the sealing temperature deviates from the set range, ensuring consistent seal quality.



7. Hygienic Material Contact Surfaces

Food-Grade Construction: All components in contact with materials are made of 304 stainless steel or FDA-approved food-grade plastics, ensuring compliance with hygiene and safety standards.

Easy to Clean & Corrosion-Resistant: Designed for sanitary production environments, minimizing contamination risks and simplifying maintenance.



Application of Premade Pouch Packing Machine

It applies to bag packaging of plane bags, zippered bags, and self-standing bags for food, medical purpose and daily use chemicals.

It can be used for power, particle, liquid, and liquid cream filling packaging.



Parameter of Premade Pouch Packing Machine

Model	XQBPK-8	XQBPK-8S
Package size (L*W mm)	L:150-320 W:100-200	L:250-260 W:120-380
Filling range	5-1000 g	100-2000 g
Speed(Bag/min)	20-55	10-45
Package type	Four-side seal, three-side seal, stand-up pouch, tote bag, zipper bag, paper-plastic bag, etc
Material type	Liquid, granules, powder, irregular mass, oil mixing, etc.



Product display of Premade Pouch Packing Machine

---

---





About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.



Q & A

Q: Do you offer OEM services, I am a distributor from overseas?

A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.



Q: How about the after-sales service?

A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.



Q: What are your Installation Services?

A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.



Q: What info will be needed to confirm machine models?

A: 1.The material status.

2. Filling range.

3. Manufacturing speed.

4. Requirements for the production process.
