Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling

Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling
Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling
Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling
Basic Information
Place of Origin: China
Brand Name: XQ
Certification: CE
Model Number: XQZGX-12SA
Minimum Order Quantity: 1
Price: USD 40000-41000 PER SET
Packaging Details: Wooden packing
Delivery Time: 35 Days
Payment Terms: T/T
Supply Ability: 5 Set per Month
Get Best Price Contact Now
Pump Range: 0.28-1.5 Ml Air Supply: 0.41-0.6 Mpa
Filling Efficiency: 33-40 BPH Pump Choosing: XQX2 Ceramic Pistion Pump
Pump Accuracy: ≤±0.5% Material: Stainless Steel
Machine Size: 1200*860*860mm

Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machien With Robot Arm System For The Reagent Filling

Parameter of Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine

Speed 2400-1800 BPH(2ml Cryo tube)
Filling range 0.2-2.9ml
Accuray ±0.5%
Power Roughly 2KW 220V 50Hz
Air 0.6~0.8Mpa Air consume:about 1m3/h
Size According to the actual design



Feature of Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine

The XQZGX-12SA is a benchtop automatic filling and capping machine, specifically engineered for high-precision liquid dispensing and sealing of cryogenic vials and reagent tubes. Its compact 304 stainless steel construction ensures a small footprint, durability, and effortless cleaning.

Utilizing a high-accuracy ceramic pump, the system guarantees exceptional filling precision at speeds of 1,800–2,400 bottles per hour. An upgraded version of the XQZGX-12S, this fully automated machine is ideal for processing virus sampling tubes and is widely applicable in the pharmaceutical and biotechnology sectors.



Key features include:

Automatic Feeding: An integrated shaker conveyor for consistent tube transport.

Precision Filling: A servo-driven filling head ensures accurate liquid dispensing.

Automatic Capping: A synchronized rotary capping head secures the tubes post-filling.

Intelligent Sensing: Sensors detect tube positions and activate clamping mechanisms for stable operation during filling and capping.

This system provides a efficient and reliable solution for automated sample processing in sterile environments.

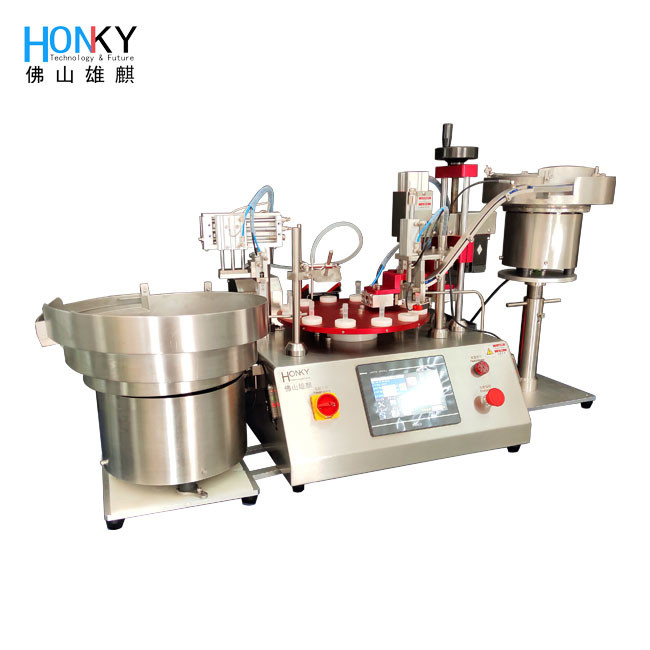

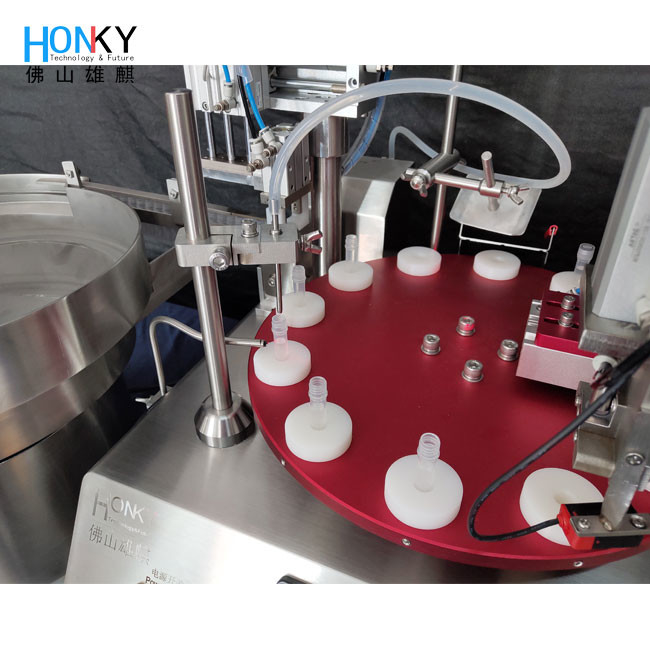

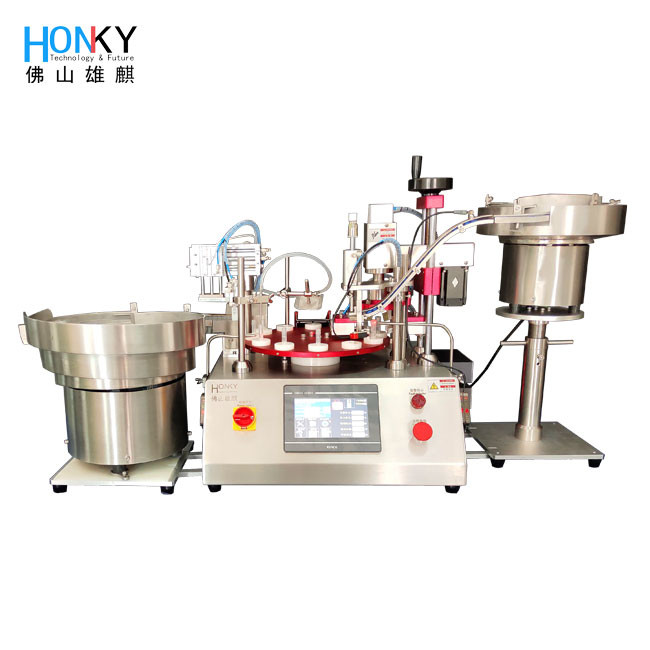

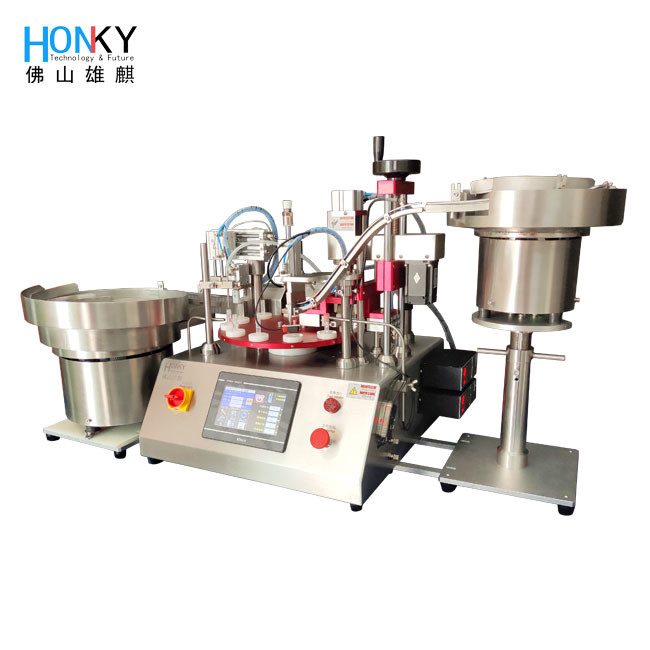

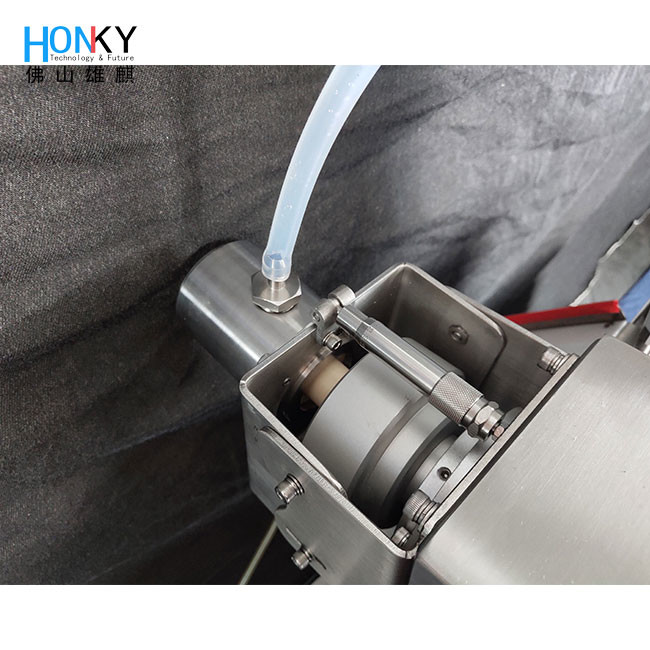

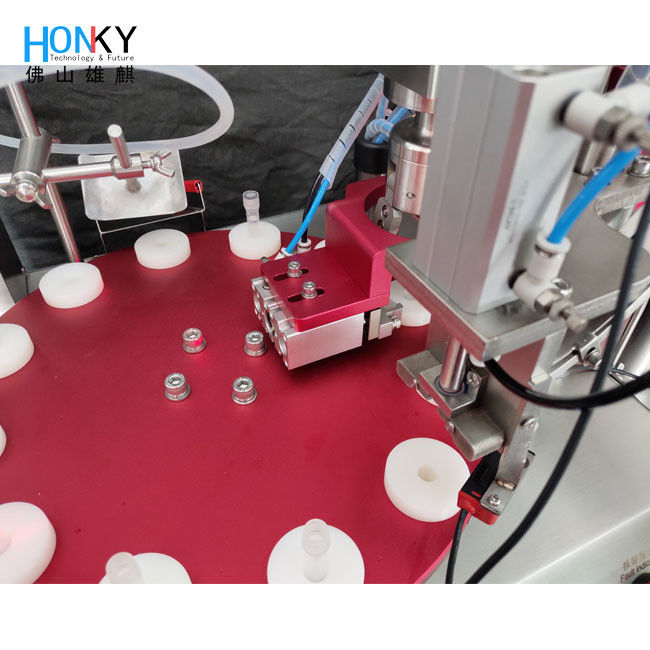

Machine display of Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine



 Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling 0

Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling 1

Desktop Type Full Automatic 40BPM 2ml Reagent Tube Filling And Capping Machine With Robot Arm System For The Reagent Filling 2

Why choose HonkyTech?

Rich Experience

There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.



Quality Assurance

With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.



In Stock

We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.



Mature Technology

With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
