30BPM Desktop Bottle Filling Machine with Ceramic Pump 3-25ml Range

Basic Information

Place of Origin:	China
Brand Name:	XQ
Certification:	CE
Model Number:	XQZGX-12S

Minimum Order Quantity:	1
Price:	USD 20000-25000/ SET
Packaging Details:	Wooden packing（767683cm 90KG）
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	50 SET per Month

Get Best Price Contact Now

Machine For:	Filling And Capping	Filling Range:	3-25 Ml
Air Supply:	0.43-0.6 MPa	Filling Material:	Liquid And Essence
Suitable Bottle:	Glass/Plastic	Pump Choosing:	XQX2 Ceramic Pump
Highlight:	30BPM desktop bottle filling machine , ceramic pump bottle filling machine , 3-25ml range bottle filling machine

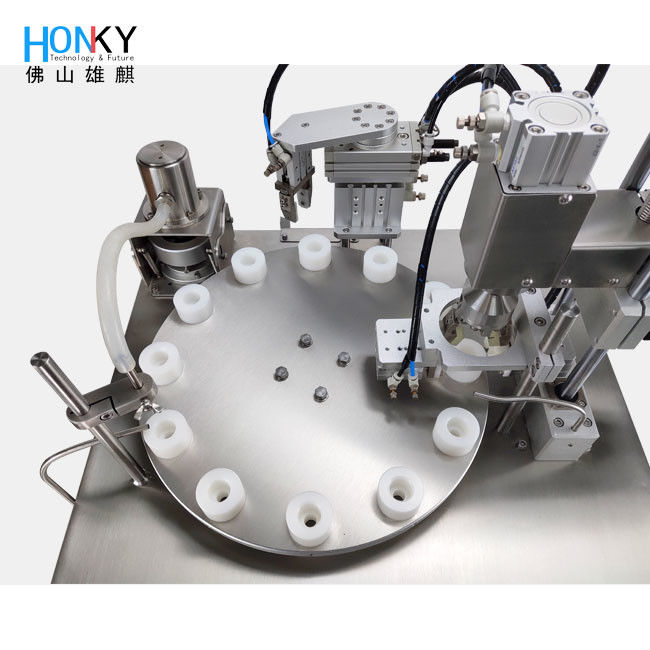

Desktop Small Batch Manufacturing 30BPM Small Bottle Filling And Capping Machine With Servo Torque Adjusting For Liquid Bottle Packing

Key Features

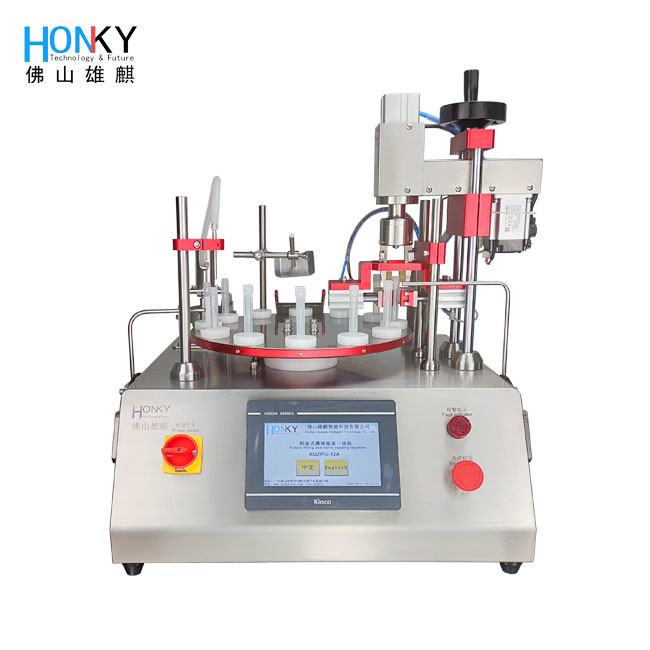

Intelligent Touch Operating System: 7-inch full-color HMI with icon-driven menu and multi-language support. One-touch recipe recall stores up to 50 product parameters. Real-time OEE dashboard and alarm log reduce operator training time to <10 min.

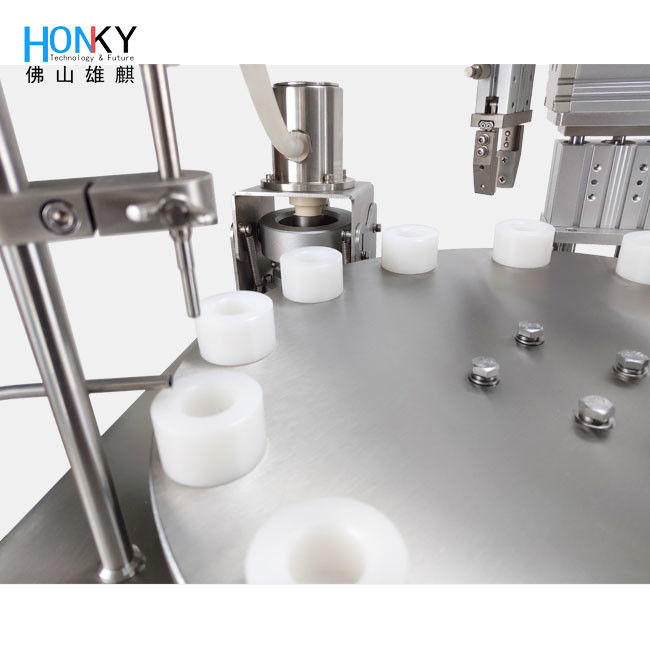

High-Purity Ceramic Separation Pump: 99.7% Al₂O₃ ceramic plunger and barrel for zero particle shedding. Infinitely adjustable pump-head angle (0-30°) delivers 0.1 µL resolution. CV ≤ 0.5% across the full dosing range.

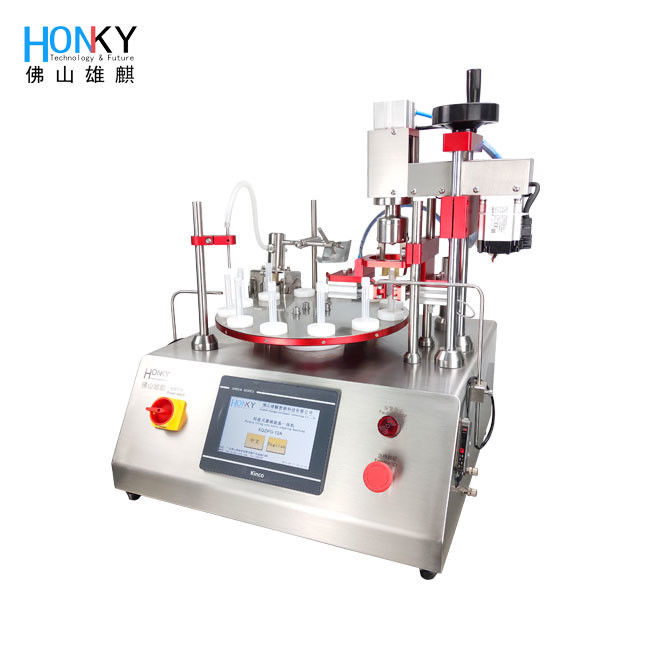

304 Stainless-Steel Desktop Frame: Mirror-polished SS304 enclosure rated IP54. 40% smaller footprint than traditional linear systems (700×700mm). Quick-release side panels allow tool-free access for wash-down in <5 min.

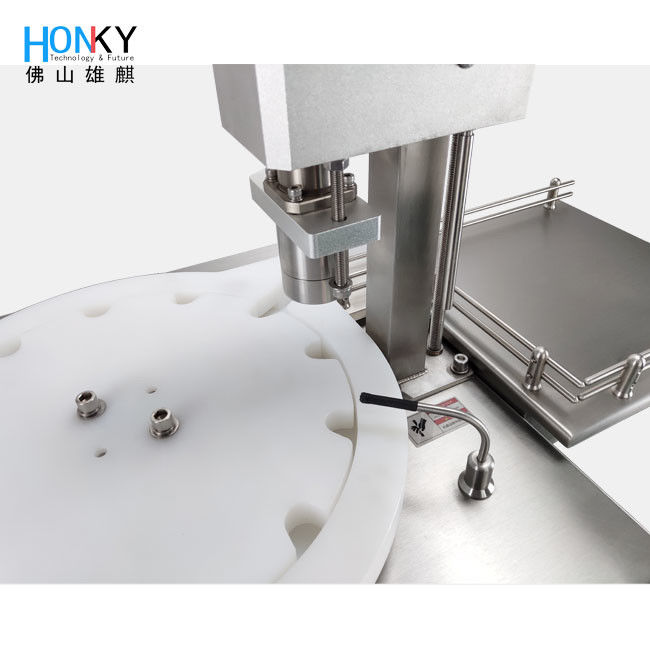

Servo Torsional Capping: 400 W Yaskawa servo motor with closed-loop torque feedback (±0.05 N*m). Programmable torque curves prevent thread stripping and guarantee 100% seal integrity.
Bottle-Mold Quick-Change System: Thumb-screw clamp and locating pins enable mold swap in <90 s without tools. RFID mold tags auto-load corresponding recipe to eliminate set-up errors.
German No-Bottle/No-Lid Sensor Suite: Sick photoelectric sensors detect bottle presence and cap orientation at 2 ms response. Instant reject signal ensures 100% QC.
Customizable Plug/Cover Options: Modular pick-and-place head can handle various inserts. Plug insertion force monitored by load cell (±0.1 N) to prevent glass cracking.
Taiwan-Branded Pneumatic Components: Airtac valves and FRL units ensure ±0.01 MPa pressure stability. Oil-free air circuit meets ISO 8573-1 Class 2 cleanliness.

Technical Specifications

Model	XQZGX-12S
Pump type	Ceramic pump
Filling accuracy	±0.5%
Filling range	0.6-6ml
Manufacturing speed	25-30 PCS / minute
Power	AC 220V 50-60Hz 550W
Air pressure	0.4-0.6Mpa
Machine size	710×660×670mm (Main machine roughly)
