Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump

Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump

double head liquid filling machine

ceramic pump liquid filler

60-80 BPM filling machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQZPG

Contact Us
Request A Quote
Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump
Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump
Product Details
Filling Efficiency:
60-80 BPM
Pump Range:
1-10ml
Machine Size:
120*60*50 Cm
Weight:
80 KGS
Driven Mode:
Full Electric Control
Power:
220V 50/60Hz 680w
Highlight:

double head liquid filling machine

,

ceramic pump liquid filler

,

60-80 BPM filling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(130*75*75cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price High Speed Desktop Liquid Filling Machine with Ceramic Piston Pump and PLC Control for Perfume Bottles online video

High Speed Desktop Liquid Filling Machine with Ceramic Piston Pump and PLC Control for Perfume Bottles

Get Best Price
Good price High Speed 250BPM 2ml Precision Filling Desktop Liquid Filling Machine with XYZ Filling System for Perfume Industry online video

High Speed 250BPM 2ml Precision Filling Desktop Liquid Filling Machine with XYZ Filling System for Perfume Industry

Get Best Price
Good price Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed And Ceramic Pump System online video

Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed And Ceramic Pump System

Get Best Price
Good price High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals online video

High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals

Get Best Price
Contact Us
Contact Now
Product Description
Desktop Double Head Small Volume Liquid Filling Machine With Ceramic Piston Pump

Precision filling solution for essential oil and small batch manufacturing with advanced ceramic pump technology.

Key Features
  • Intelligent Operating System: 7-inch color touch-screen HMI with icon-based menus and multi-language support
  • High-Purity Ceramic Dosing Pump: 99.7% Al₂O₃ ceramic plunger & barrel with zero particle shedding and chemical inertness
  • Precision Dosing: 0.1 µL resolution per revolution with gravimetric repeatability ≤ ±0.3% CV
  • Stainless-Steel Construction: Mirror-finished SS304 enclosure with IP54 rating and tool-free wipe-down capability
  • Optimized Bottle Handling: Precision side-grip conveyor maintains ±0.5 mm bottle centering for stable filling
  • Quick Changeover: Thumb-screw clamp system enables bottle mold swaps in under 90 seconds
  • Advanced Sensing: German photoelectric sensor prevents product waste with 2ms response time
Technical Specifications
Model XQZPG-2B Double channel
Pump Head High purity ceramics
Filling Accuracy ≤±0.25%
Filling Range 0.5-2ml | 1.5-5ml | 3-10ml | 2-25ml
Bottle Diameter 12-78mm
Production Speed 40-80 PCS/min
Machine Dimensions 1130×430×240(mm)
Power Requirements AC 220V 50-60Hz 650W
Machine Features

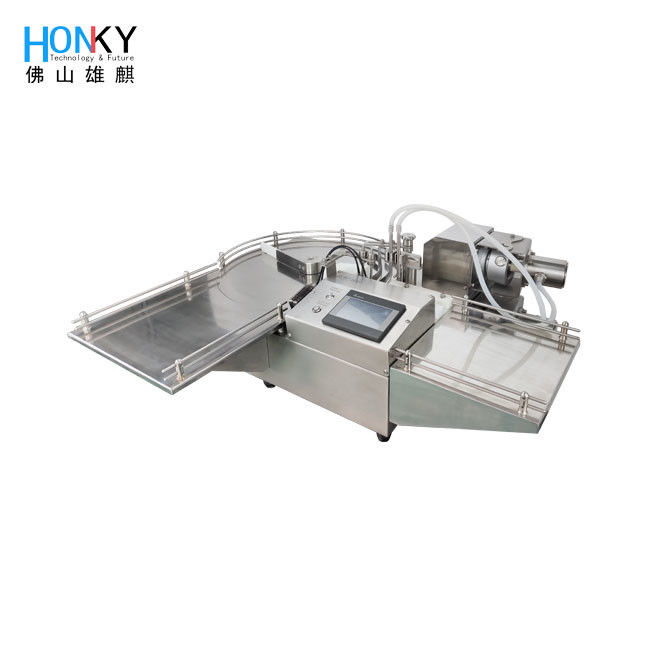

Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump 0

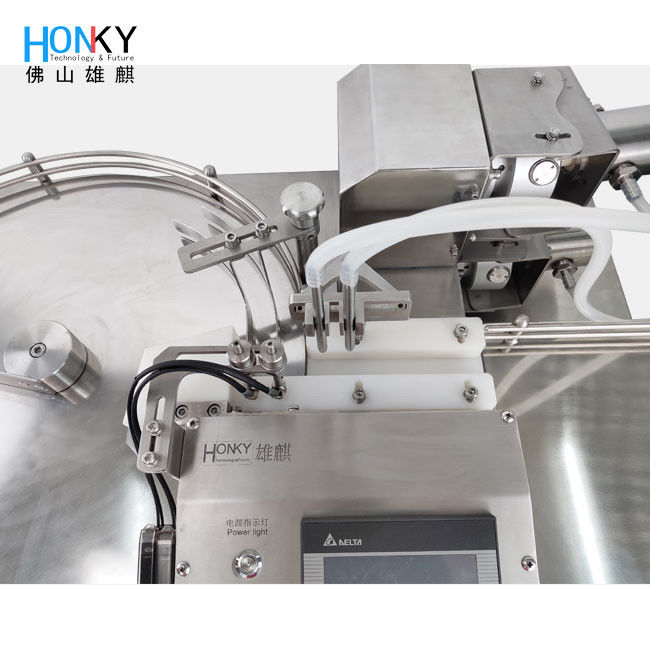

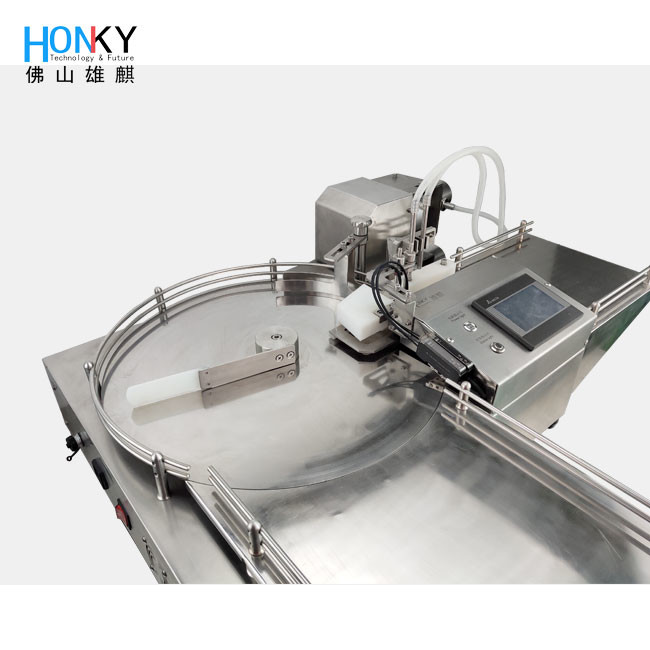

Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump 1
Automatic dual-channel bottle loading, multi-head filling. Suitable for a variety of standing stability products.

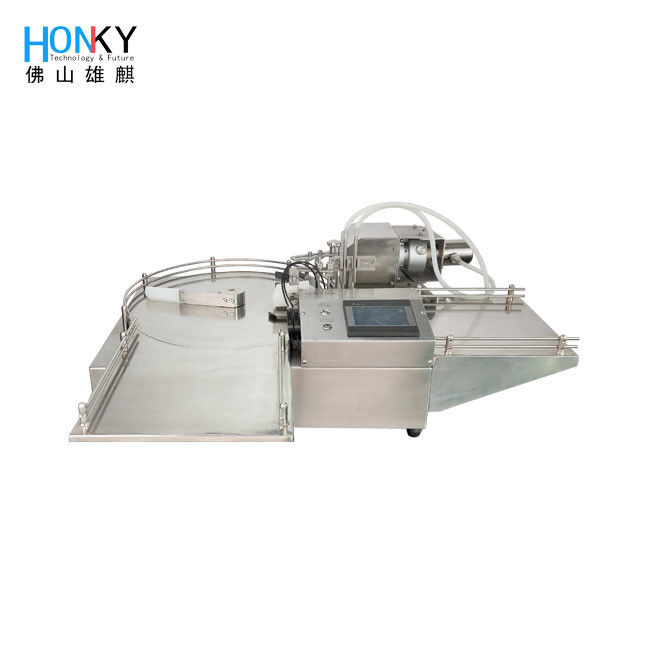

Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump 2
The machine is made of stainless steel 304. The size can be customized according to customer requirements.

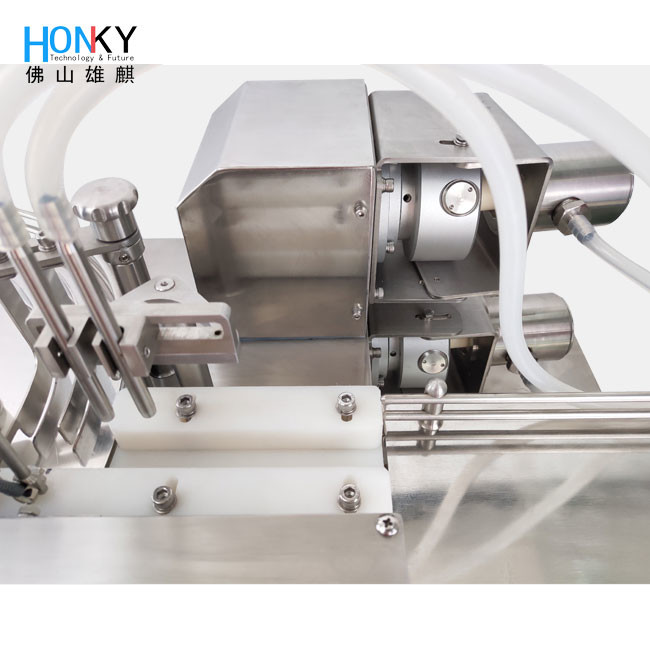

Double Head Liquid Filling Machine 60-80 BPM with 1-10ml Ceramic Pump 3
Independent precision ceramic pump achieves repeatable accuracy of ±0.3%.
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we offer both OEM services and technical support for international distributors.
Q: How about the after-sales service?
A: The machine comes with a 1-year warranty and lifetime after-sale service with technical support.
Q: What are your Installation Services?
A: We provide comprehensive installation support including user manuals, instructional videos, and guidance for machine setup, debugging, and operation.
Q: What info will be needed to confirm machine models?
A: Please provide: 1) Material status, 2) Filling range requirements, 3) Desired production speed, 4) Any special process requirements.
