Home > Products > Essential Oil Filling Machine >

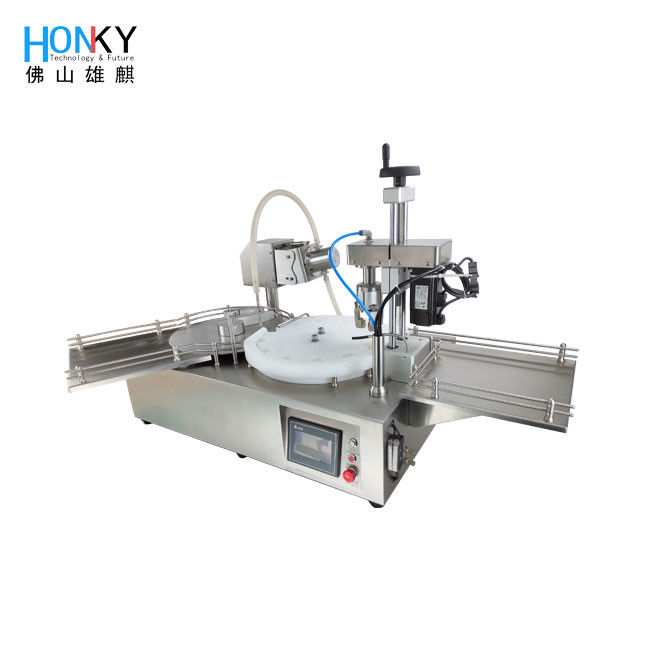

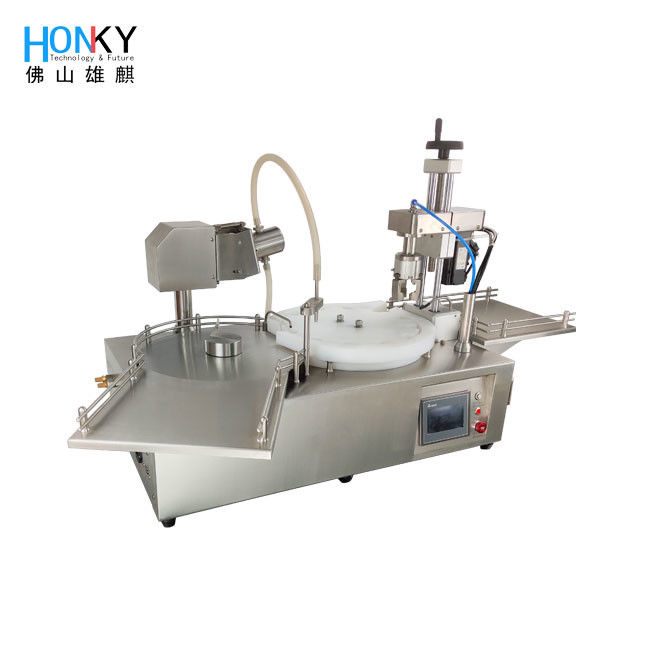

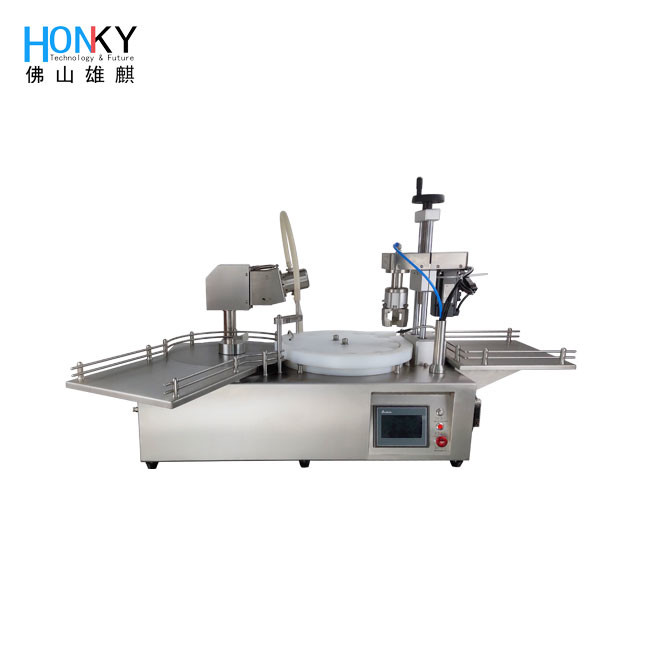

Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles

Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles

316L Stainless Steel Essential Oil Filling Machine

5-30 mL Bottles Desktop Filling Machine

High Precision Small Batch Filling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQGX-30A

Contact Us
Request A Quote
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles
Product Details
Machine Speed:
26 PCS/min
Filling Material Type:
E Liquid
Bottle Type:
Plastic Round Bottle (5/10/15/20/30ml Bottle)
Pump Choosing:
XQX2 Ceramic Pump Or Customized
Automatic Grade:
Semi-Automatic
Filling Range:
3.1-25ml
Highlight:

316L Stainless Steel Essential Oil Filling Machine

,

5-30 mL Bottles Desktop Filling Machine

,

High Precision Small Batch Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing（130*85*75cm 125KG）
Delivery Time
20 days
Payment Terms
T/T
Supply Ability
50 SET per Month
RELATED PRODUCTS
Good price Desktop Semi-Automatic Essential Oil Filling Machine With Ceramic Piston Pump For High Precision Cosmetic Oil Packing online video

Desktop Semi-Automatic Essential Oil Filling Machine With Ceramic Piston Pump For High Precision Cosmetic Oil Packing

Get Best Price
Good price Desktop Semi-Automatic Essential Oil Filling Machine With Ceramic Piston Pump And 30-40 BPM Efficiency For Automatic Capping online video

Desktop Semi-Automatic Essential Oil Filling Machine With Ceramic Piston Pump And 30-40 BPM Efficiency For Automatic Capping

Get Best Price
Good price Automatic 20 BPM Essential Oil Filling And Capping Machine with Ceramic Plunger Pump and 220V 50-60Hz Power online video

Automatic 20 BPM Essential Oil Filling And Capping Machine with Ceramic Plunger Pump and 220V 50-60Hz Power

Get Best Price
Good price Desktop Automatic 15ml Essential Oil Filling Machine with Ceramic Pump and PLC Control for Precise Filling and Capping online video

Desktop Automatic 15ml Essential Oil Filling Machine with Ceramic Pump and PLC Control for Precise Filling and Capping

Get Best Price
Contact Us
Contact Now
Product Description
Desktop Small Batch E Liquid Bottle Oil Filling Machine With Servo Capping System
Compact tabletop solution for precise filling and capping of 5-30mL essential oil bottles, ideal for R&D and small batch production.
Key Features
  • Compact monobloc design fits on 120 * 60 cm lab benches
  • Precision ceramic piston metering pumps (±0.5% accuracy) with 0.2-30 mL range
  • 316L stainless steel and 99.7% Al₂O₃ ceramic construction for chemical resistance

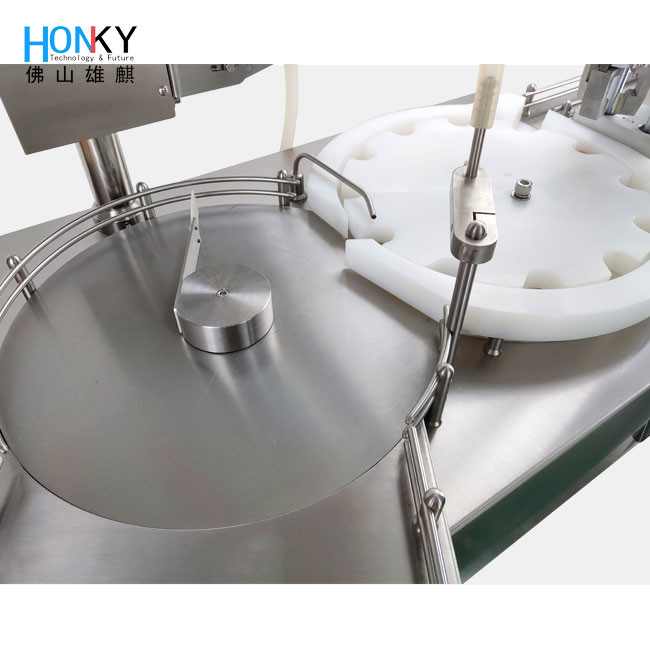

  • Integrated bottle unscrambler holds approximately 300 empty bottles
  • Servo capping with programmable torque (0.1-1.0 N*m) prevents overtightening
  • Operates at speeds up to 40 bottles per minute
  • Single-operator design for easy monitoring and control
Technical Specifications
Model XQGX-30A
Filling Range 0.2-6ml | 1-12ml | 2-25ml
Filling Accuracy ≤0.5%
Bottle Diameter φ20 - φ45mm
Production Speed 12-22 PCS/min
Power AC 220V 50-60Hz 600W
Air Pressure 0.4-0.5Mpa
Machine Dimensions 1230*780*600(mm)
Machine Features
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles 0
GMP certified equipment meeting industry standards
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles 1
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles 2

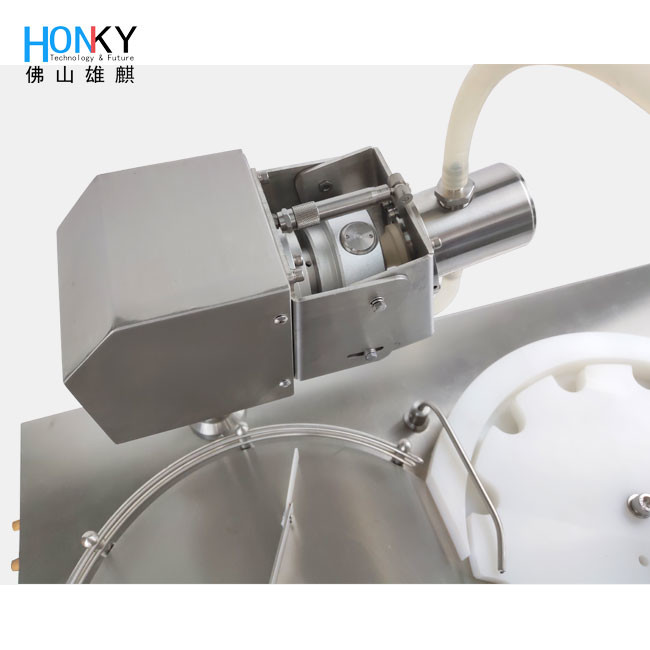

High purity ceramic pump ensures precise volume control with excellent measuring accuracy and repeatability
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles 3

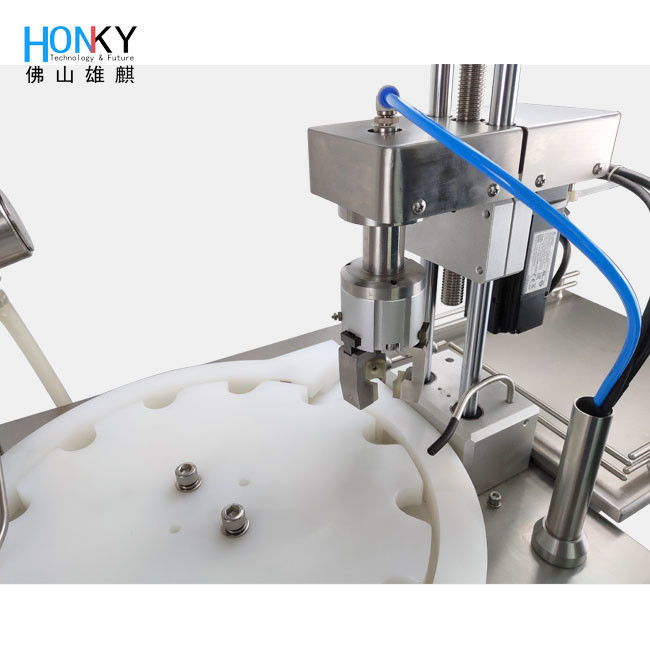

SERVO torsional screwing system guarantees proper lid tightness without damage
Desktop Small Batch Essential Oil Filling Machine with 316L Stainless Steel and High Precision Ceramic Pump for 5-30 mL Bottles 4
Ergonomic desktop design for easy operation and space efficiency
About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd (HONKY) is a leading manufacturer of fluid filling solutions specializing in ceramic pump technology, filling equipment, and custom ODM solutions. Our products are recognized for their quality, reliability, and operational efficiency in the industry.
