Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour

Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour

304 Stainless Steel Liquid Filling Machine

1800 Bottles/Hour Desktop Filling Machine

Digital Control Essential Oil Bottling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQGX-30A

Contact Us
Request A Quote
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour
Product Details
Pump Range:
1-10 Ml/ 0.6-6ml/ 2-25ml
Machine Efficiency:
25 Bpm
Filling Material:
Essential Oil/ Massage Oil
Bottle Type:
Round Glass Bottle
Machine For:
Desktop Filling And Capping
Filling Pump:
XQX2 Ceramic Pump
Highlight:

304 Stainless Steel Liquid Filling Machine

,

1800 Bottles/Hour Desktop Filling Machine

,

Digital Control Essential Oil Bottling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing（130*85*75cm 125KG）
Delivery Time
20 days
Payment Terms
T/T
Supply Ability
50 SET per Month
RELATED PRODUCTS
Good price High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals online video

High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals

Get Best Price
Good price Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed For Pocket Perfume Filling online video

Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed For Pocket Perfume Filling

Get Best Price
Good price Desktop Using Small Business High Speed 2ml Liquid Filling Machine With XYZ Filling System For Cosmetci Industry Using online video

Desktop Using Small Business High Speed 2ml Liquid Filling Machine With XYZ Filling System For Cosmetci Industry Using

Get Best Price
Good price Tabletop Using Perfume Tube Bottle Liquid Filling Machine With Ceramic Piston Pump For Oil Lqiuid Material Packing High Speed online video

Tabletop Using Perfume Tube Bottle Liquid Filling Machine With Ceramic Piston Pump For Oil Lqiuid Material Packing High Speed

Get Best Price
Contact Us
Contact Now
Product Description

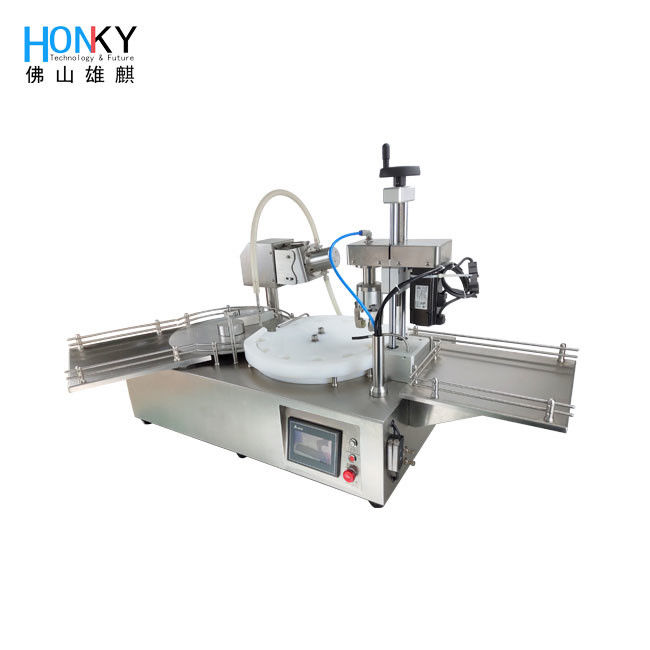

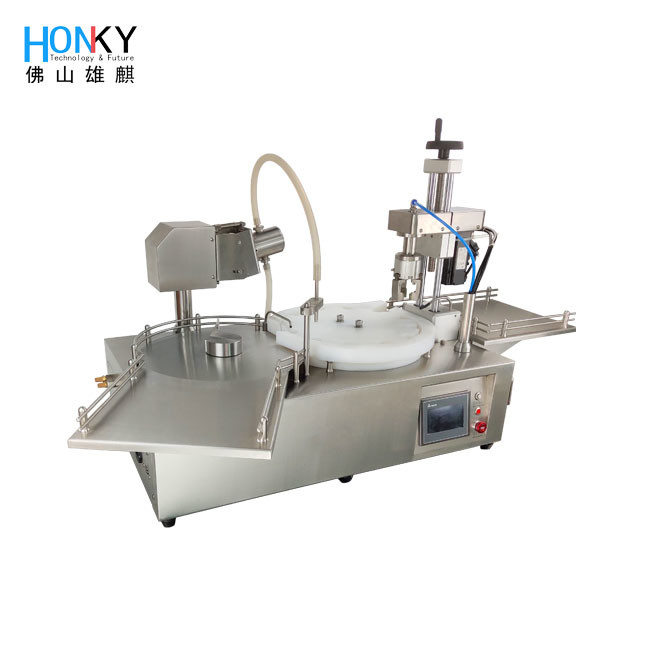

Compact Automatic Desktop Liquid Filling Machine with Digital Control
Ideal for Laboratory, Home Business & Sample Production
Key Features
  • Integrated Filling & Capping: Combines desktop filling and capping in one unit, specifically designed for small, narrow-mouthed essential oil bottles. Eliminates bottle transfers between separate devices, reducing spillage and breakage while ensuring consistent quality.
  • High-Precision Ceramic Pump: Guarantees strict dosage control with wear-resistant ceramic components that don't react with essential oils, maintaining stable flow rates and preventing raw material waste.
  • Compact & Hygienic Design: Features a space-saving desktop design with 304 stainless steel (corrosion-resistant, food-grade) contact surfaces. Detachable nozzles and smooth surfaces enable quick cleaning to prevent cross-contamination.
  • High Efficiency: Filling speed reaches 1800 bottles/hour with built-in bottle feeder, significantly faster than manual filling (300-500 bottles/hour) while reducing labor intensity and human error.
Technical Specifications
Model XQGM-30A
Filling range 0.2-6ml | 1-12ml | 2-25ml
Filling accuracy ≤0.5%
Bottle diameter φ20 - φ45mm
Manufacturing speed 12-22 PCS/min
Power AC 220V 50-60Hz 600W
Air pressure 0.4-0.5Mpa
Size of Host Machine 1230*780*600(mm)
Product Features
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour 0
This equipment has been tested to meet the requirements of GMP certification.
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour 1
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour 2

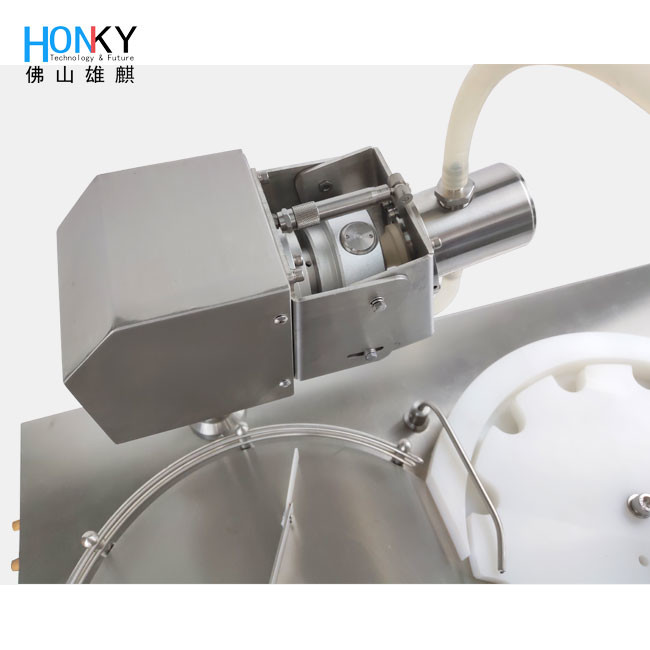

The separation part adopts high purity ceramic pump, which controls the injection volume by adjusting the angle of the pump head, offering exceptional measuring accuracy and repeatable consistency.
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour 3

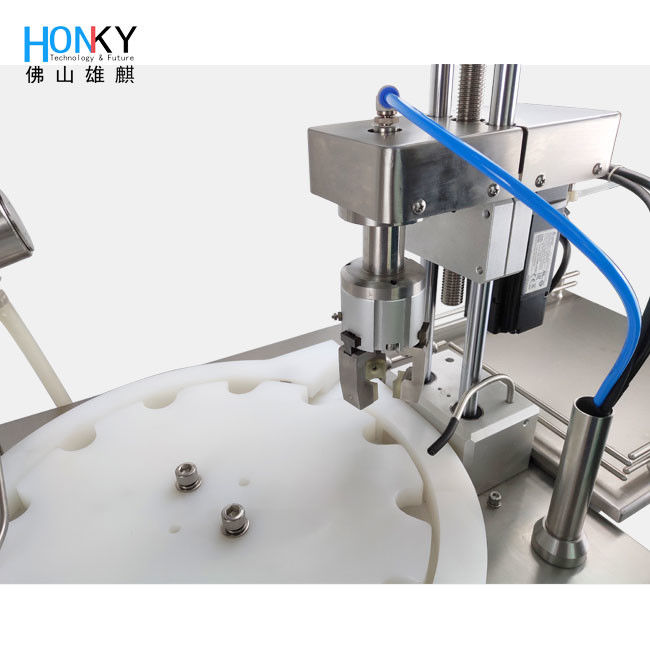

The capping part utilizes SERVO torsional screwing to ensure tight, damage-free lid application.
Compact Automatic Desktop Liquid Filling Machine with Digital Control and 304 Stainless Steel for 1800 Bottles/Hour 4

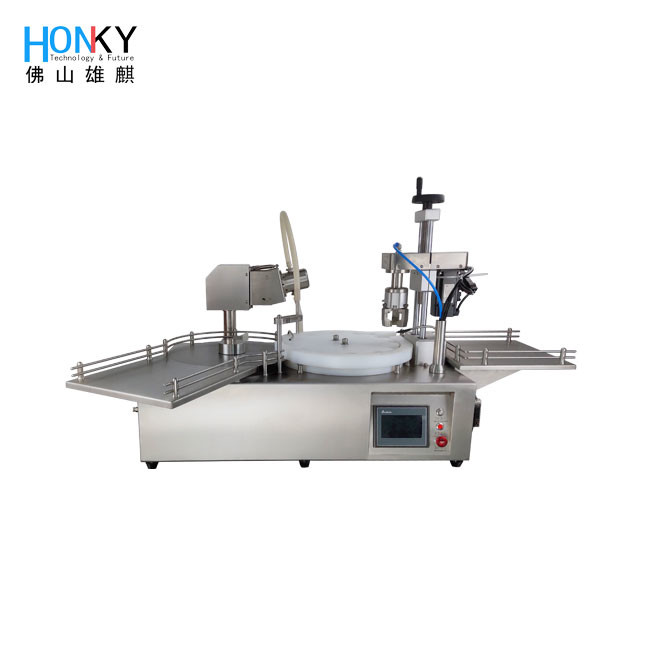

Fully desktop design for easy operation in limited spaces.
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine comes with a 1-year warranty. We offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We provide user manuals and instructional videos to support installation, debugging, and operation.
Q: What info will be needed to confirm machine models?
A: 1. The material status
2. Filling range
3. Manufacturing speed
4. Requirements for the production process
