High-Pressure Ceramic Filling Pump with Leak-Proof Design
Designed for industrial and commercial liquid filling systems, this high-pressure ceramic pump delivers precision performance with leak-proof reliability.
Precision Ceramic Plunger & Wide Liquid Compatibility
The HB-R ceramic pneumatic pump features a precision ceramic plunger engineered for medium and high viscosity liquids (1,000-100,000 CPS). It handles homogeneous creams and particle-containing materials with superior flow performance, making it ideal for cosmetics and food processing applications.
High Metering Accuracy & Repeatability
Achieves exceptional metering accuracy with ±0.8% error margin, ensuring consistent dosage for high-value products. Reliable repeatability minimizes material waste and maintains strict quality standards.
Corrosion-Resistant 316L Stainless Steel Construction
All material-contact parts use food-grade 316L stainless steel for superior corrosion resistance against acidic, alkaline, or corrosive ingredients while meeting strict hygiene requirements.
Industry Applications
Ideal for packaging machine integration, suitable for:
- Creams and honey
- Electrolytes and medicinal liquids
- Biochemical reagents and chemical liquids
- Essential oils, essences, and perfumes
- Nail polish and other viscous materials
Compatible with multi-station bag packing machines, multi-row packaging machines, and blister machines.
Technical Specifications
| Model |
XQHB-10 |
XQHB-20 |
XQHB-50 |
| Pump head |
High purity ceramics |
| Filling accuracy |
≤±0.5% |
| Filling range |
1-12ml |
2-25ml |
5-50ml |
| Manufacturing speed |
0-40 Bottle/min |
| Size |
250×150×400 cm |
| Power |
Full air driven |
| Air pressure |
0.4-0.6Mpa |

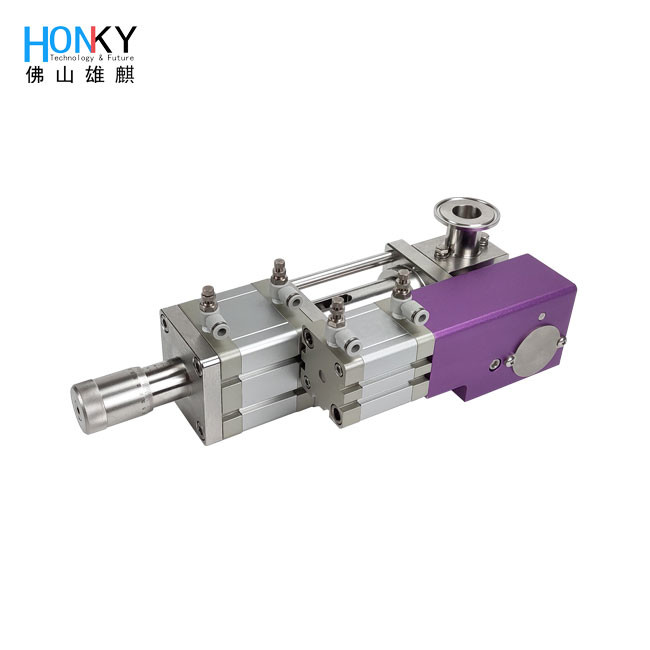

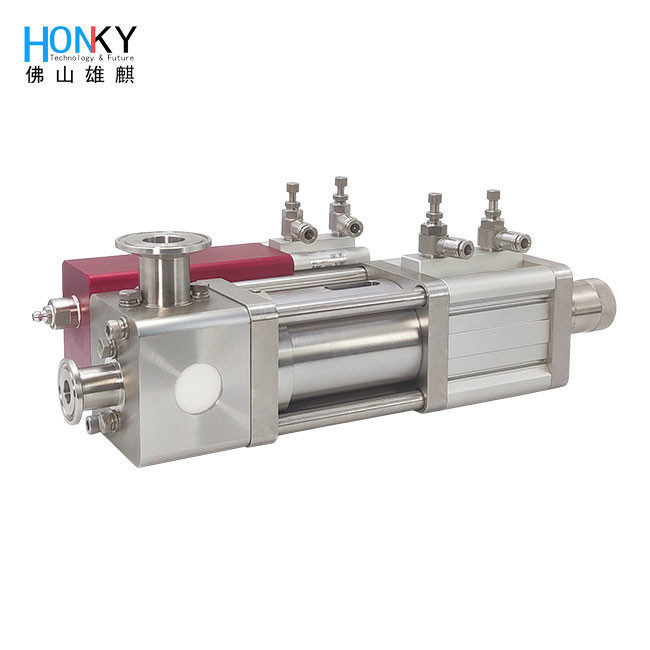

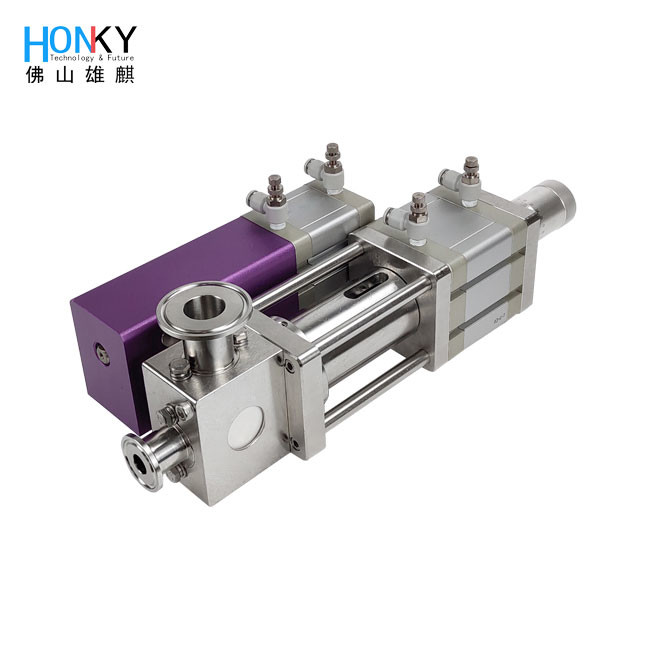

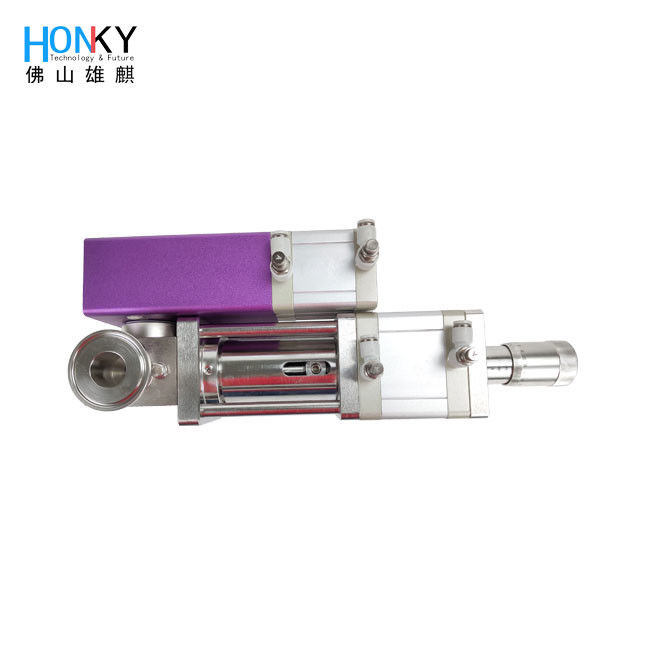

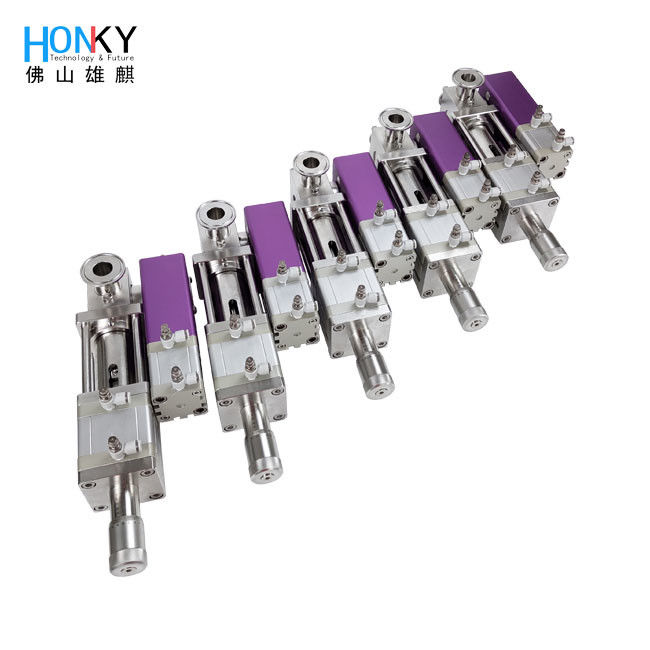

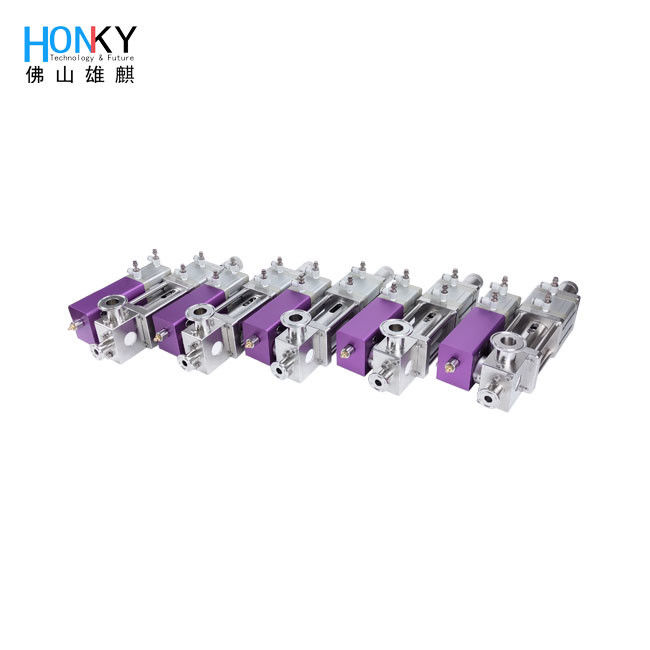

Product Images
Ceramic Material Advantages
- Low friction design extends packing life
- Extreme wear resistance for long-term durability
- Enhanced corrosion resistance
- Anti-galling surface properties
Why Choose HonkyTech?
Rich Experience: Skilled engineering team with decades of precision-filling expertise.
Quality Assurance: CE approved products with ROHS certification and strict quality control.
In Stock: Immediate availability of ceramic pump parts and machine components.
Mature Technology: Comprehensive technical support from in-house engineers and service technicians.
