High Precision Industrial Ceramic Piston Pump – Durable for Large-Scale Production Lines
Servo Driven High Precision Ceramic Piston Pump With Automatic Volume Adjusting For Cream Paste Jam Filling
Parameter of High Precision Industrial Ceramic Piston Pump
| Model |
XQQGS-12 |
XQQGS-25 |
XQQGS-50 |
XQQGS-100 |
| Pump head |
High purity ceramics |
| Filling accuracy |
≦±0.5% |
| Filling range |
1-12ml |
2-25ml |
5-50ml |
10-100ml |
| Manufacturing speed |
0-50 Bottle/min |
| Size of the pump |
50*15*15 cm |
| Power |
AC 220V 50-60Hz 50W |
| Air pressure |
0.4-0.6Mpa |
| Motor type |
Step motor/ servo motor |
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Feature of High Precision Industrial Ceramic Piston Pump
The Food-Grade Ceramic Piston Filling Pump is a precision solution for the food and beverage industry. It handles diverse products--syrups, sauces, honey, pastes--with exceptional accuracy, hygiene, and reliability, ideal for sensitive, high-value formulations.
1. Precision Engineered for Food & Beverage Excellence
Its core rotary-to-linear mechanism uses a ceramic piston in a food-grade sleeve; stroke length is adjusted via pump head angle. This ensures accurate, repeatable displacement, eliminating pulsation and inconsistency of conventional pumps.
Gentle Handling
Smooth rotation enables steady, non-aerating flow, preserving quality of honey, emulsions, and fruit pulps.
Superior Precision
±0.5% accuracy and ±0.1% repeatability reduce product waste, cutting costs for high-value ingredients.
2. Built for Hygiene, Safety, and Durability
Made of food-compliant materials, it's easy to clean and durable for harsh food production environments.
Ceramic Piston
Wear-resistant, inert, and ultra-smooth, it resists sticking and simplifies cleaning--even for honey or chocolate.
Food-Grade Parts
316L stainless steel and PEEK/PTFE wetted components offer corrosion resistance for acidic/saline foods.
3. Seamless Integration into Production Lines
This pump acts as a ready-to-integrate complete filling system, not just a component.
Smart Control
Interfaces with PLC/SCADA via analog/digital (RS485/Modbus) for quick recipes, data logging, and sync.
Easy Maintenance
Rapid disassembly supports CIP/SIP, minimizing downtime and meeting hygiene standards.

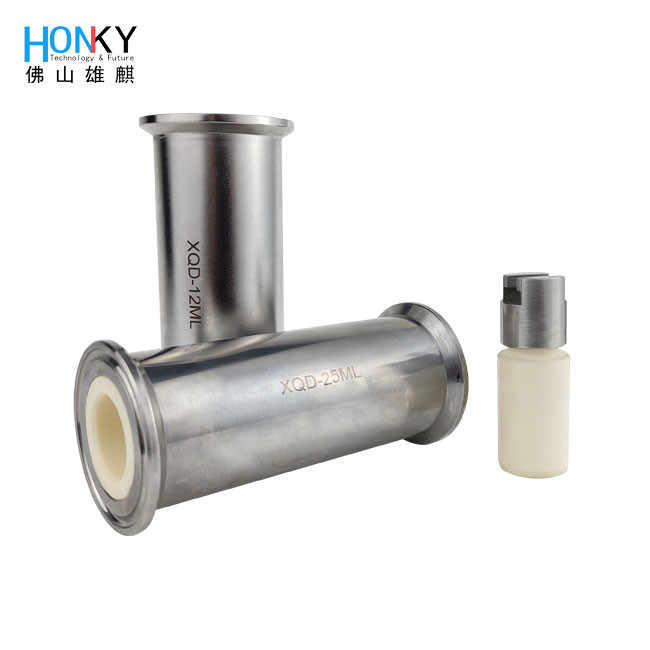

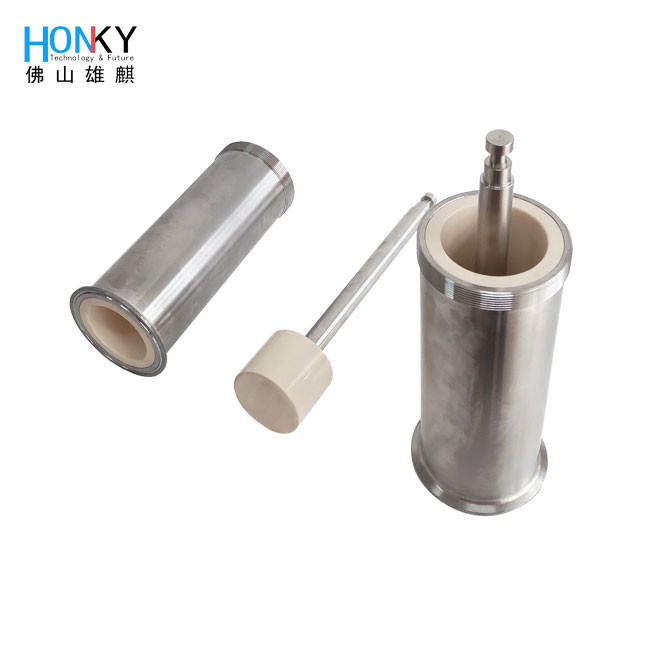

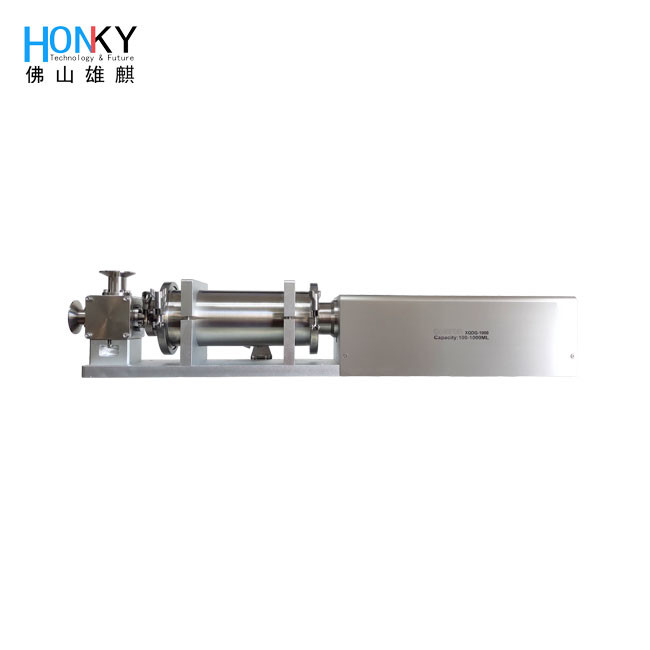

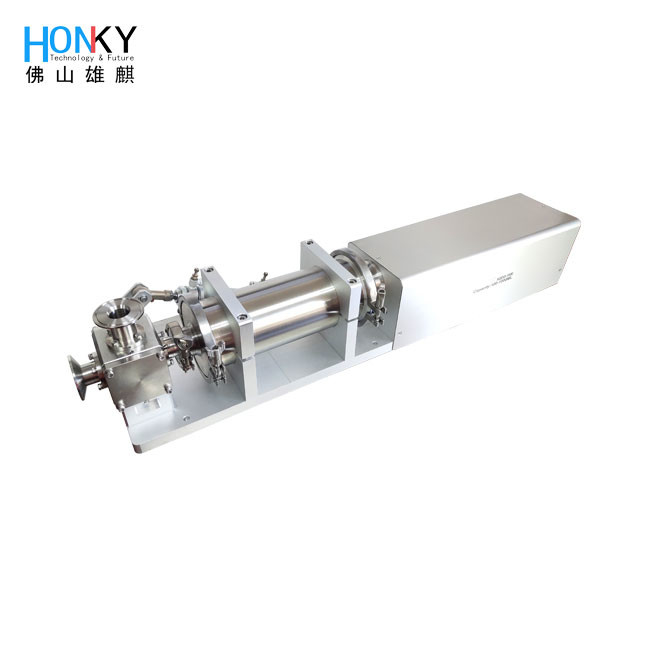

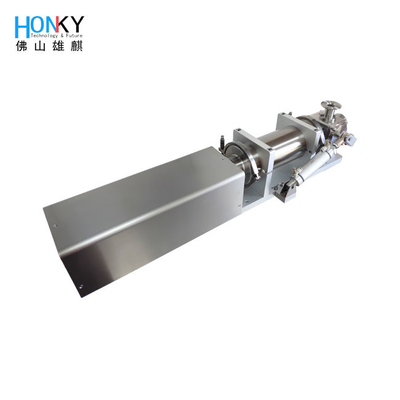

Product display of High Precision Industrial Ceramic Piston Pump
Application area
- ODM and OEM products design
- Automatic manufacturing line design
- Cosmetic product packing
- Pharmaceutical and bio-reagent product packing
- Laboratory Liquid dispensing
- Lithium Battery Liquid dispensing
- Ceramic pump and ceramic pump part design
- Other area's material filling
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A:
- The material status
- Filling range
- Manufacturing speed
- Requirements for the production process
