| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQHFL-110 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 5500-6000 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 10 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per Month |
| Warranty: | 1 Year | Type: | Packing Machine |
|---|---|---|---|
| Speed: | 40-150 Bag Per Minute | Power Supply: | AC 220V |
| Function: | Bag Packing | Weight: | 500Kg |
| Highlight: | Horizontal Biscuit Wrapping Machine,150pcs/Min Biscuit Wrapping Machine |
||

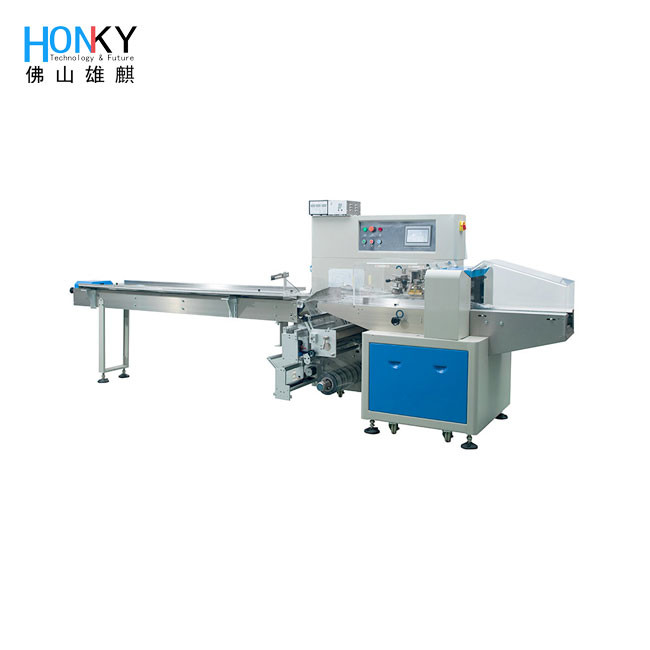

High Speed Horizontal Mini Coated Cake Butter Biscuit Wrapping Packing Machine For Food Packing
AC 220V 150 BPM Filling Packing Machine Horizontal Flow Wrapper
Flow Wrap Machine for Sale Horizontal Flow Pack Packaging Machine Manufacturer
Characteristic
1. Three Servo control, automatically detect product length and cut, the operator needn't adjust the unloading working, saving time and saving films.
2. Human-machine operation, convenient and quick parameter setting.
3. Self-diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Technical data
| Model | XQHFL-110 |
| Film Width | Max.250mm |
| Bag Length | 65-280mm |
| Bag Width | 30-110mm |
| Product Height | Max.45mm |
| Speed | 40-230 Bag/min |
| Power | 220V 50/60Hz 2.4KW |
| Machine Size | 3920*670*1320 mm |
| Weight | About 500 KG |
