| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQHFL-110 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 5500-6000 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 10 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per Month |
| Warranty: | 13 Month | Machine For: | Horizontal Bag Packing |
|---|---|---|---|
| Speed: | 50-150 Bag Per Minute | Power Supply: | AC 220V 50/60Hz |
| Weight: | 510Kg | Material Feeding: | Manual Or Full Automatic |
| Highlight: | Horizontal Bottle Bag Packing Machine,50BPM Bottle Bag Packing Machine |
||

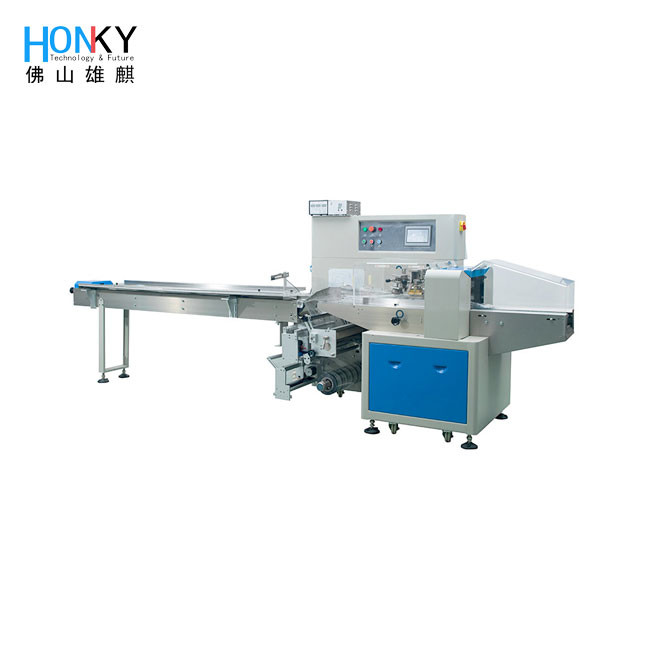

Full automatic 50BPM horizontal bottle bag packing machine For bottle bag packingFull automatic 50BPM horizontal bottle bag packing machine For bottle bag packing
Characteristic
1:Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
2:human-machine operation, convenient and quick parameter setting.
3:Self diagnosis failure function, clear failure display.
4:High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5: Separate PID control to temperature, suitable for various packing materials.
6:Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7:Simple driving system, reliable working, convenient maintenance.
8: All the controls are achieved by software, convenient for function adjusting and upgrading.
Technical data
| Model | XQHFL-110 |
| Film Width | Max.250mm |
| Bag Length | 65-280mm |
| Bag Width | 30-110mm |
| Product Height | Max.45mm |
| Speed | 40-230 Bag/min |
| Power | 220V 50/60Hz 2.4KW |
| Machine Size | 3920*670*1320 mm |
| Weight | About 500 KG |
