AuAutomatic Thermoforming Bee Honey Liquid Ketchup Paste Chocolate Jam Honey Blister Packing Machinetomatic Thermoforming Bee Honey Liquid Ketchup Paste Chocolate Jam Honey Blister Packing Machine
Application of Thermoforming Bee Honey Liquid Ketchup Blister Packing Machine
Cosmetics: such as water bang bang cream, mud mask, hair mask, two-color egg mask, freeze-dried mask, shampoo, shower gel, lipstick, perfume, essence, gel, freeze-dried powder, etc.;
Medicines: pills, tablets, capsules, powders, etc.;
Food: mouthwash, chili sauce, tea, honey, ginger syrup, tomato sauce, etc.;
Other items: electronic cigarette holders, electronic cigarettes, dental needles, tweezers, tattoo needles, etc.;
Feature of Thermoforming Bee Honey Liquid Ketchup Blister Packing Machine:
1. Traction drive by servo motor (traction by precision lead screw or rubber press roller), with precise synchronization. The
length of travel range can be set in man-machine interface.
2. Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.
3. Available for alu-plastic (hot forming) and alu-alu (cold forming), only change mould and feeder for alu-alu packing.
4. Various types of feeder solve the difficulty for irregular shape products packing.
5. Five stations forming, heat-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel
orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.
6. Newly mould orientation device speed up the mould changing requirement.
7. Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean.
8. Apply online detection and ejection system, and the camera detection system can be chosen for option.
Parameter of Thermoforming Bee Honey Liquid Ketchup Blister Packing Machine
| Item |
Blister Packing machine |
Air range |
0.6-0.8 Mpa |
| Model |
XQDPP-260 |
Air consumption |
≥0.8m3min |
| Speed |
20-40 Times/min |
Cooling type |
Air cooling or water cooling |
| Cutting size(L*W*H) |
160*260*26mm |
Noise level |
<65dB |
| Running distance |
30-120mm |
Size of the machine |
3500*760*1620mm |
| Power |
380V 50-60Hz 8.5Kw |
Weight |
1650Kg |

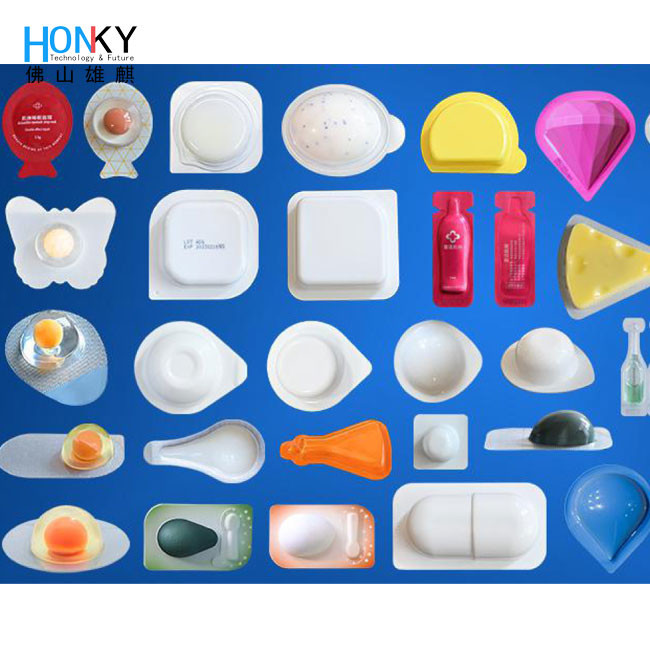

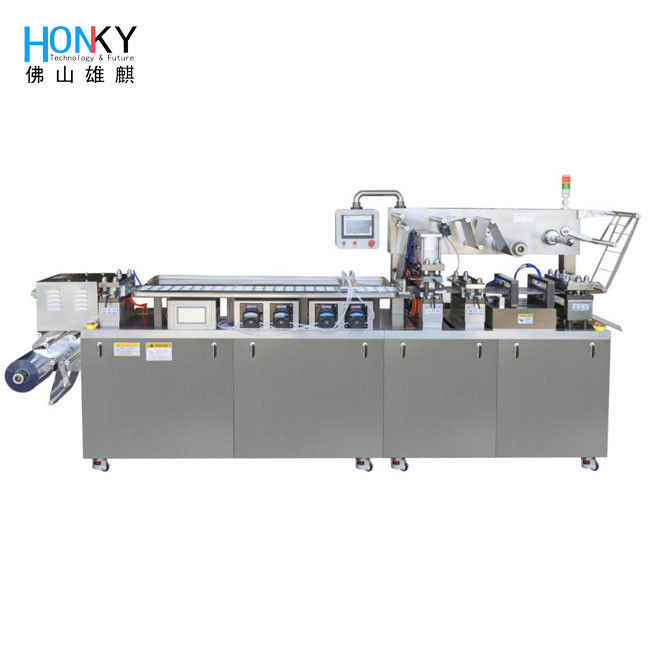

Product display of Thermoforming Bee Honey Liquid Ketchup Blister Packing Machine
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
