AuAutomatic Preformed Doy Quad Standup Stand Up Ziplock Pouch Gusset Bag Fill Seal Packing machinetomatic Preformed Doy Quad Standup Stand Up Ziplock Pouch Gusset Bag Fill Seal Packing machine
Bag-type packaging host
1. Simple operation: PLC control, man-machine interface;
2. Frequency conversion speed regulation: use frequency conversion adjustment device to adjust the speed at will within the specified range;
3. Ey to adjust the bag width: controlled by the motor, each set of machine clips can be adjusted synchronously with only one button;
4. Equipped with mixing device to prevent the precipitation of particle materials; With liquid control device, feeding signal is sent below a certain material level.
5. No bag or incomplete opening, no feeding; No bag or feeding, no sealing;
6. Alarm of door stop (optional); Colorless tape stop alarm; Insufficient air pressure, alarm prompt; Abnormal sealing temperature, alarm prompt;
7. 304 stainless steel or food-grade plastics are used in contact with materials, meeting the hygiene requirements.
Application
Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.
Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.
Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.
Parameter
| Model | XQBPK-8 | XQBPK-8S |
| Package size (L*W mm) | L:150-320 W:100-200 | L:250-260 W:120-380 |
| Filling range | 5-1000 g | 100-2000 g |
| Speed(Bag/min) | 20-55 | 10-45 |
| Package type | Four-side seal, three-side seal, stand-up pouch, tote bag, zipper bag, paper-plastic bag, etc |
| Material type | Liquid, granules, powder, irregular mass, oil mixing, etc. |

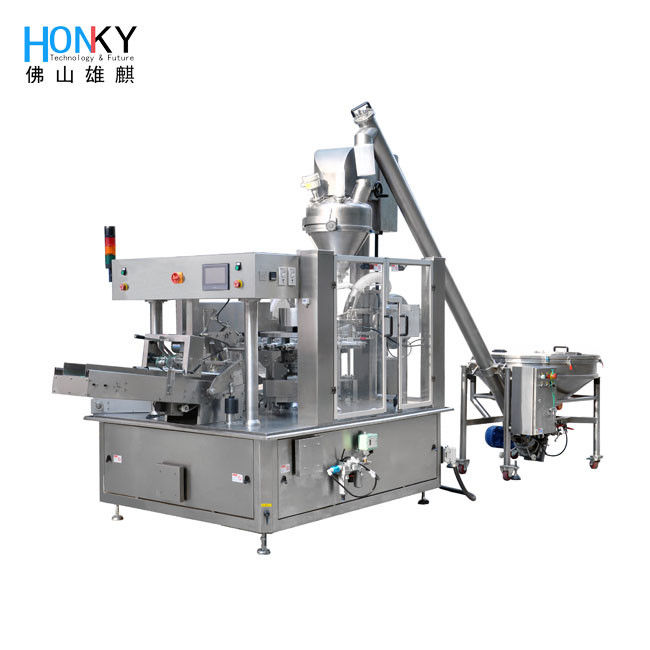

Product display
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
