| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQHFL-110 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 5500-6000 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 10 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per Month |
| Warranty: | 13 MONTHS | Type: | BAG Packing Machine |
|---|---|---|---|
| Packing Speed: | 40-230bag/mins | Power Supply: | AC 220V |
| Function: | Bag Packing | Weight: | 500Kg |
| Machine Size: | 3770x670x1450 | Bag Width: | 25-42mm/ 55-75mm/ 55-110mm |
| Products High: | Max.55mm | Bag Length: | 65-190mm/ 120-280mm/90-220mm/150-330mm |
| Film Width: | Max.250mm | ||
| Highlight: | Horizontal Biscuit Packing Machine,Pillow Type Biscuit Packing Machine |
||
PillPillow Type Horizontal Biscuit Packing Machine Cookies Chocolate Bar Pillow Packaging Machineow Type Horizontal Biscuit Packing Machine Cookies Chocolate Bar Pillow Packaging machine
Characteristic of Pillow Packaging machine
1. Three Servo control, automatically detect product length and cut, the operator needn't adjust the unloading working, saving time and saving films.
2. Human-machine operation, convenient and quick parameter setting.
3. Self-diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Technical data of Pillow Packaging machine
| Model | XQHFL-110 |
| Film Width | Max.250mm |
| Bag Length | 65-280mm |
| Bag Width | 30-110mm |
| Product Height | Max.45mm |
| Speed | 40-230 Bag/min |
| Power | 220V 50/60Hz 2.4KW |
| Machine Size | 3920*670*1320 mm |
| Weight | About 500 KG |

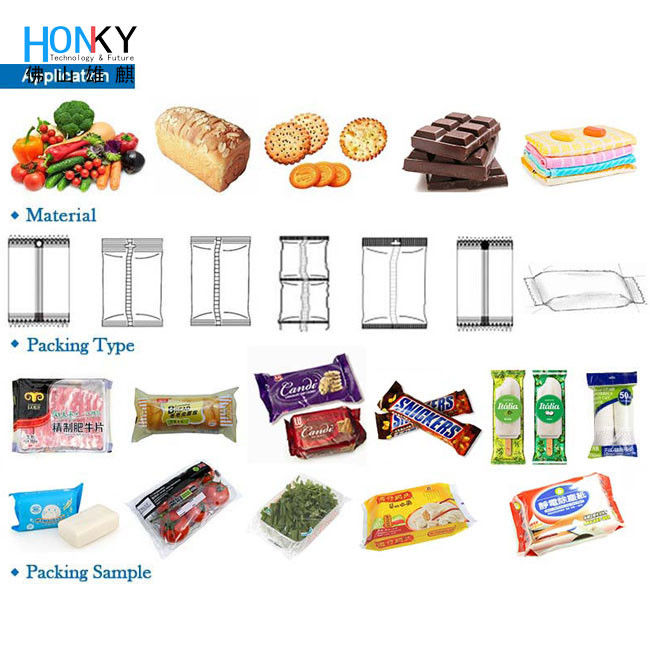

Product Application:
Can be applied to:food(snack bar,bread,cookies,ice lolly cake,chocolate,) Plastic(cutlery,tray,) hardware,Soap,sponge,tissue,card etc.
packaging various kinds of regular objects.

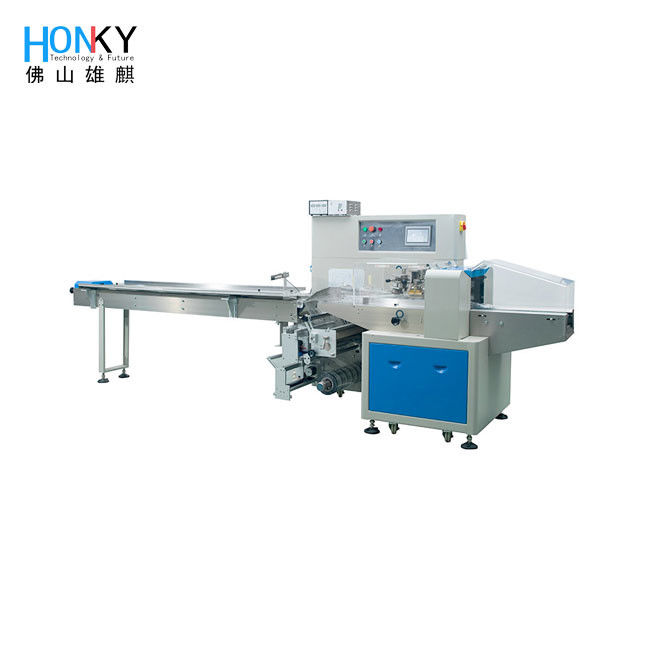

Product display of Pillow Packaging machine
Packing Service:
The wooden case is customized according to the dimension of the machine for the long time shipping and transfering.
Shipping a whole set of the machine:
1. Preparing and checking the toolbox wearing part and the manual book.
2. Cleaning the dust and the scrap after testing the machine with the air pump.
3. Apply rust-proof liquid.
4. Disassemble some certain part of the machine.
5. All the disassemble part, toolbox, main machine package by film
6. There will have screw fix the machine at the bottom of the wooden case
