Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQHFL-110 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 46000-47000 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per Month |
| Production Capacity: | 5-30 Bags/min | Dimension(L*W*H):: | L 1150 * W 1795 * H 1650mm |
|---|---|---|---|
| Packing Speed:: | 10-60 Bags Per Minute | Bag Size:: | W: 100-210mm L: 100-350mm |
| Weight (KG):: | 720KG | Packaging Type:: | Stand-up, Flat, Zipper Bag |
| Highlight: | Automatic Filling Packaging Machine,High Speed Filling Packaging Machine |
||

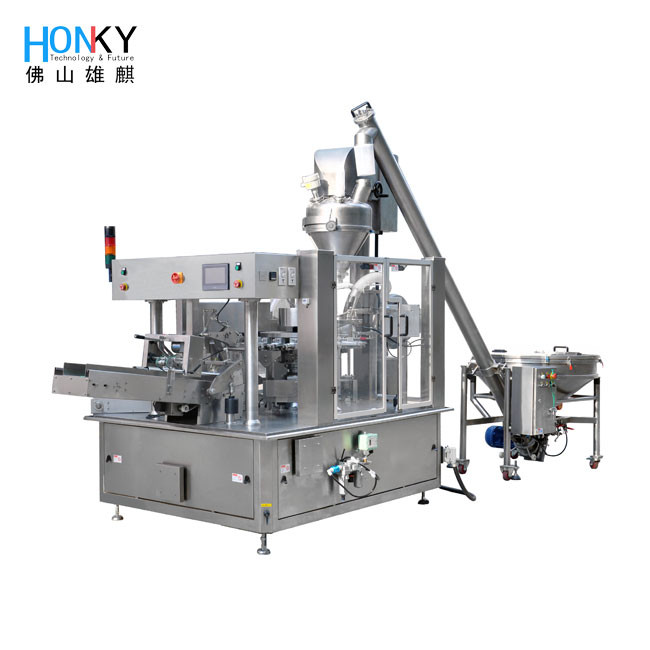

Premade Stand up Zipper Pouch Bag Filling Packaging Machine
Bag-type packaging host
The machine features a stainless steel 304 shell, ensuring compliance with food-grade requirements.
It is equipped with an automatic detection system that prevents filling and sealing if no pouch is present or if the pouch is not fully opened.
The horizontal infeed conveyor is designed for bags with zippers, capable of handling up to 300 pieces at a time.
The Zipper Opener System is controlled by a servo motor from Yaskawa, Japan, ensuring precise operation.
An independent temperature control system, provided by Omron, Japan, ensures precise temperature management.
The PLC system allows for quick adjustment of bag width clamping, with only a 2-minute setup time required for different bag sizes.
The automatic lubrication system, controlled by the PLC, automatically lubricates machine parts at set intervals, eliminating the need for manual lubrication.
The machine includes a ribbon-type date coder capable of printing 3 lines by 17 characters.
Safety features include a glass door alarm and air pressure abnormality detection.
The internal grooved cam design, utilizing high-precision technology, supports a maximum packing speed of 50 cycles per minute with stable operation.
A free oil vacuum pump is used to prevent environmental pollution during production.
Application
It applies to bag packaging of plane bags, zippered bags, and self-standing bags for food, medical purpose and daily use chemicals.
It can be used for power, particle, liquid, and liquid cream filling packaging.
Parameter
| Model | XQBPK-8 | XQBPK-8S |
| Package size (L*W mm) | L:150-320 W:100-200 | L:250-260 W:120-380 |
| Filling range | 5-1000 g | 100-2000 g |
| Speed(Bag/min) | 20-55 | 10-45 |
| Package type | Four-side seal, three-side seal, stand-up pouch, tote bag, zipper bag, paper-plastic bag, etc | |
| Material type | Liquid, granules, powder, irregular mass, oil mixing, etc. | |
Product display
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
