| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQDDP-260 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 46000-47000 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per Month |
| Warranty Period: | 1 Year | Machine Function: | Blister Packing Machine |
|---|---|---|---|
| Speed: | 40-50 Pcs Per Minute | Power Range: | AC 380V |
| Machine Weight: | 850 KG | ||
| Highlight: | PVC Blister Packing Machine,Chocolate Blister Packing Machine,Full Automatic Blister Packing Machine |
||
DPP Series Automatic Butter Cheese Jam Honey Paste Sauce Ketchup Chocolate Liquid Blister Packaging Machine
Application
Cosmetics: such as water bang bang cream, mud mask, hair mask, two-color egg mask, freeze-dried mask, shampoo, shower gel, lipstick, perfume, essence, gel, freeze-dried powder, etc.;
Medicines: pills, tablets, capsules, powders, etc.;
Food: mouthwash, chili sauce, tea, honey, ginger syrup, tomato sauce, etc.;
Other items: electronic cigarette holders, electronic cigarettes, dental needles, tweezers, tattoo needles, etc.;
Feature of Automatic Butter Cheese Jam Honey Paste Sauce Ketchup Chocolate Liquid Blister Packaging Machine:
1. Enter the length of the plate in the man-machine interface to realize the adjustable stroke, the mold positioning groove
positioning, the mold replacement is convenient, the photoelectric plate matching is accurate, and the encoder controls the positive pressure foam forming;
2. Human-machine interface, PLC programmable control, variable frequency stepless speed regulation.
3. Automatic blanking can design various molds and blanking devices according to user requirements.
4. Can choose tangent indentation, batch number, and waste recycling device.
5. Adopt servo motor traction, more stable.
6. The heat sealing mold will be automatically separated when the cylinder heat sealing is stopped, which will not burn the
package and prolong the service life of the machine.
Parameter of Automatic Butter Cheese Jam Honey Paste Sauce Ketchup Chocolate Liquid Blister Packaging Machine:
| Item | Blister Packing machine | Air range | 0.6-0.8 Mpa |
| Model | XQDPP-260 | Air consumption | ≥0.8m3min |
| Speed | 20-40 Times/min | Cooling type | Air cooling or water cooling |
| Cutting size(L*W*H) | 160*260*26mm | Noise level | <65dB |
| Running distance | 30-120mm | Size of the machine | 3500*760*1620mm |
| Power | 380V 50-60Hz 8.5Kw | Weight | 1650Kg |

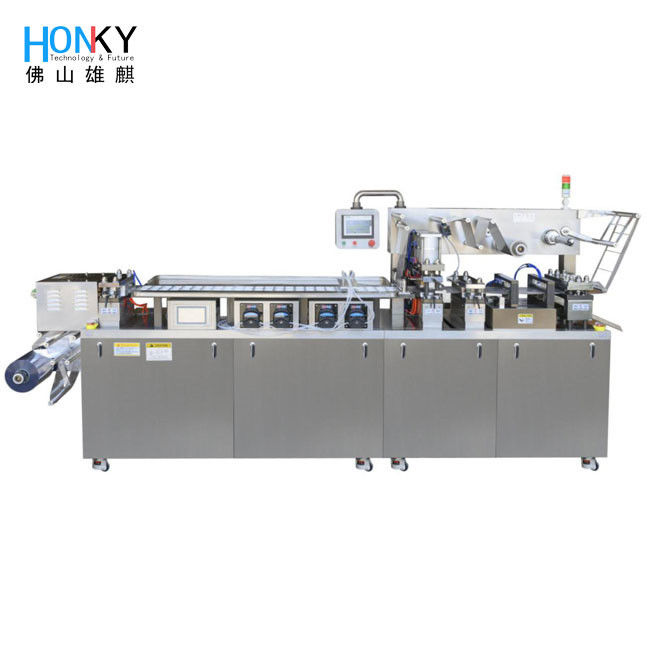

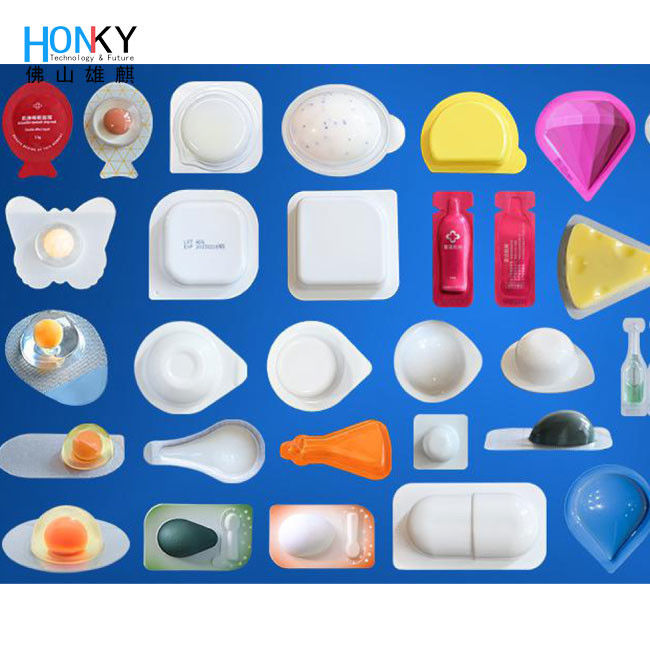

Product display of Automatic Butter Cheese Jam Honey Paste Sauce Ketchup Chocolate Liquid Blister Packaging Machine:
